- 71 -

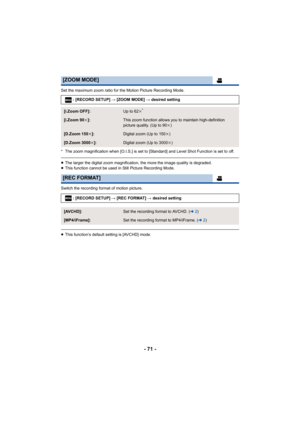

Set the maximum zoom ratio for the Motion Picture Recording Mode.
* The zoom magnification when [O.I.S.] is set to [Standard] and  Level Shot Function is set to off.
≥The larger the digital zoom magnification, the more the image q uality is degraded.
≥ This function cannot be used in Still Picture Recording Mode.
Switch the recording format of motion picture.
≥ This function’s default setting is [AVCHD] mode.
[ZOOM MODE]
: [RECORD SETUP]  # [ZOOM MODE] # desired setting
[i.Zoom OFF]:Up to 62 k*...

- 72 -

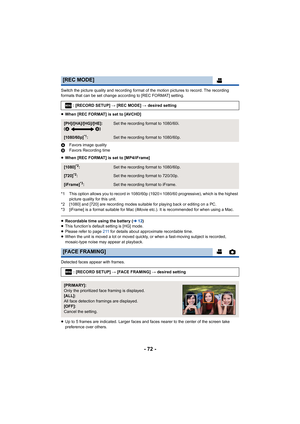

Switch the picture quality and recording format of the motion pictures to record. The recording
formats that can be set change according to [REC FORMAT] setting.
≥ When [REC FORMAT] is set to [AVCHD]
A Favors image quality
B Favors Recording time
≥ When [REC FORMAT] is set to [MP4/iFrame]
*1 This option allows you to record in 1080/60p (1920 k1080/60 progressive), which is the highest
picture quality for this unit.
*2 [1080] and [720] are recording modes suitable for playing bac k or editing on...

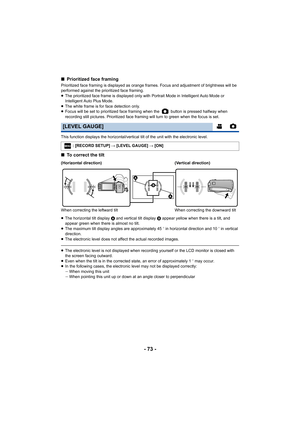

- 73 -
∫Prioritized face framing
Prioritized face framing is displayed as orange frames. Focus a nd adjustment of brightness will be
performed against the prioritized face framing.
≥ The prioritized face frame is displayed only with Portrait Mode in Intelligent Auto Mode or
Intelligent Auto Plus Mode.
≥ The white frame is for face detection only.
≥ Focus will be set to prioritized face framing when the   button  is pressed halfway when
recording still pictures. Prioritized face framing will turn to...

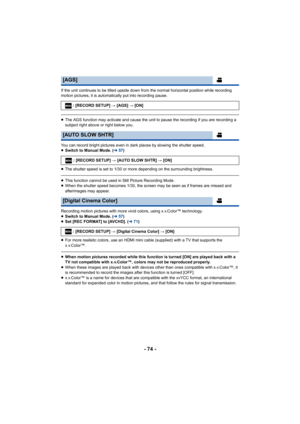

- 74 -
If the unit continues to be tilted upside down from the normal horizontal position while recording
motion pictures, it is automatically put into recording pause.
≥ The AGS function may activate and cause the unit to pause the r ecording if you are recording a
subject right above or right below you.
You can record bright pictures even in dark places by slowing t he shutter speed.
≥ Switch to Manual Mode. ( l57)
≥ The shutter speed is set to 1/30 or more depending on the surro unding brightness....

- 75 -

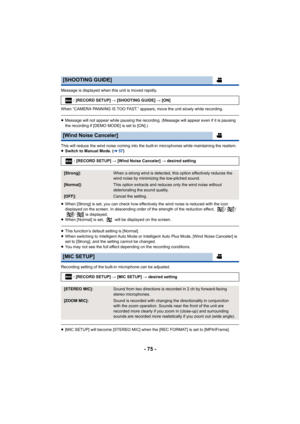

Message is displayed when this unit is moved rapidly.
When “CAMERA PANNING IS TOO FAST.” appears, move the unit slowly while recording.
≥Message will not appear while pausing the recording. (Message will appear even if it is pausing
the recording if [DEMO MODE] is set to [ON].)
This will reduce the wind noise coming into the built-in microp hones while maintaining the realism.
≥ Switch to Manual Mode. ( l57)
≥ When [Strong] is set, you can check how effectively the wind no ise is reduced with the...

- 76 -

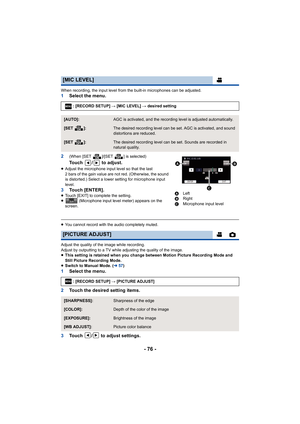

When recording, the input level from the built-in microphones can be adjusted.1Select the menu.
2
(When [SET  ]/[SET  ] is selected)
Touch  /  to adjust.
≥ Adjust the microphone input level so that the last
2 bars of the gain value are not red. (Otherwise, the sound
is distorted.) Select a lower setting for microphone input
level.
3 Touch [ENTER].≥Touch [EXIT] to complete the setting.
≥  (Microphone input level meter) appears on the
screen.
≥ You cannot record with the audio completely muted....

- 77 -

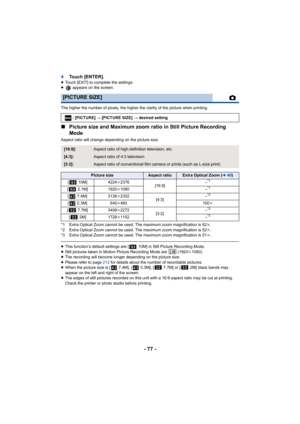

4Touch [ENTER].≥Touch [EXIT] to complete the settings.
≥  appears on the screen.
The higher the number of pixels, the higher the clarity of the  picture when printing.
∫Picture size and Maximum zoom ratio in Still Picture Recording
Mode
Aspect ratio will change depending on the picture size.
*1 Extra Optical Zoom cannot be used. The maximum zoom magnifica tion is 62k.
*2 Extra Optical Zoom cannot be used. The maximum zoom magnifica tion is 52k.
*3 Extra Optical Zoom cannot be used. The maximum...

- 78 -

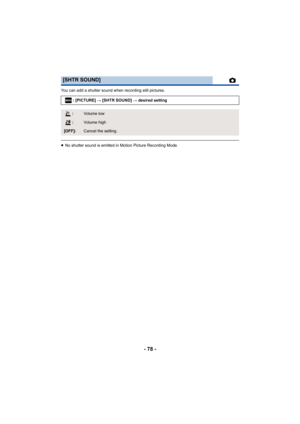

You can add a shutter sound when recording still pictures.
≥No shutter sound is emitted in Motion Picture Recording Mode.
[SHTR SOUND]
: [PICTURE]  # [SHTR SOUND]  # desired setting
:Volum e  lo w
:Volume high
[OFF]:Cancel the setting.
MENU

- 79 -

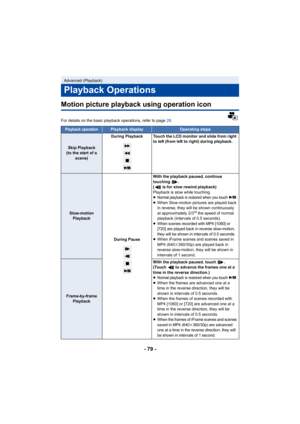

Motion picture playback using operation icon
For details on the basic playback operations, refer to page 26.
Advanced (Playback)
Playback Operations
Playback operationPlayback displayOperating steps
Skip Playback
(to the start of a  scene) During Playback Touch the LCD monitor and slide from right
to left (from left to right) during playback.
Slow-motion Playback
During PauseWith the playback paused, continue
touching  .
(  is for slow rewind playback)
Playback is slow while touching.
≥
Normal...

- 80 -

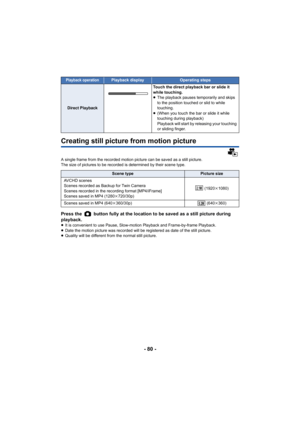

Creating still picture from motion picture
A single frame from the recorded motion picture can be saved as a still picture.
The size of pictures to be reco rded is determined by their scen e type.
Press the   button fully at the location to be saved as a still  picture during
playback.
≥ It is convenient to use Pause, Slow-motion Playback and Frame-b y-frame Playback.
≥ Date the motion picture was recorded will be registered as date  of the still picture.
≥ Quality will be different from the...
