- 81 -

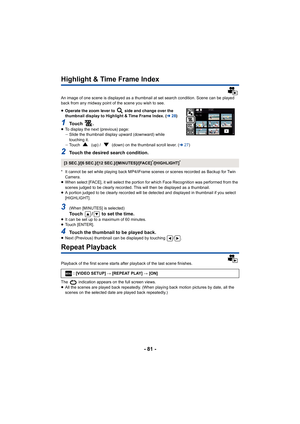

Highlight & Time Frame Index
An image of one scene is displayed as a thumbnail at set search condition. Scene can be played
back from any midway point of the scene you wish to see.
≥ Operate the zoom lever to   side and change over the
thumbnail display to Highlight & Time Frame Index. ( l28)
1To u c h   .≥To display the next (previous) page:
jSlide the thumbnail display upward (downward) while
touching it.
j Touch   (up) /   (down) on the thumbnail scroll lever. ( l27)
2Touch the desired...

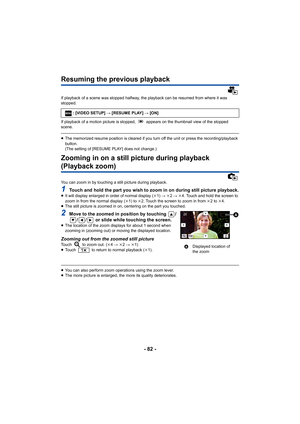

- 82 -
Resuming the previous playback
If playback of a scene was stopped halfway, the playback can be resumed from where it was
stopped.
If playback of a motion picture is stopped,   appears on the thu mbnail view of the stopped
scene.
≥ The memorized resume position is cleared if you turn off the un it or press the recording/playback
button.
(The setting of [RESUME PLAY] does not change.)
Zooming in on a still picture during playback
(Playback zoom)
You can zoom in by touching a still picture during...

- 83 -

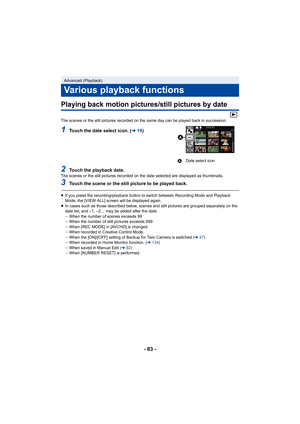

Playing back motion pictures/still pictures by date
The scenes or the still pictures recorded on the same day can be played back in succession.
1Touch the date select icon. (l19)
2Touch the playback date.The scenes or the still pictures recorded on the date selected  are displayed as thumbnails.
3Touch the scene or the still picture to be played back.
≥If you press the recording/playback button to switch between Re cording Mode and Playback
Mode, the [VIEW ALL] screen will be displayed again.
≥...

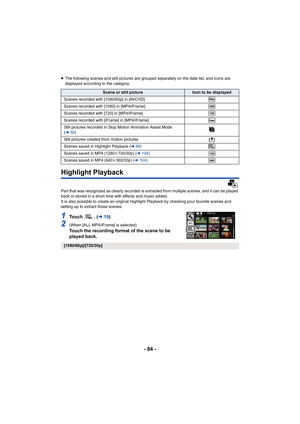

- 84 -
≥The following scenes and still pictures are grouped separately  on the date list, and icons are
displayed according to the category:
Highlight Playback
Part that was recognized as clearly recorded is extracted from multiple scenes, and it can be played
back or stored in a short time with effects and music added.
It is also possible to create an original Highlight Playback by  checking your favorite scenes and
setting up to extract those scenes.
1To u c h   .   ( l19)
2(When [ALL MP4/iFrame] is...

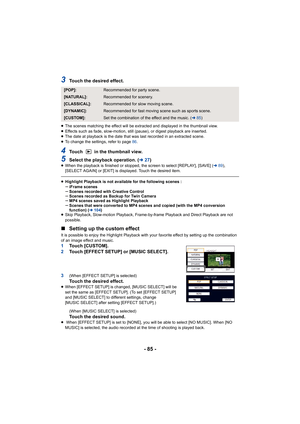

- 85 -
3Touch the desired effect.
≥The scenes matching the effect will be extracted and displayed  in the thumbnail view.
≥ Effects such as fade, slow-motion, still (pause), or digest pla yback are inserted.
≥ The date at playback is the date that was last recorded in an e xtracted scene.
≥ To change the settings, refer to page  86.
4Touch   in the thumbnail view.
5Select the playback operation. ( l27)≥When the playback is finished or stopped, the screen to select  [REPLAY], [SAVE] (l89),
[SELECT AGAIN]...

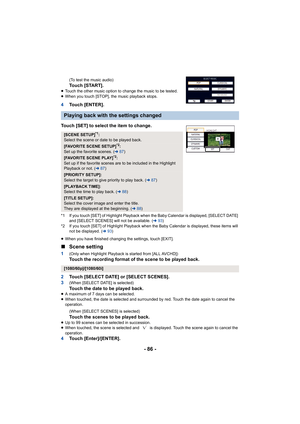

- 86 -
(To test the music audio)Touch [START].≥Touch the other music option to change the music to be tested.
≥ When you touch [STOP], the music playback stops.
4 Touch [ENTER].
Touch [SET] to select the item to change.
*1 If you touch [SET] of Highlight Playback when the Baby Calend ar is displayed, [SELECT DATE]
and [SELECT SCENES] will not be available. ( l93)
*2 If you touch [SET] of Highlight Playback when the Baby Calend ar is displayed, these items will
not be displayed. ( l93)
≥ When you have...

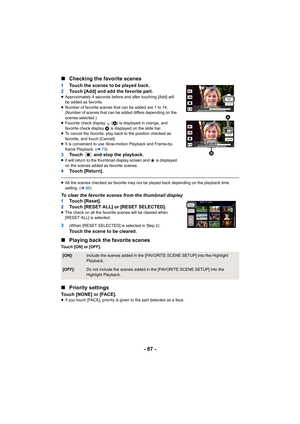

- 87 -
∫
Checking the favorite scenes
1 Touch the scenes to be played back.
2 Touch [Add] and add the favorite part.
≥Approximately 4 seconds before and after touching [Add] will
be added as favorite.
≥ Number of favorite scenes that can be added are 1 to 14.
(Number of scenes that can be added differs depending on the
scenes selected.)
≥ Favorite check display  ( A) is displayed in orange, and
favorite check display  B is displayed on the slide bar.
≥ To cancel the favorite, play back to the...

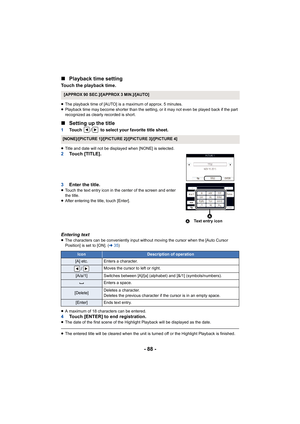

- 88 -
∫
Playback time setting
Touch the playback time.
≥The playback time of [AUTO] is a maximum of approx. 5 minutes.
≥ Playback time may become shorter than the setting, or it may not even be played back if the part
recognized as clearly recorded is short.
∫ Setting up the title
1 Touch  /  to select your favorite title sheet.
≥Title and date will not be displayed when [NONE] is selected.2 Touch [TITLE].
3 Enter the title.
≥Touch the text entry icon in the center of the screen and enter
the title....

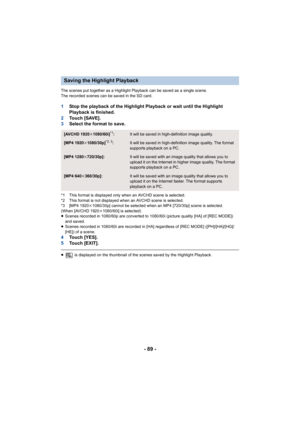

- 89 -
The scenes put together as a Highlight Playback can be saved as a single scene.
The recorded scenes can be saved in the SD card.
1 Stop the playback of the Highlight Playback or wait until the H ighlight
Playback is finished.
2 To u c h   [ S AV E ] .
3 Select the format to save.
*1 This format is displayed only when an AVCHD scene is selected .
*2 This format is not displayed when an AVCHD scene is selected.
*3 [MP4 1920 k1080/30p] cannot be selected when an MP4 [720/30p] scene is sel ected....

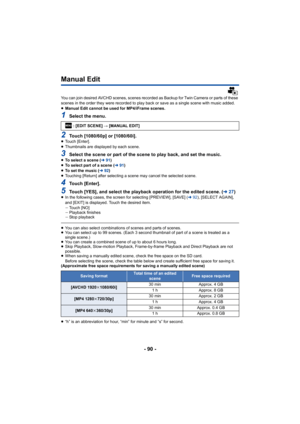

- 90 -
Manual Edit
You can join desired AVCHD scenes, scenes recorded as Backup for Twin Camera or parts of these
scenes in the order they were recorded to play back or save as  a single scene with music added.
≥ Manual Edit cannot be used for MP4/iFrame scenes.
1Select the menu.
2Touch [1080/60p] or [1080/60i].≥Touch [Enter].
≥ Thumbnails are displayed by each scene.
3Select the scene or part of the scene to play back, and set the  music.≥To select a scene ( l91)
≥ To select part of a scene ( l91)
≥ To...
