Panasonic Hdc Hs100 Operating Instructions

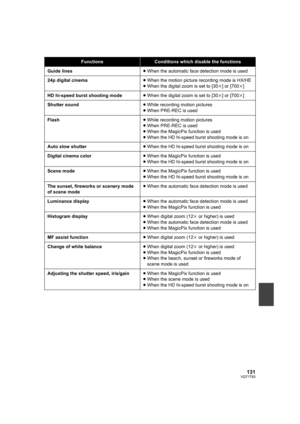

131VQT1T93
FunctionsConditions which disable the functions
Guide lines≥When the automatic face detection mode is used
24p digital cinema≥When the motion picture recording mode is HX/HE
≥When the digital zoom is set to [30k] or [700k]
HD hi-speed burst shooting mode≥When the digital zoom is set to [30k] or [700k]
Shutter sound≥While recording motion pictures
≥When PRE-REC is used
Flash≥While recording motion pictures
≥When PRE-REC is used
≥When the MagicPix function is used
≥When the HD hi-speed burst...

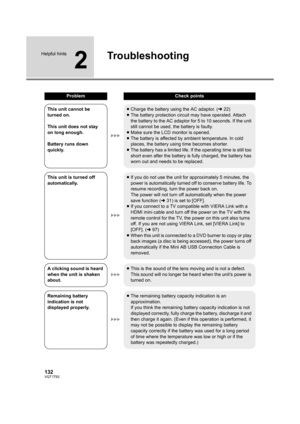

132VQT1T93
Helpful hints
2
Troubleshooting
ProblemCheck points
This unit cannot be
turned on.
This unit does not stay
on long enough.
Battery runs down
quickly.≥Charge the battery using the AC adaptor. (l22)
≥The battery protection circuit may have operated. Attach
the battery to the AC adaptor for 5 to 10 seconds. If the unit
still cannot be used, the battery is faulty.
≥Make sure the LCD monitor is opened.
≥The battery is affected by ambient temperature. In cold
places, the battery using time...

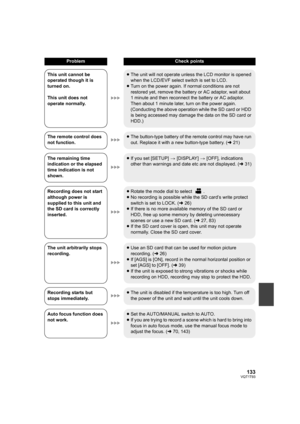

133VQT1T93
ProblemCheck points
This unit cannot be
operated though it is
turned on.
This unit does not
operate normally.≥The unit will not operate unless the LCD monitor is opened
when the LCD/EVF select switch is set to LCD.
≥Turn on the power again. If normal conditions are not
restored yet, remove the battery or AC adaptor, wait about
1 minute and then reconnect the battery or AC adaptor.
Then about 1 minute later, turn on the power again.
(Conducting the above operation while the SD card or...

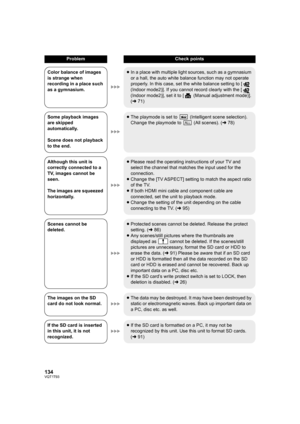

134VQT1T93
Color balance of images
is strange when
recording in a place such
as a gymnasium.≥In a place with multiple light sources, such as a gymnasium
or a hall, the auto white balance function may not operate
properly. In this case, set the white balance setting to [
(Indoor mode2)]. If you cannot record clearly with the [
(Indoor mode2)], set it to [  (Manual adjustment mode)].
(l71)
Some playback images
are skipped
automatically.
Scene does not playback
to the end.≥The playmode is set...

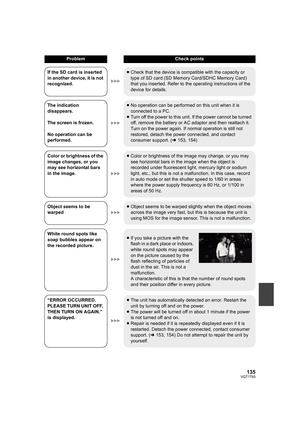

135VQT1T93
If the SD card is inserted
in another device, it is not
recognized.≥Check that the device is compatible with the capacity or
type of SD card (SD Memory Card/SDHC Memory Card)
that you inserted. Refer to the operating instructions of the
device for details.
The indication
disappears.
The screen is frozen.
No operation can be
performed.≥No operation can be performed on this unit when it is
connected to a PC.
≥Turn off the power to this unit. If the power cannot be turned
off, remove the...

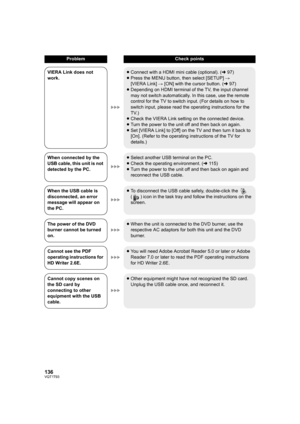

136VQT1T93
VIERA Link does not
work.≥Connect with a HDMI mini cable (optional). (l97)
≥Press the MENU button, then select [SETUP] #
[VIERA Link] # [ON] with the cursor button. (l97)
≥Depending on HDMI terminal of the TV, the input channel
may not switch automatically. In this case, use the remote
control for the TV to switch input. (For details on how to
switch input, please read the operating instructions for the
TV.)
≥Check the VIERA Link setting on the connected device.
≥Turn the power to the...

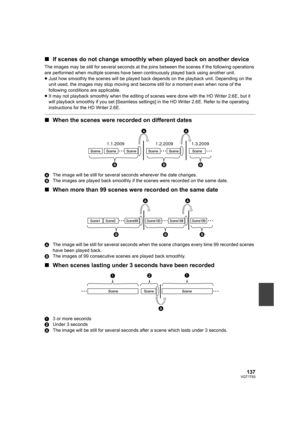

137VQT1T93
∫If scenes do not change smoothly when played back on another device
The images may be still for several seconds at the joins between the scenes if the following operations
are performed when multiple scenes have been continuously played back using another unit.
≥Just how smoothly the scenes will be played back depends on the playback unit. Depending on the
unit used, the images may stop moving and become still for a moment even when none of the
following conditions are applicable.
≥It may...

138VQT1T93
∫When PRE-REC was used for recording
1Normal recording
2PRE-REC recording
AThe picture momentarily stops at the end of the last scene that was recorded normally before PRE-
REC recording.
∫When the recording mode was changed from HA/HG/HX to HE or from HE
to HA/HG/HX
AThe picture momentarily stops where the scenes switch between HA/HG/HX and HE modes.
BPlayback is smooth if the same mode is used or the mode is switched among HA, HG and HX.
∫When the setting of the 24p digital cinema is turned...

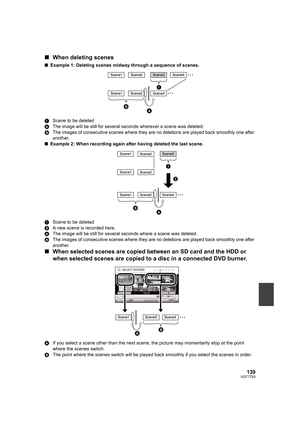

139VQT1T93
∫When deleting scenes
∫Example 1: Deleting scenes midway through a sequence of scenes.
1Scene to be deleted
AThe image will be still for several seconds wherever a scene was deleted.
BThe images of consecutive scenes where they are no deletions are played back smoothly one after
another.
∫Example 2: When recording again after having deleted the last scene.
1Scene to be deleted
2A new scene is recorded here.
AThe image will be still for several seconds where a scene was deleted.
BThe images of...

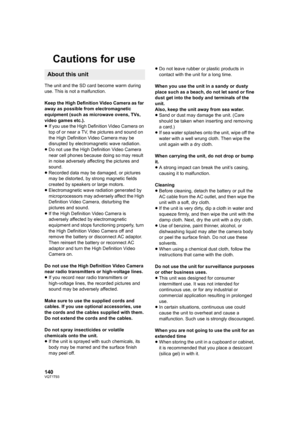

140VQT1T93
Cautions for use
The unit and the SD card become warm during
use. This is not a malfunction.
Keep the High Definition Video Camera as far
away as possible from electromagnetic
equipment (such as microwave ovens, TVs,
video games etc.).
≥If you use the High Definition Video Camera on
top of or near a TV, the pictures and sound on
the High Definition Video Camera may be
disrupted by electromagnetic wave radiation.
≥Do not use the High Definition Video Camera
near cell phones because...
