Panasonic Hdc Hs100 Operating Instructions

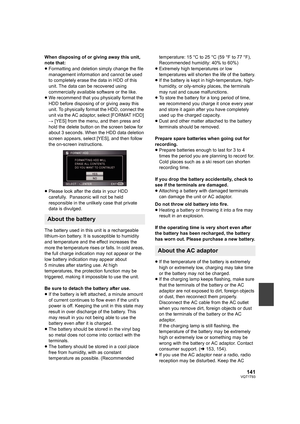

141VQT1T93
When disposing of or giving away this unit,
note that:
≥Formatting and deletion simply change the file
management information and cannot be used
to completely erase the data in HDD of this
unit. The data can be recovered using
commercially available software or the like.
≥We recommend that you physically format the
HDD before disposing of or giving away this
unit. To physically format the HDD, connect the
unit via the AC adaptor, select [FORMAT HDD]
# [YES] from the menu, and then...

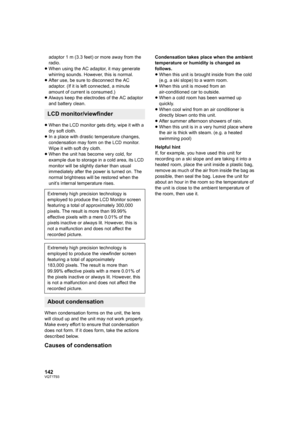

142VQT1T93
adaptor 1 m (3.3 feet) or more away from the
radio.
≥When using the AC adaptor, it may generate
whirring sounds. However, this is normal.
≥After use, be sure to disconnect the AC
adaptor. (If it is left connected, a minute
amount of current is consumed.)
≥Always keep the electrodes of the AC adaptor
and battery clean.
≥When the LCD monitor gets dirty, wipe it with a
dry soft cloth.
≥In a place with drastic temperature changes,
condensation may form on the LCD monitor.
Wipe it with soft...

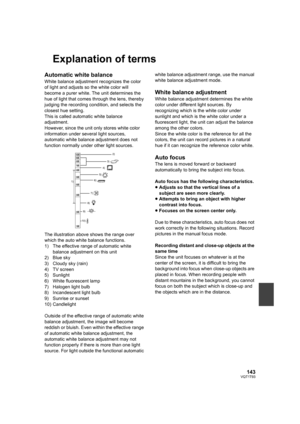

143VQT1T93
Explanation of terms
Automatic white balance
White balance adjustment recognizes the color
of light and adjusts so the white color will
become a purer white. The unit determines the
hue of light that comes through the lens, thereby
judging the recording condition, and selects the
closest hue setting.
This is called automatic white balance
adjustment.
However, since the unit only stores white color
information under several light sources,
automatic white balance adjustment does not...

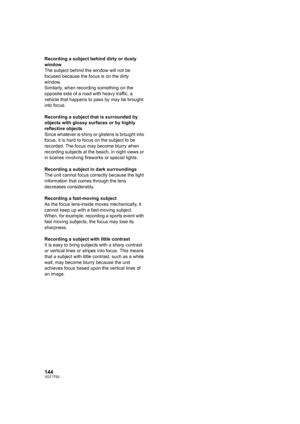

144VQT1T93
Recording a subject behind dirty or dusty
window
The subject behind the window will not be
focused because the focus is on the dirty
window.
Similarly, when recording something on the
opposite side of a road with heavy traffic, a
vehicle that happens to pass by may be brought
into focus.
Recording a subject that is surrounded by
objects with glossy surfaces or by highly
reflective objects
Since whatever is shiny or glistens is brought into
focus, it is hard to focus on the subject to...

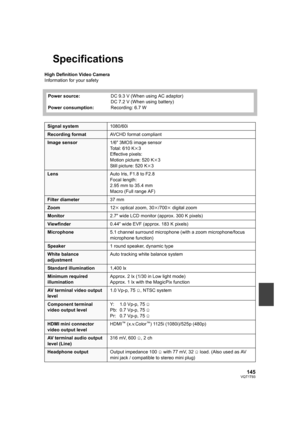

145VQT1T93
Specifications
High Definition Video Camera
Information for your safety
Power source:
Power consumption:DC 9.3 V (When using AC adaptor)
DC 7.2 V (When using battery)
Recording: 6.7 W
Signal system1080/60i
Recording formatAVCHD format compliant
Image sensor1/6z 3MOS image sensor
Total: 610 Kk3
Effective pixels:
Motion picture: 520 Kk3
Still picture: 520 Kk3
LensAuto Iris, F1.8 to F2.8
Focal length:
2.95 mm to 35.4 mm
Macro (Full range AF)
Filter diameter37 mm
Zoom12k optical zoom, 30k/700k...

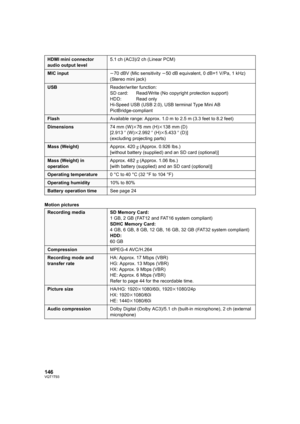

146VQT1T93
Motion pictures
HDMI mini connector
audio output level5.1 ch (AC3)/2 ch (Linear PCM)
MIC inputj70 dBV (Mic sensitivity j50 dB equivalent, 0 dB=1 V/Pa, 1 kHz)
(Stereo mini jack)
USBReader/writer function:
SD card:  Read/Write (No copyright protection support)
HDD:  Read only
Hi-Speed USB (USB 2.0), USB terminal Type Mini AB
PictBridge-compliant
FlashAvailable range: Approx. 1.0 m to 2.5 m (3.3 feet to 8.2 feet)
Dimensions74 mm (W)k76 mm (H)k138 mm (D)
[2.913q (W)k2.992q (H)k5.433q (D)]...

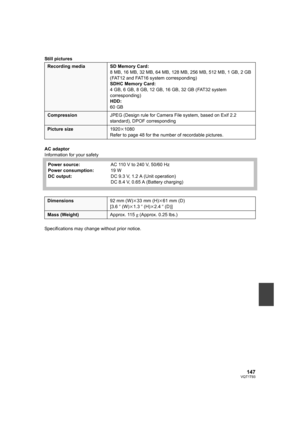

147VQT1T93
Still pictures
AC adaptor
Information for your safety
Specifications may change without prior notice.
Recording media SD Memory Card:
8 MB, 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB
(FAT12 and FAT16 system corresponding)
SDHC Memory Card:
4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB (FAT32 system
corresponding)
HDD:
60 GB
CompressionJPEG (Design rule for Camera File system, based on Exif 2.2
standard), DPOF corresponding
Picture size1920k1080
Refer to page 48 for the number of...

148VQT1T93

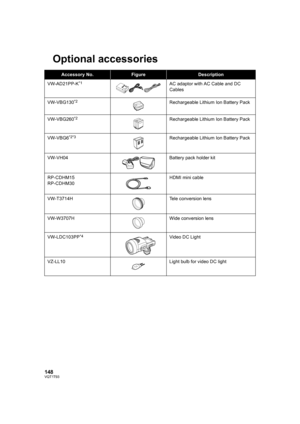

Optional accessories
Accessory No.FigureDescription
VW-AD21PP-K
*1AC adaptor with AC Cable and DC
Cables
VW-VBG130
*2Rechargeable Lithium Ion Battery Pack
VW-VBG260
*2Rechargeable Lithium Ion Battery Pack
VW-VBG6
*2*3Rechargeable Lithium Ion Battery Pack
VW-VH04 Battery pack holder kit
RP-CDHM15
RP-CDHM30HDMI mini cable
VW-T3714H Tele conversion lens
VW-W3707H Wide conversion lens
VW-LDC103PP
*4Video DC Light
VZ-LL10 Light bulb for video DC light
HDCHS100P-VQT1T93_ENG.book  148 ページ...

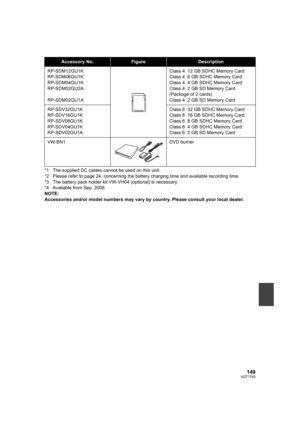

149VQT1T93
*1 The supplied DC cables cannot be used on this unit.
*2 Please refer to page 24, concerning the battery charging time and available recording time.
*3 The battery pack holder kit VW-VH04 (optional) is necessary.
*4 Available from Sep. 2008
NOTE:
Accessories and/or model numbers may vary by country. Please consult your local dealer.
Accessory No.FigureDescription
RP-SDM12GU1K
RP-SDM06GU1K
RP-SDM04GU1K
RP-SDM02GU2A
RP-SDM02GU1AClass 4 12 GB SDHC Memory Card
Class 4 6 GB SDHC Memory Card
Class...

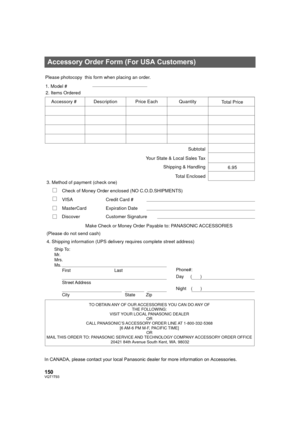

150VQT1T93
In CANADA, please contact your local Panasonic dealer for more information on Accessories.
Accessory Order Form (For USA Customers)
TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-6 PM M-F, PACIFIC TIME]
OR
MAIL THIS ORDER TO:
PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms.
First Last
Street...
