Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

11

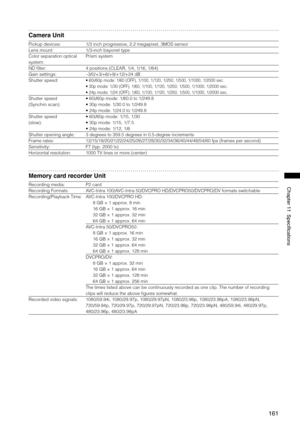

Chapter11Specifications
Camera Unit
Pickup devices:1/3 inch progressive, 2.2 megapixel, 3MOS sensor
Lens mount:1/3-inch bayonet type
Color separation optical
system:
Prism system
ND filter:4 positions (CLEAR, 1/4, 1/16, 1/64)
Gain settings:–3/0/+3/+6/+9/+12/+24 dB
Shutter speed:•  60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 s\
ec.
•  30p mode: 1/30 (OFF), 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000\
 sec.
•  24p mode: 1/24 (OFF), 1/60, 1/100, 1/120,...

1
Chapter11Specifications

Digital video Unit
Sampling Frequency:AVC-Intra 100/DVCPRO HD:
Y: 74.1758 MHz, PB/PR: 37.0879 MHz
DVCPRO50:
Y: 13.5 MHz, PB/PR: 6.75 MHz
DVCPRO:
Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing:AVC-Intra 100/AVC-Intra 50: 10bits
DVCPRO HD/DVCPRO50/DVCPRO/DV: 8bits
Video Compression Format:AVC-Intra 100/AVC-Intra 50:
MPEG-4 AVC/H.264 Intra Profile
DVCPRO HD:
DV-Based Compression (SMPTE 370M)
DVCPRO50/DVCPRO:
DV-Based Compression (SMPTE 314M)
DV:
DV...

1

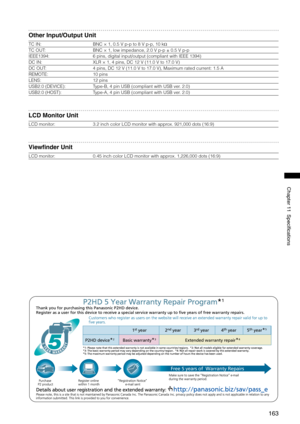

Chapter11Specifications

Other Input/Output Unit
TC IN:BNC × 1, 0.5 V p-p to 8 V p-p, 10 kΩ
TC OUT:BNC × 1, low impedance, 2.0 V p-p ± 0.5 V p-p
IEEE1394:6 pins, digital input/output (compliant with IEEE 1394)
DC IN:XLR × 1, 4 pins, DC 12 V (11.0 V to 17.0 V)
DC OUT:4 pins, DC 12 V (11.0 V to 17.0 V), Maximum rated current: 1.5 A
REMOTE:10 pins
LENS:12 pins
USB2.0 (DEVICE):Type-B, 4 pin USB (compliant with USB ver. 2.0)
USB2.0 (HOST):Type-A, 4 pin USB (compliant with USB ver. 2.0)...

1
Chapter11Specifications

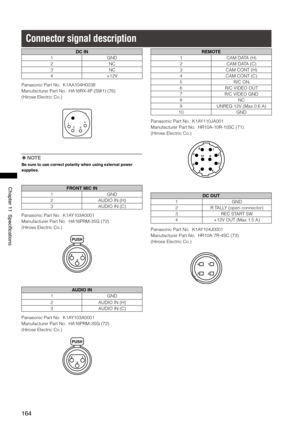

Connector signal description
DC IN
1GND
2NC
3NC
4+12V
Panasonic Part No.  K1AA104H0038
Manufacturer Part No.  HA16RX-4P (SW1) (76)
(Hirose Electric Co.)
123
4
 NOTE
Be sure to use correct polarity when using external power
supplies.
FRONT MIC IN
1GND
2AUDIO IN (H)
3AUDIO IN (C)
Panasonic Part No.  K1AY103A0001
Manufacturer Part No.  HA16PRM-35G (72)
(Hirose Electric Co.)
PUSH
1
3
2
AUDIO IN
1GND
2AUDIO IN (H)
3AUDIO IN (C)
Panasonic Part No....

1
Chapter11Specifications

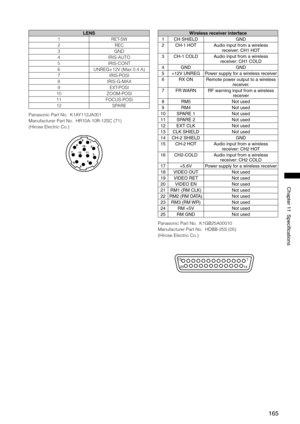

LENS
1RET-SW
2REC
3GND
4IRIS-AUTO
5IRIS-CONT
6UNREG+12V (Max 0.4 A)
7IRIS-POSI
8IRIS-G-MAX
9EXT-POSI
10ZOOM-POSI
11FOCUS-POSI
12SPARE
Panasonic Part No.  K1AY112JA001
Manufacturer Part No.  HR10A-10R-12SC (71)
(Hirose Electric Co.)
12
4
56
7
89
10
11123
Wireless receiver interface
1CHSHIELDGND
CH-1HOTAudioinputfromawirelessreceiver:CH1HOT...
