Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

11
ChapterMenuOperations

ItemSettingNotes
25M REC CH SELSelects the audio channels to be recorded in the
DVCPRO and DV formats.
2CH: Only recorded on CH1 and CH2.
4CH: Records on all four channels.
•  Not available in the following
conditions.
-  When SYSTEM MODE is 1080i-59.94i
or 720-59.94P.
-  Available only when SYSTEM
MODE is set to 480-59.94i and REC
FORMAT is set to the DVCPRO50
codec.
-  REC SIGNAL is set to 1394
(operation depends on 1394 input
status)....

1
ChapterMenuOperations

OUTPUT SEL screen
ItemSettingNotes

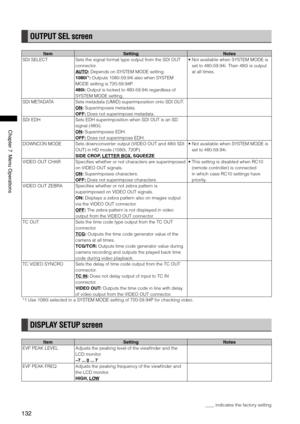

SDI SELECTSets the signal format type output from the SDI OUT
connector.
AUTO: Depends on SYSTEM MODE setting.
1080i*1: Outputs 1080-59.94i also when SYSTEM
MODE setting is 720-59.94P.
480i: Output is locked to 480-59.94i regardless of
SYSTEM MODE setting.
•  Not available when SYSTEM MODE is
set to 480-59.94i. Then 480i is output
at all times.
SDI METADATASets metadata (UMID) superimposition onto SDI...

1
ChapterMenuOperations

ItemSettingNotes
EVF SETTINGAdjusts viewfinder brightness and contrast on a
subscreen.
(Subscreen)
EVF BRIGHTNESS
EVF CONTRAST
EVF B.LIGHTAdjusts viewfinder backlight brightness.
HIGH, NORMAL, LOW
EVF COLORSelects whether the viewfinder image will be displayed
in color or monochrome.
ON: Color display
OFF: Monochrome display
ZEBRA1 DETECTSets the level of the right-leaning zebra pattern 1.
50% ... 70% ... 109%
ZEBRA2 DETECTSets the level of the...

1
ChapterMenuOperations

ItemSettingNotes

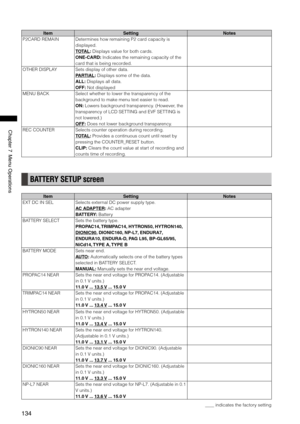

P2CARD REMAINDetermines how remaining P2 card capacity is
displayed.
TOTAL: Displays value for both cards.
ONE-CARD: Indicates the remaining capacity of the
card that is being recorded.
OTHER DISPLAYSets display of other data.
PARTIAL: Displays some of the data.
ALL: Displays all data.
OFF: Not displayed
MENU BACKSelect whether to lower the transparency of the
background to make menu text easier to read.
ON: Lowers...

1
ChapterMenuOperations

ItemSettingNotes
ENDURA7 NEARSets the near end voltage for ENDURA7. (Adjustable
in 0.1 V units.)
11.0 V ... 13.4 V ... 15.0 V
ENDURA10 NEARSets the near end voltage for ENDURA10. (Adjustable
in 0.1 V units.)
11.0 V ... 13.4 V ... 15.0 V
ENDURA-D NEARSets the near end voltage for ENDURA-D. (Adjustable
in 0.1 V units.)
11.0 V ... 13.4 V ... 15.0 V
PAG L95 NEARSets the near end voltage for  PAG L95. (Adjustable in
0.1 V units.)
11.0 V ... 13.8 V...

1
ChapterMenuOperations

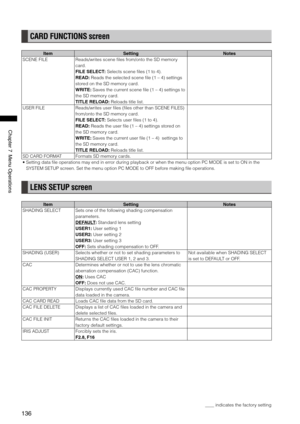

CARD FUNCTIONS screen
ItemSettingNotes
SCENE FILEReads/writes scene files from/onto the SD memory
card.
FILE SELECT: Selects scene files (1 to 4).
READ: Reads the selected scene file (1 – 4) settings
stored on the SD memory card.
WRITE: Saves the current scene file (1 – 4) settings to
the SD memory card.
TITLE RELOAD: Reloads title list.
USER FILEReads/writes user files (files other than SCENE FILES)
from/onto the SD memory card.
FILE...

1
ChapterMenuOperations

OTHER FUNCTIONS screen
ItemSettingNotes
USER FILESaves user files to camera memory, loads them into
camera memory or initializes them. (For details, refer
to page 80.)
LOAD, SAVE, INITIAL
•  This does not affect options in the SCENE FILE
screen.
•  Not available when PC MODE SELECT
is set to USB DEVICE and PC MODE
is set to ON.
1394 CONTROLSelects the method the camera uses for controlling
external devices connected to the DVCPRO/DV...

1
ChapterMenuOperations

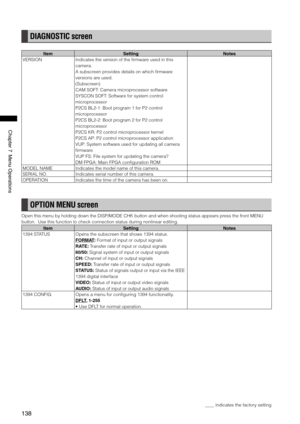

DIAGNOSTIC screen
ItemSettingNotes
VERSIONIndicates the version of the firmware used in this
camera.
A subscreen provides details on which firmware
versions are used.
(Subscreen)
CAM SOFT: Camera microprocessor software
SYSCON SOFT: Software for system control
microprocessor
P2CS BL2-1: Boot program 1 for P2 control
microprocessor
P2CS BL2-2: Boot program 2 for P2 control
microprocessor
P2CS KR: P2 control microprocessor kernel
P2CS AP: P2...

1

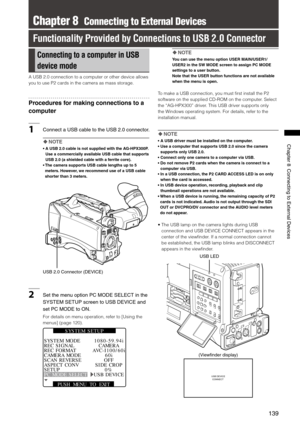

ChapterConnectingtoExternalDevices

Chapter 8  Connecting to External Devices
Functionality Provided by Connections to USB 2.0 Connector
Connecting to a computer in USB
device mode
A USB 2.0 connection to a computer or other device allows
you to use P2 cards in the camera as mass storage.
Procedures for making connections to a
computer
1 Connect aUSB cable tothe USB.0 connector.
 NOTE
•   A USB 2.0...

10
ChapterConnectingtoExternalDevices

3TerminatingUSBmode
Use one of the following three methods.
•  Set the camera POWER switch to OFF.
•  Set the PC MODE option in the SYSTEM SETUP
screen to OFF.
•  Press the USER button to which PC MODE has
been assigned.

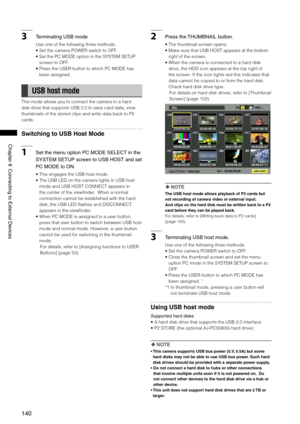

 USB host mode
This mode allows you to connect the camera to a hard
disk drive that supports USB 2.0 to save card data, view
thumbnails of the stored clips and write data back to P2
cards....
