ChapterMenuOperations

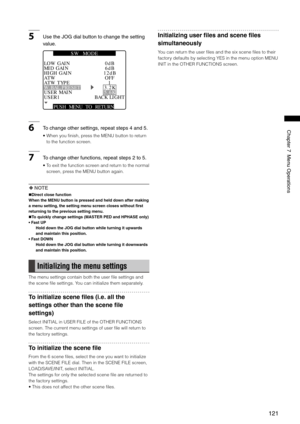

5UsetheJOGdialbuttontochangethesetting
value.
PUSH  MENU  TO  RETURN
MID GAINHIGH GAINATWATW TYPEW.BAL.PRESETUSER MAIN
0dB6dB12dBOFF1
USER1BACK LIGHT
3.2K5.6K
LOW GAIN
S W     M O D E
6Tochangeothersettings,repeatstepsand.
•  When you finish, press the MENU button to return
to the function screen.
7...

1
ChapterMenuOperations

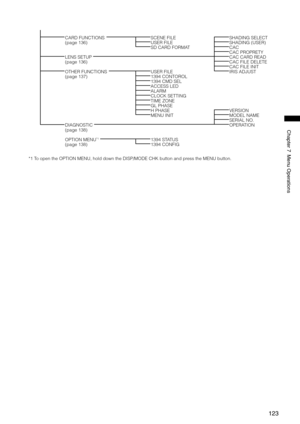

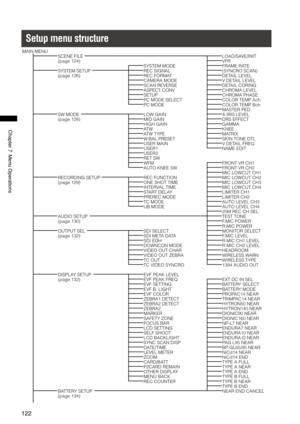

Setup menu structure
MAIN MENUSCENE FILELOAD/SAVE/INIT(page 124)VFRSYSTEM MODEFRAME RATESYSTEM SETUPREC SIGNAL(SYNCRO SCAN)(page 126)REC FORMATDETAIL LEVELCAMERA MODEV DETAIL LEVELSCAN REVERSEDETAIL CORINGASPECT CONVCHROMA LEVELSETUPCHROMA PHASEPC MODE SELECTCOLOR TEMP AchPC MODECOLOR TEMP BchMASTER PEDSW MODELOW GAINA.IRIS LEVEL(page 128)MID GAINDRS EFFECTHIGH GAINGAMMAATWKNEEATW TYPEMATRIXW.BAL.PRESETSKIN TONE DTLUSER MAINV DETAIL FREQUSER1NAME...

1
ChapterMenuOperations
CARD FUNCTIONSSCENE FILESHADING SELECT(page 136)USER FILESHADING (USER)SD CARD FORMATCACCAC PROPRETYLENS SETUPCAC CARD READ(page 136)CAC FILE DELETECAC FILE INITOTHER FUNCTIONSUSER FILEIRIS ADJUST(page 137)1394 CONTOROL1394 CMD SELACCESS LEDALARMCLOCK SETTINGTIME ZONEGL PHASEH PHASEVERSIONMENU INITMODEL NAMESERIAL NO.DIAGNOSTICOPERATION(page 138)
OPTION MENU*11394 STATUS(page 138)1394 CONFIG
*1  To open the OPTION MENU, hold down the DISP/MODE CHK...

1
ChapterMenuOperations

Setup menu list

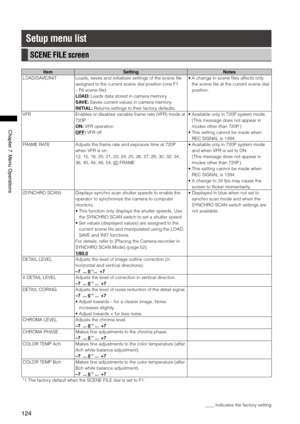

SCENE FILE screen
ItemSettingNotes
LOAD/SAVE/INITLoads, saves and initializes settings of the scene file
assigned to the current scene dial position (one F1
– F6 scene file).
LOAD: Loads data stored in camera memory.
SAVE: Saves current values in camera memory.
INITIAL: Returns settings to their factory defaults.
•  A change in scene files affects only
the scene file at the current scene dial
position.
VFREnables or disables...

1
ChapterMenuOperations
ItemSettingNotes
MASTER PEDAdjusts the black master pedestal that serves as the
video reference.
–100  ... +15 *1 ...  +100
•  Hold down the JOG dial button and
turn it downwards or upwards and
maintain this position to quickly
change values.
•  When a remote controller (AJ-RC10G)
is connected, use the M-PED control
on the remote controller to adjust.
A. IRIS LEVELSets the AUTO IRIS target value.
–10  ... 0 *1 ...  +10
DRS EFFECTSets the...

1
ChapterMenuOperations

ItemSettingNotes
V DETAIL FREQSets vertical detail.
THIN: Produces fine detail.
MID: Produces less detail and wider edging.
THICK: Produces even less detail and the widest
edging effect.
•  Progressive recording made at THIN or MID cause
horizontal lines or oblique lines that are almost
horizontal to flicker when viewed on a normal
monitor TV (60i: Interlace). THIN and MID settings
will produce higher resolution video than THICK
when...

1
ChapterMenuOperations

ItemSettingNotes

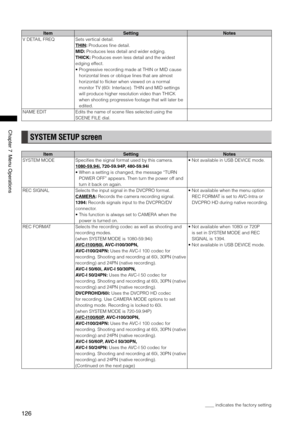

REC FORMAT(Continued from the previous page)
DVCPRO HD/60P, DVCPRO HD/30PN, DVCPRO
HD/24PN: Uses the DVCPRO HD codec for recording.
Shooting and recording at 60P, 30PN (native
recording) and 24PN (native recording).
(when SYSTEM MODE is 480 – 59.94i)
DVCPRO50/60i, DVCPRO/60i, DV/60i: These use
DVCPRO50, DVCPRO and DV codecs, respectively.
Use CAMERA MODE options to set shooting mode.
Recording is locked at 60i.
•  Not...

1
ChapterMenuOperations

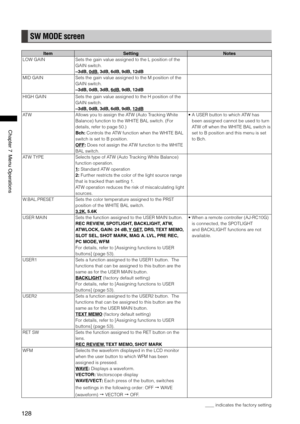

SW MODE screen
ItemSettingNotes
LOW GAINSets the gain value assigned to the L position of the
GAIN switch.
–3dB, 0dB, 3dB, 6dB, 9dB, 12dB
MID GAINSets the gain value assigned to the M position of the
GAIN switch.
–3dB, 0dB, 3dB, 6dB, 9dB, 12dB
HIGH GAINSets the gain value assigned to the H position of the
GAIN switch.
–3dB, 0dB, 3dB, 6dB, 9dB, 12dB
ATWAllows you to assign the ATW (Auto Tracking White
Balance) function to the WHITE BAL switch....

1
ChapterMenuOperations

ItemSettingNotes
AUTO KNEE SWSelects the function of the OUTPUT/AUTO KNEE.
ON: Setting AUTO KNEE to ON turns on the AUTO
KNEE function.
OFF: The AUTO KNEE function is not available even
when AUTO KNEE is set to ON.
DRS: Setting AUTO KNEE to ON turns on the DRS
(Dynamic Range Stretcher) function. (For details, refer
to page 9.)
•  Selecting the 1/15 and 1/30
shutter speeds in the 1080/30P,
1080/24P1080/60i modes and  setting
AUTO KNEE to ON...

10
ChapterMenuOperations

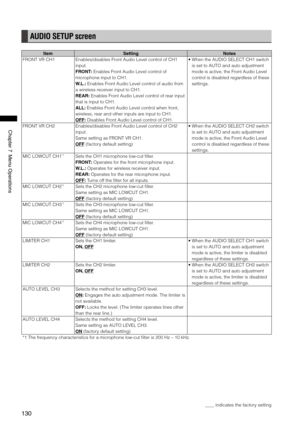

AUDIO SETUP screen
ItemSettingNotes
FRONT VR CH1Enables/disables Front Audio Level control of CH1
input.
FRONT: Enables Front Audio Level control of
microphone input to CH1.
W.L.: Enables Front Audio Level control of audio from
a wireless receiver input to CH1.
REAR: Enables Front Audio Level control of rear input
that is input to CH1.
ALL: Enables Front Audio Level control when front,
wireless, rear and other inputs are input to CH1.
OFF:...
