ChapterMaintenanceandInspections

Warning System
Warning Description Tables
If a problem is detected immediately after the power is turned on, or during operation, this will be indicated by the
WARNING lamp, lamps inside the viewfinder and a warning tone.
PriorityWarning
type
LCD or viewfinder
indicationTally lampWarning
lamp
Alarm
tone*6
Warning description
and recording/playback
operation
Countermeasures
1System error
SYSTEM ERROR
Cause indication *1 Red...

1

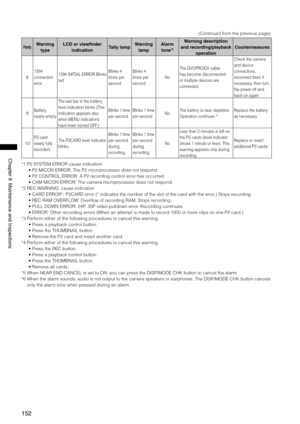

ChapterMaintenanceandInspections

(Continued from the previous page)
PriorityWarning
type
LCD or viewfinder
indicationTally lampWarning
lamp
Alarm
tone*6
Warning description
and recording/playback
operation
Countermeasures
8
1394
connection
error
1394 INITIAL ERROR Blinks
red
Blinks 4
times per
second
Blinks 4
times per
second
No
The DVCPRO/DV cable
has become disconnected
or multiple devices are
connected.
Check the camera
and device
connections,...

1
ChapterMaintenanceandInspections

Warning and Error Display for Thumbnail Operation and USB HOST MODE
ItemMessageDescriptionMeasure
Thumbnails
CANNOT ACCESS! Data cannot be accessed because it is
corrupted or for other reasons.
Restore media and clips to normal state
before access.
CANNOT CHANGE!
Any thumbnails that cannot be produced
on the AVC-Intra 100 or AVC-Intra 50 and
displayed in gray cannot be changed at the
text memo position.
Set SYSTEM MODE...

1
ChapterMaintenanceandInspections
(Continued from the previous page)
ItemMessageDescriptionMeasure

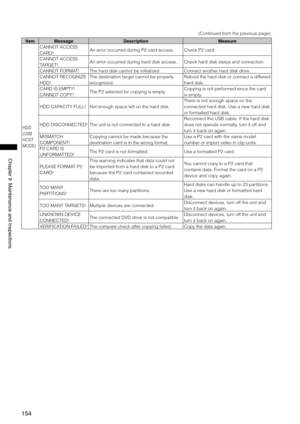

HDD
(USB
HOST
MODE)
CANNOT ACCESS
CARD!An error occurred during P2 card access. Check P2 card.
CANNOT ACCESS
TARGET!An error occurred during hard disk access. Check hard disk status and connection.
CANNOT FORMAT!The hard disk cannot be initialized. Connect another hard disk drive.
CANNOT RECOGNIZE
HDD!
The destination target cannot be properly
recognized....

1
ChapterMaintenanceandInspections

Updating the  firmware incorporated into the unit
The firmware can be updated using either of the following two methods.
1  Checking the current version of firmware and performing the update using the dedicated tool (P2_Status_
Logger)
PASS (P2 Asset Support System) is only available to customers who have completed customer registration with
Panasonic.
Log in to PASS and use the dedicated tool (P2_Status_Logger) to check the version\...

1
Chapter10Index
