Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

11
ChapterConnectingtoExternalDevices

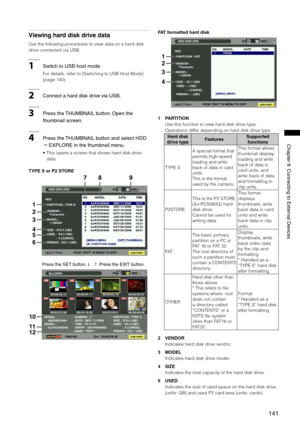

Viewing hard disk drive data
Use the following procedures to view data on a hard disk
drive connected via USB.
1SwitchtoUSBhostmode.
For details, refer to [Switching to USB Host Mode]
(page 140).
2ConnectaharddiskdriveviaUSB.
3Pressthe THUMBNAILbutton. Openthe
thumbnailscreen.
4Pressthe...

1
ChapterConnectingtoExternalDevices

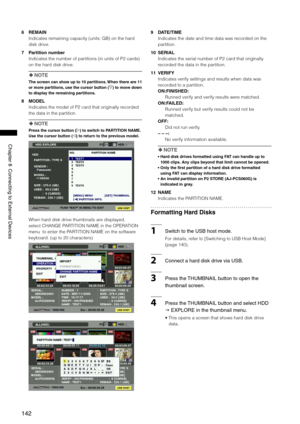

6 REMAIN
Indicates remaining capacity (units: GB) on the hard
disk drive.
7 Partition number
Indicates the number of partitions (in units of P2 cards)
on the hard disk drive.
 NOTE
The screen can show up to 10 partitions. When there are 11
or more partitions, use the cursor button (]) to move down
to display the remaining partitions.
8  MODEL
Indicates the model of P2 card that originally recorded
the data in the...

1
ChapterConnectingtoExternalDevices

5SelectOPERATIONFORMAT(HDD)inthe
menuanduseacursorbuttonandtheSET
buttontoselect YES.
•  Select YES in the confirmation message that
appears again to start hard disk drive formatting.
•  Handled as a “TYPE S” hard disk drive after
formatting.
 NOTE
All data on a hard disk drive is deleted when the disk is
formatted....

1
ChapterConnectingtoExternalDevices

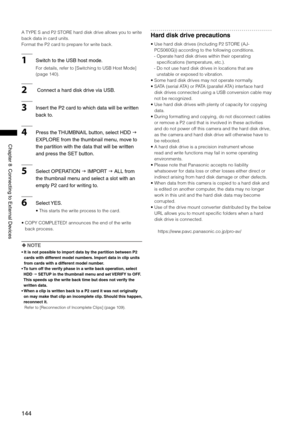

A TYPE S and P2 STORE hard disk drive allows you to write
back data in card units.
Format the P2 card to prepare for write back.
1SwitchtotheUSBhostmode.
For details, refer to [Switching to USB Host Mode]
(page 140).
2 ConnectaharddiskdriveviaUSB.
3InsertthePcardtowhichdatawillbewritten...

1
ChapterConnectingtoExternalDevices

Connections to the DVCPRO/DV Connector
Recording signals input to the
DVCPRO/DV connector
1Connecta1cable(DVcable).
For details, see [Precautions in 1394 Connections]
(page 146).
•  Make sure that the signal format of the camera
and the connected device is the same.
2 TorouteinputsviatheIEEE1interface,set...

1
ChapterConnectingtoExternalDevices

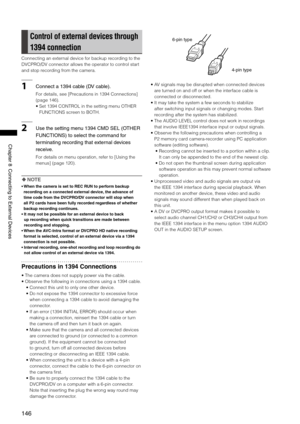

Control of external devices through
1394 connection
Connecting an external device for backup recording to the
DVCPRO/DV connector allows the operator to control start
and stop recording from the camera.
1Connecta1cable(DVcable).
For details, see [Precautions in 1394 Connections]
(page 146).
•  Set 1394 CONTROL in the setting menu OTHER
FUNCTIONS screen to BOTH.
2...

1
ChapterMaintenanceandInspections

Chapter 9  Maintenance and Inspections
Inspections Before Shooting
Make sure you check that the system is operating normally
before embarking on a shoot. We recommend using a
colour video monitor to check the image.
Preparing for Inspections
1 Mountachargedbattery.
2TurnthePOWERswitchtoONtocheckthe
batteryremaininglevelintheviewfinder....

1
ChapterMaintenanceandInspections

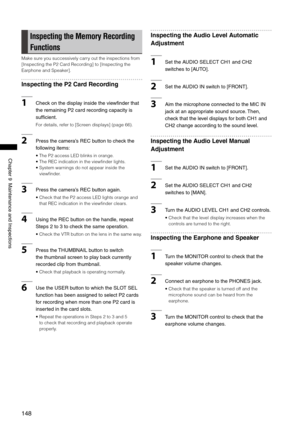

Inspecting the Memory Recording
Functions
Make sure you successively carry out the inspections from
[Inspecting the P2 Card Recording] to [Inspecting the
Earphone and Speaker].
Inspecting the P2 Card Recording
1Checkonthedisplayinsidetheviewfinderthat
theremainingPcardrecordingcapacityis
sufficient.
For details, refer to [Screen displays]...

1
ChapterMaintenanceandInspections

Inspection for Using an External
Microphone
1ConnectanexternalmicrophonetotheREAR1
andREARconnectors.
2SettheAUDIOINswitchto[REAR].
3SettheLINE/MIC/+Vselectorswitcheson
therearpanelto[MIC]or[+V],depending...

10
ChapterMaintenanceandInspections

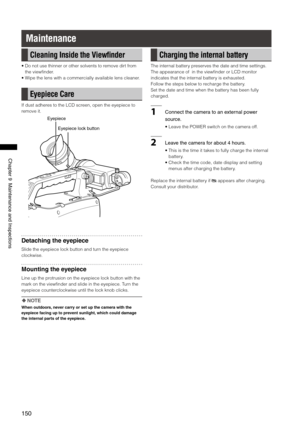

Maintenance
Cleaning Inside the View finder
•   Do not use thinner or other solvents to remove dirt from
the viewfinder.
•  Wipe the lens with a commercially available lens cleaner.
Eyepiece Care
If dust adheres to the LCD screen, open the eyepiece to
remove it.
Eyepiecelockbutton
Eyepiece
Detaching the eyepiece
Slide the eyepiece lock button and turn the eyepiece
clockwise.
Mounting the eyepiece
Line up the protrusion on the...
