Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

111
ChapterManipulatingClipswith Thumbnails
Clip Meta Data items
Clip Meta Data includes the following items: Underlined
items can be set by reading the metadata upload file on
the SD memory card. Other items are set automatically
during shooting. Using the latest update version of P2
Viewer, metadata upload files can be written to SD memory
cards using a PC. Download the latest update version of P2
Viewer from the following URL and install it on your PC:...

11
ChapterManipulatingClipswith Thumbnails

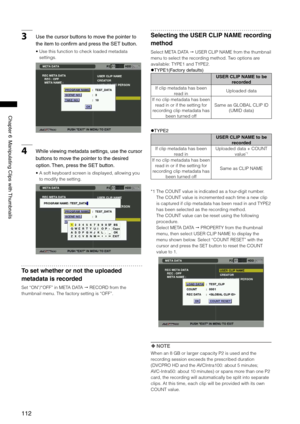

3Usethecursorbuttonstomovethepointerto
theitemtoconfirmandpresstheSETbutton.
•  Use this function to check loaded metadata
settings.
4 While viewing metadata settings,usethecursor
buttonstomovethepointertothedesired
option....

11
ChapterManipulatingClipswith Thumbnails

Exampleofrecording(DVCPROHD)aclipononePcard:
Recordingstart Recordingpause
Recordingduration=Approx.min
Clip1
COUNTvalue =0001 Clip
COUNTvalue =000
Approx. min Approx.min...

11
ChapterManipulatingClipswith Thumbnails

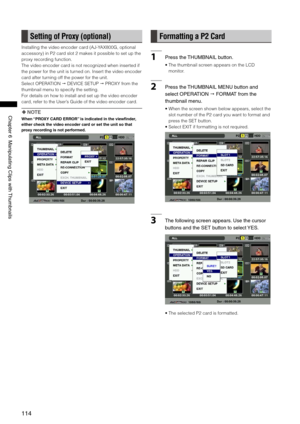

Setting of Proxy (optional)
Installing the video encoder card (AJ-YAX800G, optional
accessory) in P2 card slot 2 makes it possible to set up the
proxy recording function.
The video encoder card is not recognized when inserted if
the power for the unit is turned on. Insert the video encoder
card after turning off the power for the unit.
Select OPERATION  DEVICE SETUP  PROXY from the
thumbnail menu to specify the...

11
ChapterManipulatingClipswith Thumbnails

Formatting SD memory cards
SD memory cards can also be formatted from the
thumbnail screen. With an SD memory card inserted into
the unit, perform the following operation:
1Pressthe THUMBNAILbutton.
•  The thumbnail screen appears on the LCD
monitor.
2 Pressthe THUMBNAILMENUbuttonand
selectOPERATIONFORMATfromthe
thumbnailmenu. ...

11
ChapterManipulatingClipswith Thumbnails

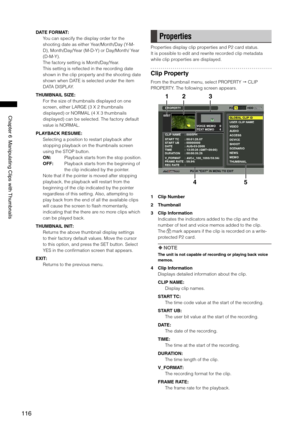

DATE FORMAT:
You can specify the display order for the
shooting date as either Year/Month/Day (Y-M-
D), Month/Day/Year (M-D-Y) or Day/Month/ Year
(D-M-Y).
The factory setting is Month/Day/Year.
This setting is reflected in the recording date
shown in the clip property and the shooting date
shown when DATE is selected under the item
DATA DISPLAY.
THUMBNAIL SIZE:
For the size of thumbnails displayed on one
screen, either...

11
ChapterManipulatingClipswith Thumbnails

REC RATE:
The recording frame rate is displayed. (Only
displayed for clips recorded using native recording
with the VFR function.)
5 Clip Meta Data
Displays more detailed data about the clip. Use the
cursor buttons to move the pointer, and press the
SET button to check the detailed content. For more
information on displayed metadata, see [Setting of Clip
Meta Data] (page 110).
Modification of recorded clip metadata...

11
ChapterManipulatingClipswith Thumbnails

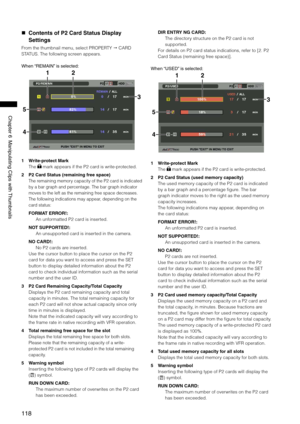

 Contents of P2 Card Status Display
Settings
From the thumbnail menu, select PROPERTY  CARD
STATUS. The following screen appears.
When “REMAIN” isselected:
2
5
1
3
4
1 Write-protect Mark
The  mark appears if the P2 card is write-protected.
2 P2 Card Status (remaining free space)
The remaining memory capacity of the P2 card is indicated
by a bar graph and percentage. The bar graph indicator
moves to the...

11
ChapterManipulatingClipswith Thumbnails
DIR ENTRY NG CARD:
The directory structure on the P2 card is not
supported.
For details on P2 card status indications, refer to [2. P2
Card Status (used memory capacity)]
SD memory card Status Display
The status display enables a confirmation of the SD
memory card formatted condition, available memory
capacity etc. From the thumbnail menu, select PROPERTY
 DEVICES  SD CARD.
If the format is compatible with SD...

10
ChapterMenuOperations

Chapter 7  Menu Operations
View finder and LCD Menus
Using the menus
Use the setup menus to change the settings to suit the
scenes you are shooting or what you are recording.
•   If the thumbnail menu is displayed, press the
THUMBNAIL button to clear the display.
•  The menu items indicated in the blue characters cannot
be used.
b
a
a  JOG dial button
b MENU button
1...
