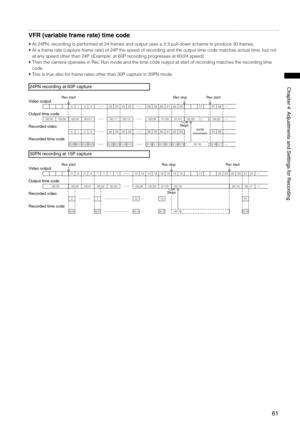

VFR (variable frame rate) time code
•  At 24PN, recording is performed at 24 frames and output uses a 2:3 pull-down scheme to produce 30 frames.
•  At a frame rate (capture frame rate) of 24P the speed of recording and the output time code matches actual time, but not
at any speed other than 24P. (Example: at 60P recording progresses at 60/24 speed)
•  Then the camera operates in Rec Run mode and the time code output...


ChapterAdjustmentsandSettingsforRecording

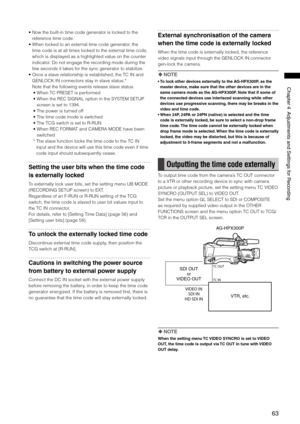

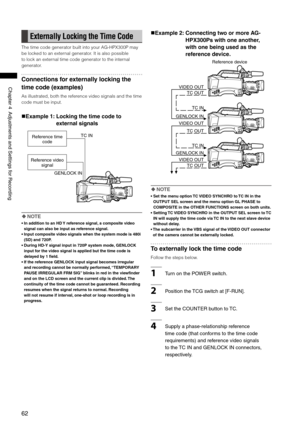

Externally Locking the Time Code
The time code generator built into your AG-HPX300P may
be locked to an external generator. It is also possible
to lock an external time code generator to the internal
generator.
Connections for externally locking the
time code (examples)
As illustrated, both the reference video signals and the time
code must be input.
Example 1:   Locking the time code to
external signals...


ChapterAdjustmentsandSettingsforRecording

•  Now the built-in time code generator is locked to the
reference time code.
•  When locked to an external time code generator, the
time code is at all times locked to the external time code,
which is displayed as a highlighted value on the counter
indicator. Do not engage the recording mode during the
few seconds it takes for the sync generator to stabilize.
•  Once a slave relationship is established, the...


ChapterAdjustmentsandSettingsforRecording
GENLOCK and time code input/output connection and setup
Camera operating conditionsCamera setupGENLOCK input and camera output phase
(In phase:  Out of phase: ×)
Recording
format
Video and reference
signal to be output
externally
GENLOCK inputGL PHASESDI OUT (HD)VIDEO OUT,
SDI OUT (SD)TC OUT
1080i
SDI OUT (1080i)1080iSDI90H delay
VIDEO OUTCOMPOSITE90H advance
SDI OUT (1080i)SD (480i)SDI90H delay
VIDEO...


ChapterAdjustmentsandSettingsforRecording

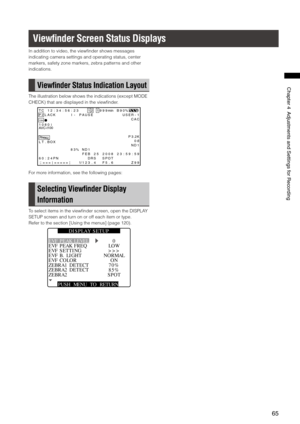

Viewfinder Screen Status Displays
In addition to video, the viewfinder shows messages
indicating camera settings and operating status, center
markers, safety zone markers, zebra patterns and other
indications.
View finder Status Indication Layout
The illustration below shows the indications (except MODE
CHECK) that are displayed in the viewfinder.
T C1 2: 34 :5 6: 23 112 99 9min B9 0%P 2L AC KI -P AU SE US ER -1...


ChapterAdjustmentsandSettingsforRecording

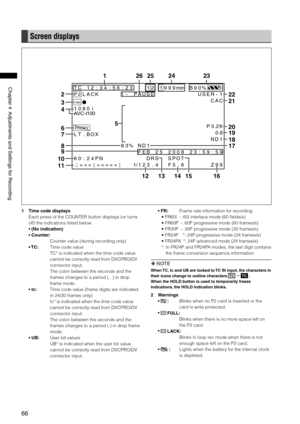

Screen displays
T C1 2: 34 :5 6: 23 112 99 9minB 90 %
P 2L AC KI -P AU SE US ER -1
1394
PROXY
C AC
1 0 8 0iAVC-I100
P 3.2K
L T. BO X0dB
N D1
8 3% ND 1
F EB 25 20 08 2
S PO T
F 5. 6
3 :5 9:
Z
5
9
9
9
6 0: 24 PN DR S12= == == = = =1/1 23 .4CHCH
13
26
141512
2324251
2
3
4
6
10
11
8
9
7
5
16
17
18
19
20
21
22
1 Time code displays
Each press of the COUNTER button displays (or turns
off) the indications listed below.
•...


ChapterAdjustmentsandSettingsforRecording

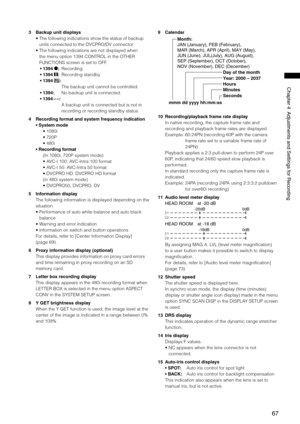

3 Backup unit displays
•  The following indications show the status of backup
units connected to the DVCPRO/DV connector.
•  The following indications are not displayed when
the menu option 1394 CONTROL in the OTHER
FUNCTIONS screen is set to OFF.
• 1394 *:  Recording
• 1394 h:  Recording standby
• 1394  :
    The backup unit cannot be controlled.
• 1394:    No backup unit is connected.
• 1394  – –:
  A backup...


ChapterAdjustmentsandSettingsforRecording

16 Zoom position display
Zoom positions are indicated in a range from Z00
(maximum wide angle) to Z99 (maximum zoom).
17 Recommended ND filter display
This indicates the most suitable ND filter to use under
current shooting conditions.
18 ND filter display
•  This indicates the selected ND filter.
•  An ND -- indication means that the ND FILTER switch
is incorrectly set (a position other than ND1 to ND4).
Check...


ChapterAdjustmentsandSettingsforRecording

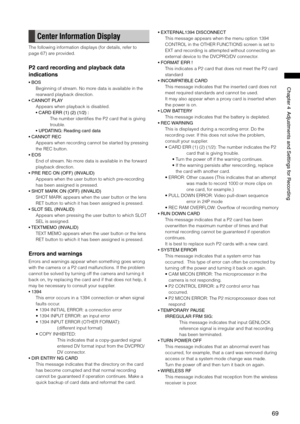

Center Information Display
The following information displays (for details, refer to
page 67) are provided.
P2 card recording and playback data
indications
•BOS
Beginning of stream. No more data is available in the
rearward playback direction.
•CANNOTPLAY
Appears when playback is disabled.
•CARDERR(1)()(1/):
The number identifies the P2 card that is...

0
ChapterAdjustmentsandSettingsforRecording

Camera status display
•ABB
ABB indicator
•ATWACTIVE
Appears when the AUTO W/B BAL switch is set to AWB
and ATW is running.
•ATW(ATWLOCK)
Appears when the WHITE BAL switch is set to B and
ATW has been assigned.
•AUTOKNEE(ON/OFF)
Displayed when changing the AUTO KNEE switch
position.
•AWB
AWB indicator
•AWBP.K/AWBP.K
Displays the color...
