Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

101
ChapterManipulatingClipswith Thumbnails

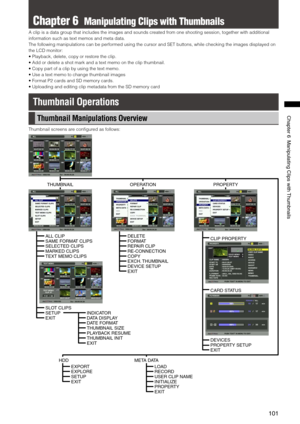

Chapter 6  Manipulating Clips with Thumbnails
A clip is a data group that includes the images and sounds created from one shooting session, together with additional
information such as text memos and meta data.
The following manipulations can be performed using the cursor and SET buttons, while checking the images displaye\
d on
the LCD monitor:
• Playback, delete, copy or restore the clip.
•   Add or delete a shot mark and a...

10
ChapterManipulatingClipswith Thumbnails

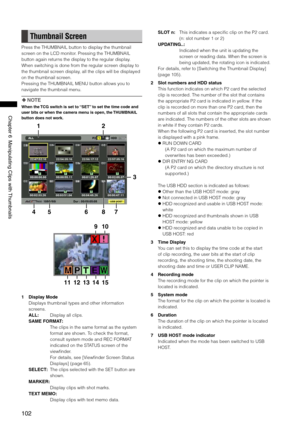

Thumbnail Screen
Press the THUMBNAIL button to display the thumbnail
screen on the LCD monitor. Pressing the THUMBNAIL
button again returns the display to the regular display.
When switching is done from the regular screen display to
the thumbnail screen display, all the clips will be displayed
on the thumbnail screen.
Pressing the THUMBNAIL MENU button allows you to
navigate the thumbnail menu.
 NOTE
When the TCG...

10
ChapterManipulatingClipswith Thumbnails
8 Clip Number
The numbers set by the camera for all the clips
recognized correctly by the P2 card. These numbers
are allocated in chronological order, by shooting dates
and times.
If clips cannot be played because of different recording
formats, they are displayed in red.
9 X Defective Clip Indicator and
? Unknown Clip indicator
This marker is displayed for defective clips, which may
result from a variety of causes,...

10
ChapterManipulatingClipswith Thumbnails

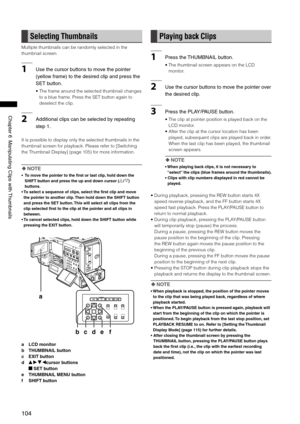

Selecting Thumbnails
Multiple thumbnails can be randomly selected in the
thumbnail screen.
1Usethecursorbuttonstomovethepointer
(yellowframe)tothedesiredclipandpressthe
SETbutton.
•  The frame around the selected thumbnail changes
to a blue frame. Press the SET button again to
deselect the clip.
2...

10
ChapterManipulatingClipswith Thumbnails

Switching the Thumbnail Display
The display can be switched so that only those clips
matching the specified conditions are displayed in the
thumbnail screen.
1Pressthe THUMBNAILbutton.
•  The thumbnail screen appears on the LCD
monitor.
2 Pressthe THUMBNAILMENUbutton.
•  The thumbnail menu opens.
a
a  THUMBNAIL MENU button
3 Select...

10
ChapterManipulatingClipswith Thumbnails

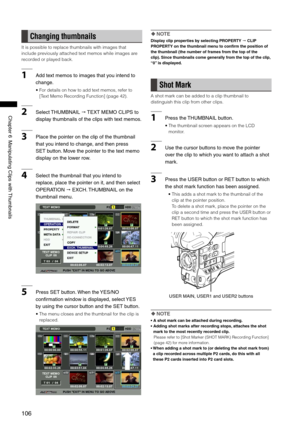

Changing thumbnails
It is possible to replace thumbnails with images that
include previously attached text memos while images are
recorded or played back.
1Addtextmemostoimagesthatyouintendto
change.
•  For details on how to add text memos, refer to
[Text Memo Recording Function] (page 42).
2 Select THUMBNAILTEXTMEMOCLIPSto...

10
ChapterManipulatingClipswith Thumbnails

Text Memo
During recording or playback, you can add text memos to
clips. Text memos can be used to play back clips at some
point or break clips into chunks and copy the necessary
portions.
Adding a text memo
Text memos can be added in one of the following ways.
  Press the USER button or RET button to which the text
memo function has been assigned during recording or
playback.
This adds text memos where respective...

10
ChapterManipulatingClipswith Thumbnails

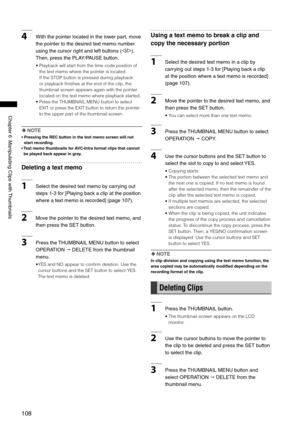

4Withthepointerlocatedinthelowerpart,move
thepointertothedesiredtextmemonumber
usingthecursorrightandleftbuttons(p/o).
Then,pressthePLAY/PAUSEbutton.
•   Playback will start from the time code position of
the text memo where the pointer is located.
If the STOP button is pressed...

10
ChapterManipulatingClipswith Thumbnails

4Thefollowingscreenappears. Usethecursor
buttonsandtheSETbuttontoselect YES.
•  The clip is deleted. All selected clips (in blue
frames) are deleted by this operation.
 NOTE
Tointerruptdeleting,presstheSHIFTandEXITbuttonsor
theSETbuttontocanceltheoperation. ...

110
ChapterManipulatingClipswith Thumbnails

3Pressthe THUMBNAILMENUbuttonand
selectOPERATIONCOPYfromthe
thumbnailmenu.
•  Select slot 1-2 or SD memory card as the
destination.
•  When a confirmation screen asks you to confirm
that you want to copy the clip, use a cursor button
and the SET button to select YES if you want to
copy the clip.
 NOTE
•   Do not turn off the power or remove a P2...
