Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

1
ChapterPreparation

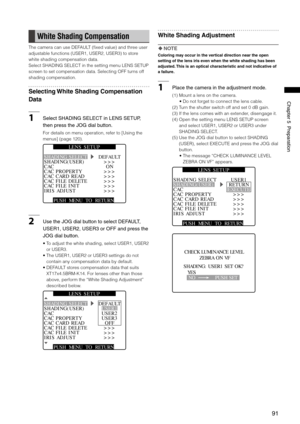

White Shading Compensation
The camera can use DEFAULT (fixed value) and three user
adjustable functions (USER1, USER2, USER3) to store
white shading compensation data.
Select SHADING SELECT in the setting menu LENS SETUP
screen to set compensation data. Selecting OFF turns off
shading compensation.
Selecting White Shading Compensation
Data
1SelectSHADINGSELECTinLENSSETUP,...


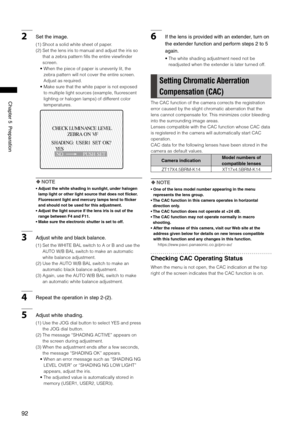

ChapterPreparation

2Settheimage.
(1)  Shoot a solid white sheet of paper.
(2)  Set the lens iris to manual and adjust the iris so
that a zebra pattern fills the entire viewfinder
screen.
•  When the piece of paper is unevenly lit, the
zebra pattern will not cover the entire screen.
Adjust as required.
•  Make sure that the white paper is not exposed
to multiple light sources (example, fluorescent
lighting or halogen lamps) of different color...


ChapterPreparation

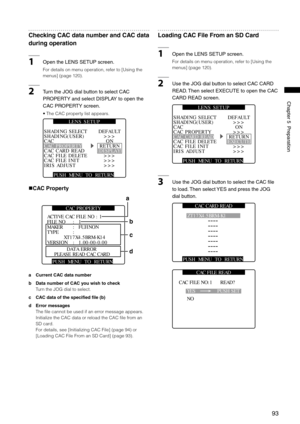

Checking CAC data number and CAC data
during operation
1OpentheLENSSETUPscreen.
For details on menu operation, refer to [Using the
menus] (page 120).
2TurntheJOGdialbuttontoselectCAC
PROPERTYandselectDISPLAYtoopenthe
CACPROPERTYscreen.
• The CAC property list appears.
PUSH  MENU  TO  RETURN
SHADING(USER)CACCAC PROPERTYCAC CARD...


ChapterPreparation
 NOTE
•
The camera can load up to 8 files.
  When an attempt is made to load a new file while 8 files have
already been loaded, “READ NG CAC FILE FULL” appears. To
load a new file, delete an existing file before loading the new
file.

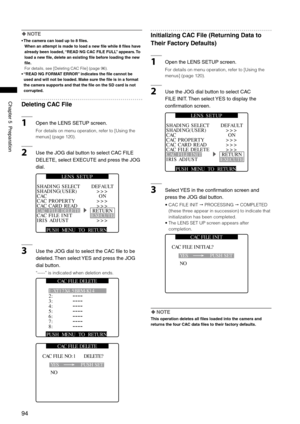

For details, see [Deleting CAC File] (page 96).
•
“READ NG FORMAT ERROR” indicates the file cannot be
used and will not be loaded. Make sure the file is in a format
the camera supports and that the file on the SD...


ChapterPreparation

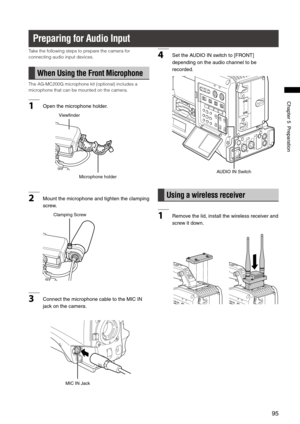

Preparing for Audio Input
Take the following steps to prepare the camera for
connecting audio input devices.
When Using the Front Microphone
The AG-MC200G microphone kit (optional) includes a
microphone that can be mounted on the camera.
1Openthemicrophoneholder.
Microphoneholder
Viewfinder
2Mount themicrophone andtighten theclamping
screw.
ClampingScrew
3...


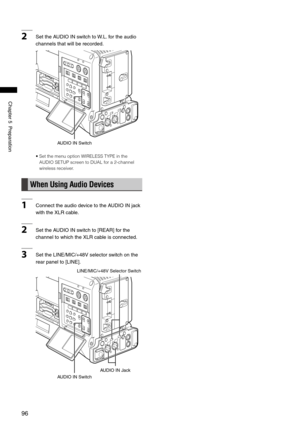

ChapterPreparation
2SettheAUDIOINswitchto W.L.fortheaudio
channelsthatwillberecorded.
AUDIOINSwitch
•  Set the menu option WIRELESS TYPE in the
AUDIO SETUP screen to DUAL for a 2-channel
wireless receiver.
When Using Audio Devices
1 ConnecttheaudiodevicetotheAUDIOINjack
withtheXLRcable....


ChapterPreparation

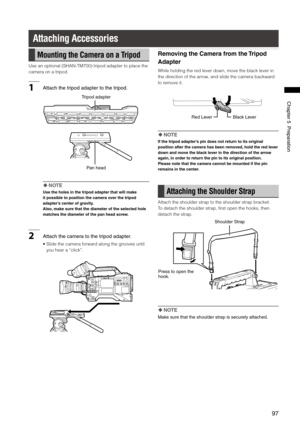

Attaching Accessories
Mounting the Camera on a Tripod
Use an optional (SHAN-TM700) tripod adapter to place the
camera on a tripod.
1Attachthetripodadaptertothetripod.
Panhead
Tripodadapter
 NOTE
Use the holes in the tripod adapter that will make
it possible to position the camera over the tripod
adapter’s center of gravity.
Also, make sure that the diameter of the selected hole
matches the diameter of the pan...


ChapterPreparation

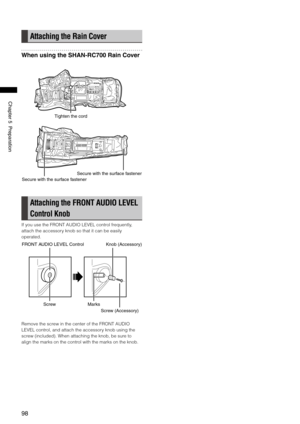

Attaching the Rain Cover
When using the SHAN-RC700 Rain Cover
Tightenthecord
Securewiththesurfacefastener
Securewiththesurfacefastener
Attaching the FRONT AUDIO LEVEL
Control Knob
If you use the FRONT AUDIO LEVEL control frequently,
attach the accessory knob so that it can be easily
operated.
ScrewMarks
Screw(Accessory)
FRONTAUDIOLEVELControlKnob(Accessory)
Remove the screw in the...


ChapterPreparation

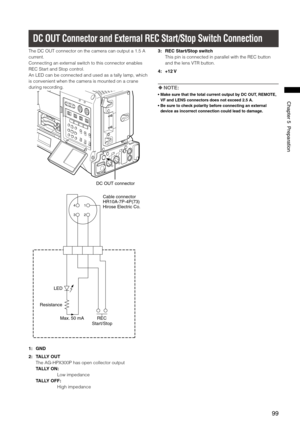

DC OUT Connector and External REC Start/Stop Switch Connection
The DC OUT connector on the camera can output a 1.5 A
current.
Connecting an external switch to this connector enables
REC Start and Stop control.
An LED can be connected and used as a tally lamp, which
is convenient when the camera is mounted on a crane
during recording.
DCOUTconnector
1
23
4
LED
REC
Cableconnector
HR10A-P-P()
HiroseElectricCo....

100
ChapterPreparation

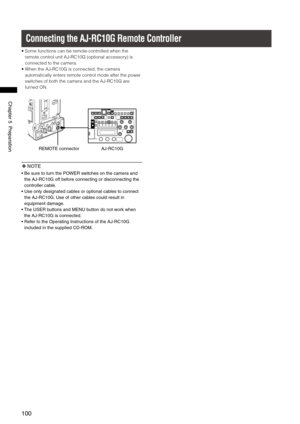

Connecting the AJ-RC10G Remote Controller
•  Some functions can be remote-controlled when the
remote control unit AJ-RC10G (optional accessory) is
connected to the camera.
•  When the AJ-RC10G is connected, the camera
automatically enters remote control mode after the power
switches of both the camera and the AJ-RC10G are
turned ON.
REMOTEconnectorAJ-RC10G
 NOTE
•...
