Panasonic Memory Card Camera Recorder AG-HPX300P Operating Instructions

1
ChapterAdjustmentsandSettingsforRecording

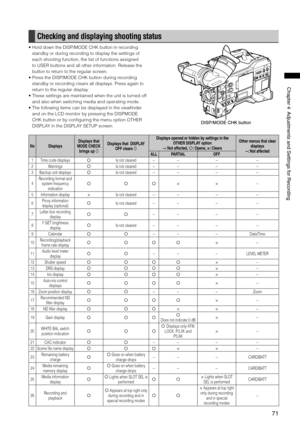

Checking and displaying shooting status
•  Hold down the DISP/MODE CHK button in recording
standby or during recording to display the settings of
each shooting function, the list of functions assigned
to USER buttons and all other information. Release the
button to return to the regular screen.
•  Press the DISP/MODE CHK button during recording
standby or recording clears all displays. Press again to
return to the...


ChapterAdjustmentsandSettingsforRecording

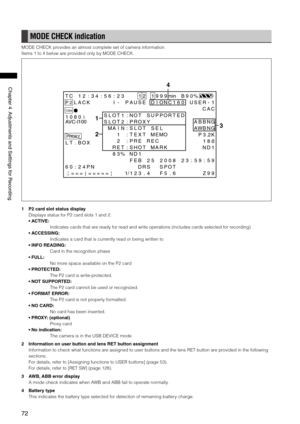

MODE CHECK indication
MODE CHECK provides an almost complete set of camera information.
Items 1 to 4 below are provided only by MODE CHECK.
T C1 2: 34 :5 6: 23 112 99 9minB 90 %
P 2L AC KI -PA U SE DI ON C1 6 0U SE R- 1
1394
PROXY
C AC
1 0 8 0iAVC-I100A BB NG
AWB NG
P 3.2K
L T. BO X1 8dB
N D1
8 3% ND 1
F EB 252 0 08 2
S PO T
F 5. 6
3 :5 9:
Z
5
9
9
9
6 0: 24 PN DR S12= == == = = =1/1 23 .4CHCH
ER T: HS OT MA RK
E C
M...


ChapterAdjustmentsandSettingsforRecording

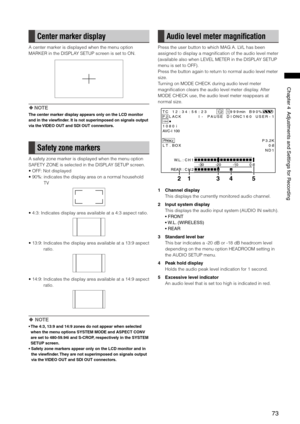

Center marker display
A center marker is displayed when the menu option
MARKER in the DISPLAY SETUP screen is set to ON.
 NOTE
The center marker display appears only on the LCD monitor
and in the viewfinder. It is not superimposed on signals output
via the VIDEO OUT and SDI OUT connectors.
Safety zone markers
A safety zone marker is displayed when the menu option
SAFETY ZONE is selected in the DISPLAY SETUP...


ChapterAdjustmentsandSettingsforRecording

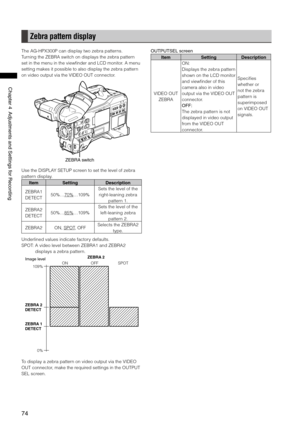

Zebra pattern display
The AG-HPX300P can display two zebra patterns.
Turning the ZEBRA switch on displays the zebra pattern
set in the menu in the viewfinder and LCD monitor. A menu
setting makes it possible to also display the zebra pattern
on video output via the VIDEO OUT connector.
ZEBRAswitch
Use the DISPLAY SETUP screen to set the level of zebra
pattern display.
ItemSettingDescription
ZEBRA1...


ChapterAdjustmentsandSettingsforRecording

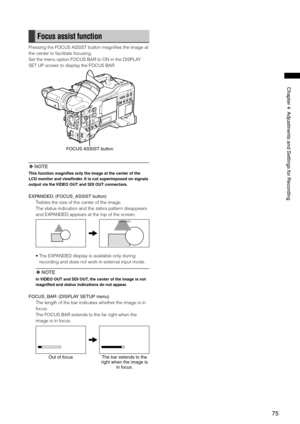

Focus assist function
Pressing the FOCUS ASSIST button magnifies the image at
the center to facilitate focusing.
Set the menu option FOCUS BAR to ON in the DISPLAY
SET UP screen to display the FOCUS BAR.
FOCUSASSISTbutton
 NOTE
This function magnifies only the image at the center of the
LCD monitor and viewfinder. It is not superimposed on signals
output via the VIDEO OUT and SDI OUT connectors....


ChapterAdjustmentsandSettingsforRecording

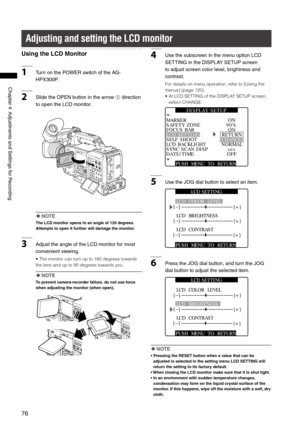

Adjusting and setting the LCD monitor
Using the LCD Monitor
1TurnonthePOWERswitchoftheAG-
HPX00P.
2SlidetheOPENbuttoninthearrowAdirection
toopentheLCDmonitor.
 NOTE
The LCD monitor opens to an angle of 120 degrees.
Attempts to open it further will damage the monitor.
3...


ChapterAdjustmentsandSettingsforRecording
•

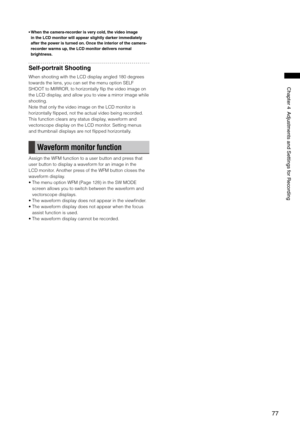

When the camera-recorder is very cold, the video image
in the LCD monitor will appear slightly darker immediately
after the power is turned on. Once the interior of the camera-
recorder warms up, the LCD monitor delivers normal
brightness.
Self-portrait Shooting
When shooting with the LCD display angled 180 degrees
towards the lens, you can set the menu option SELF
SHOOT to MIRROR, to horizontally flip the...


ChapterAdjustmentsandSettingsforRecording

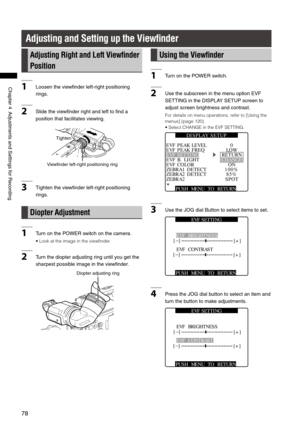

Adjusting and Setting up the View finder
Adjusting Right and Left View finder
Position
1 Loosentheviewfinderleft-rightpositioning
rings.
2Slidetheviewfinderrightandlefttofinda
positionthatfacilitatesviewing.
Viewfinderleft-rightpositioningring
Tighten...


ChapterAdjustmentsandSettingsforRecording
 NOTE
•   Pressing the RESET button when an adjustable value is
selected in the setting menu EVF SETTING will return that
setting to its factory default.
•
The LCD monitor will appear darker than usual if the camera
recorder is cold when it is turned on. The display will return to
its normal brightness as it warms up.

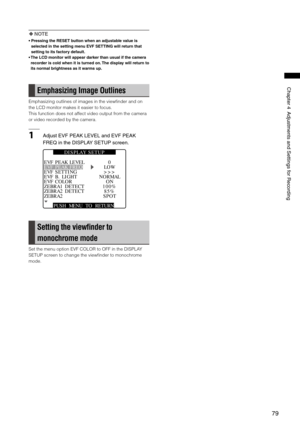

Emphasizing Image Outlines
Emphasizing outlines of images in the viewfinder and on
the LCD...

0
ChapterAdjustmentsandSettingsforRecording

Handling setup data
Configuration of setup data  files
This camera makes it possible to save a scene file to each of the F1 t\
o F6 positions on the SCENE FILE dial.
Use of an SD memory card makes it possible to save up to four of the F1 to F6 files on an SD \
card for later retrieval.
The setting menu values can be stored as a user file in the camera and up to four files can be stored on the SD memory
card.
The setting...
