ChapterAdjustmentsandSettingsforRecording

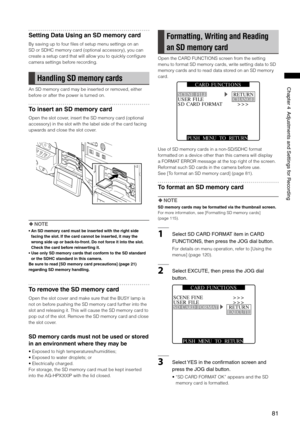

Setting Data Using an SD memory card
By saving up to four files of setup menu settings on an
SD or SDHC memory card (optional accessory), you can
create a setup card that will allow you to quickly configure
camera settings before recording.
Handling SD memory cards
An SD memory card may be inserted or removed, either
before or after the power is turned on.
To insert an SD memory card
Open the slot cover, insert the...


ChapterAdjustmentsandSettingsforRecording

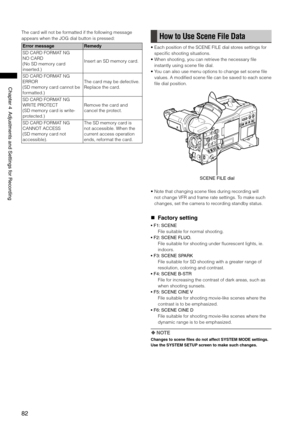

The card will not be formatted if the following message
appears when the JOG dial button is pressed:
Error messageRemedy
SD CARD FORMAT NG
NO CARD
(No SD memory card
inserted.)
Insert an SD memory card.
SD CARD FORMAT NG
ERROR
(SD memory card cannot be
formatted.)
The card may be defective.
Replace the card.
SD CARD FORMAT NG
WRITE PROTECT
(SD memory card is write-
protected.)
Remove the card and
cancel the...


ChapterAdjustmentsandSettingsforRecording

Changing scene file settings

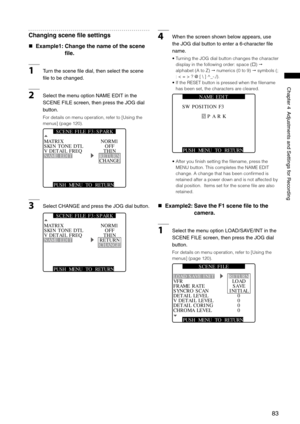

 Example1:   Change the name of the scene
file.
1Turnthescenefiledial,thenselectthescene
filetobechanged.
2SelectthemenuoptionNAMEEDITinthe
SCENEFILEscreen,thenpresstheJOGdial
button.
For details on menu operation, refer to [Using the...


ChapterAdjustmentsandSettingsforRecording

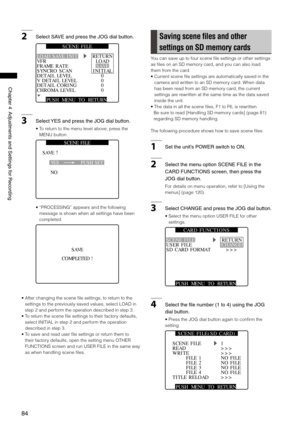

2SelectSAVEandpresstheJOGdialbutton.
PUSH  MENU  TO  RETURN
VFRFRAME RATESYNCRO SCANDETAIL LEVELV DETAIL LEVELDETAIL CORING
RETURNLOADSAVEINITIAL0
CHROMA LEVEL0
00
LOAD SAVE INIT
S C E N E   F I L E
3Select YESandpresstheJOGdialbutton.
•  To return to the menu level above, press the
MENU button.
YES
NO
SAVE ?
SCENE FILE
PUSH SET
•...


ChapterAdjustmentsandSettingsforRecording

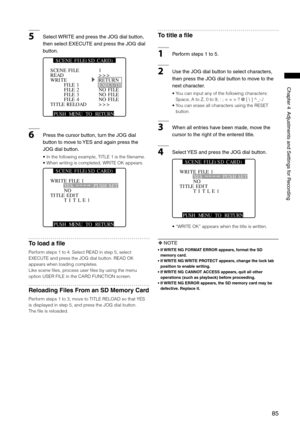

5Select WRITEandpresstheJOGdialbutton,
thenselectEXECUTEandpresstheJOGdial
button.
PUSH  MENU  TO  RETURN
READWRITEFILE 1FILE 2FILE 3FILE 4
1>>>RETURNEXECUTENO FILE
TITLE RELOAD>>>
NO FILENO FILE
SCENE FILE
S C E N E   F I L E ( S D   C A R D )
6Pressthecursorbutton,turntheJOGdial...


ChapterPreparation

Chapter 5  Preparation

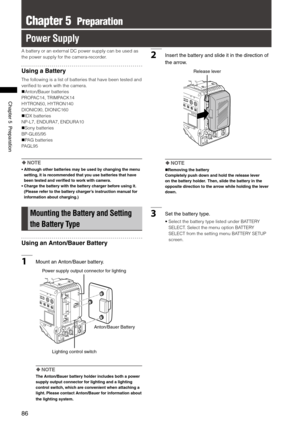

Power Supply
A battery or an external DC power supply can be used as
the power supply for the camera-recorder.
Using a Battery
The following is a list of batteries that have been tested and
verified to work with the camera.
Anton/Bauer batteries
PROPAC14, TRIMPACK14
HYTRON50, HYTRON140
DIONIC90, DIONIC160
IDX batteries
NP-L7, ENDURA7, ENDURA10
Sony batteries
BP-GL65/95
PAG batteries
PAGL95
 NOTE
•   Although other batteries may...


ChapterPreparation
When using a V-mount type battery

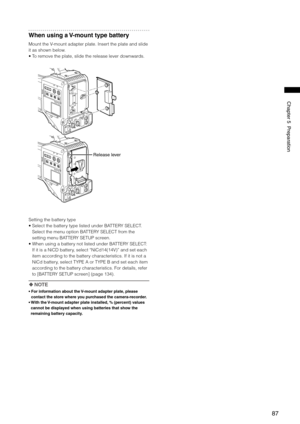

Mount the V-mount adapter plate. Insert the plate and slide
it as shown below.
•  To remove the plate, slide the release lever downwards.
Releaselever
Setting the battery type
•  Select the battery type listed under BATTERY SELECT.
Select the menu option BATTERY SELECT from the
setting menu BATTERY SETUP screen.
•  When using a battery not listed under BATTERY SELECT:
If it is a NiCD battery, select “NiCd14(14V)”...


ChapterPreparation

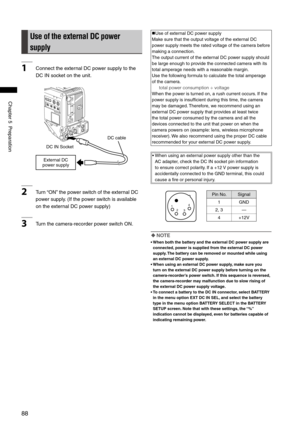

Use of the external DC power
supply
1ConnecttheexternalDCpowersupplytothe
DCINsocketontheunit.
DCINSocket DCcable
ExternalDC

powersupply
2 Turn “ON”thepowerswitchoftheexternalDC
powersupply. (Ifthepowerswitchisavailable...


ChapterPreparation

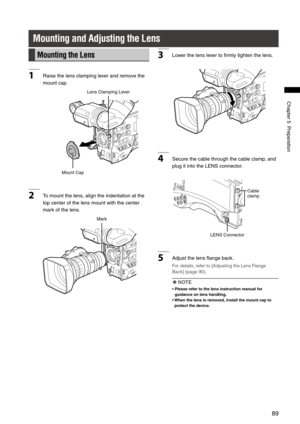

Mounting and Adjusting the Lens
Mounting the Lens
1Raisethelensclampingleverandremovethe
mountcap.
MountCap LensClampingLever
2
Tomountthelens,aligntheindentationatthe
topcenterofthelensmountwiththecenter
markofthelens.
Mark...

0
ChapterPreparation

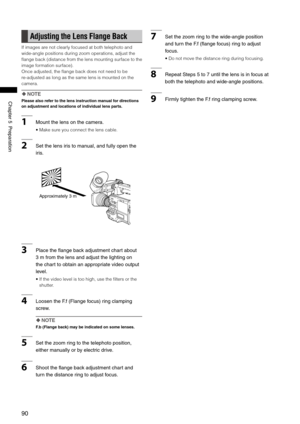

Adjusting the Lens Flange Back
If images are not clearly focused at both telephoto and
wide-angle positions during zoom operations, adjust the
flange back (distance from the lens mounting surface to the
image formation surface).
Once adjusted, the flange back does not need to be
re-adjusted as long as the same lens is mounted on the
camera.
 NOTE
Please also refer to the lens instruction manual for directions
on adjustment and locations of individual lens...
