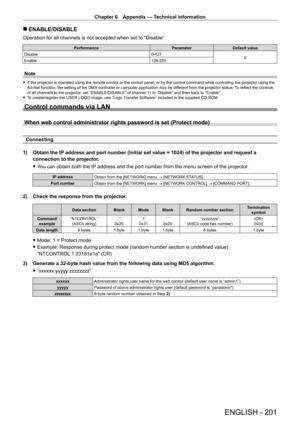

Panasonic Projector PT-RQ13K User Manual

Chapter 6 Appendix — Technical information
ENGLISH - 201
 rENABLE/DISABLE
Operation for all channels is not accepted when set to “Disable”.
Performance ParameterDefault value
Disable 0
- 127 0
Enable 128
- 255
Note
 fIf the projector is operated using the remote control or the control panel, or by the control command while controlling the projector using the
Art-Net function, the setting of the DMX controller or computer application may be dif ferent from the projector status.
To reflect the controls...

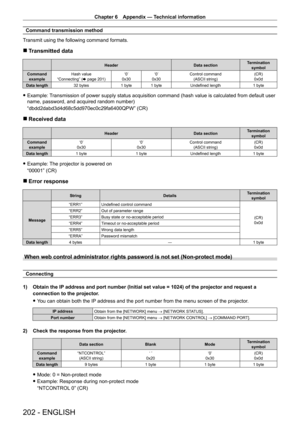

Chapter 6 Appendix — Technical information
202 - ENGLISH
Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example Hash value
“Connecting” ( x

page

201) ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 32

bytes 1
  byte 1   byteUndefined length 1
  byte
 fExample: Transmission of power supply status acquisition command (hash value is calculated from default user
name, password, and...

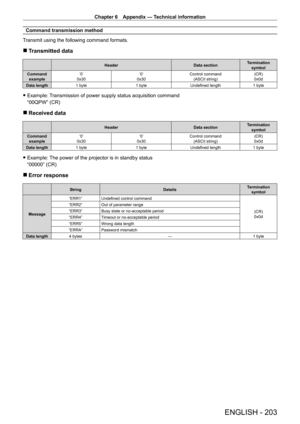

Chapter 6 Appendix — Technical information
ENGLISH - 203
Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 1

byte 1
  byte Undefined length 1
  byte
 fExample: Transmission of power supply status acquisition command
“00QPW” (CR)
 r Received data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command...

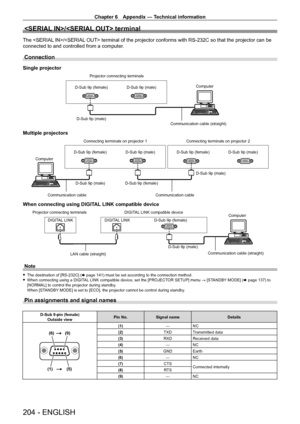

Chapter 6 Appendix — Technical information
204 - ENGLISH
/ terminal
The / terminal of the projector conforms with RS-232C so that the projector can be
connected to and controlled from a computer .
Connection
Single projector
Projector connecting terminals
Computer
D-Sub 9p (male) Communication cable (straight)
D-Sub 9p (female) D-Sub 9p (male)
Multiple projectors
D-Sub 9p (female) D-Sub 9p (male)
Connecting terminals on projector 2
D-Sub 9p (female) D-Sub 9p (male) Connecting terminals on projector 1...

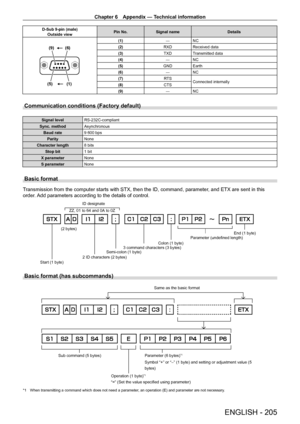

Chapter 6 Appendix — Technical information
ENGLISH - 205
D-Sub 9-pin (male)Outside view Pin No.
Signal name Details
(5) (1)(9) (6)
(1)
―NC
(2) RXDReceived data
(3) TXDTransmitted data
(4) ―NC
(5) GNDEarth
(6) ―NC
(7) RTS
Connected internally
(8) CTS
(9) ―NC
Communication conditions (Factory default)
Signal level RS - 232C-compliant
Sync. method Asynchronous
Baud rate 9
  600   bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
Basic format
Transmission from the...

Chapter 6 Appendix — Technical information
206 - ENGLISH
Attention
 fIf a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed.  T ry
sending or receiving any command after 60 seconds.
 f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before
sending the next command. When transmitting a command which does not need a parameter , a colon (:) is not...

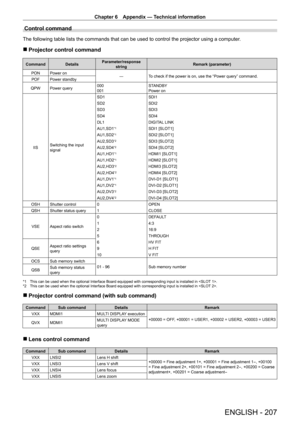

Chapter 6 Appendix — Technical information
ENGLISH - 207
Control command
The following table lists the commands that can be used to control the projector using a computer.
 rProjector control command
Command Details Parameter/response
string Remark (parameter)
PON Power on ―To check if the power is on, use the “Power query” command.
POF Power standby
QPW Power query 000
001STANDBY
Power on
IIS Switching the input
signal SD1
SDI1
SD2 SDI2
SD3 SDI3
SD4 SDI4
DL1 DIGITAL LINK
AU1,SD1
*1SDI1 [SLOT1]...

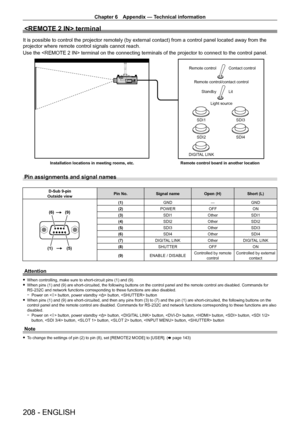

Chapter 6 Appendix — Technical information
208 - ENGLISH
 terminal
It is possible to control the projector remotely (by external contact) from a control panel located away from the
projector where remote control signals cannot reach.
Use the  terminal on the connecting terminals of the projector to connect to the control panel.
Remote control Contact controlRemote control/contact control Standby Lit
Light source
SDI1
SDI4
SDI2
DIGITAL LINK SDI3
Installation locations in meeting rooms, etc. Remote...

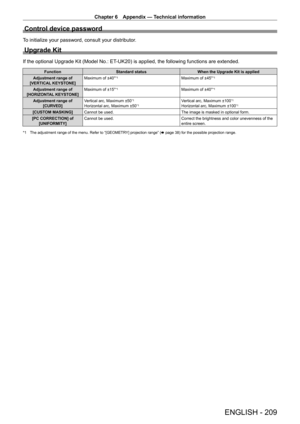

Chapter 6 Appendix — Technical information
ENGLISH - 209
Control device password
To initialize your password, consult your distributor.
Upgrade Kit
If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended.
FunctionStandard status When the Upgrade Kit is applied
Adjustment range of
[VERTICAL KEYSTONE] Maximum of ±40°
*1Maximum of ±45°*1
Adjustment range of
[HORIZONTAL KEYSTONE] Maximum of ±15°*1Maximum of ±40°*1
Adjustment range of
[CURVED] Vertical arc, Maximum...

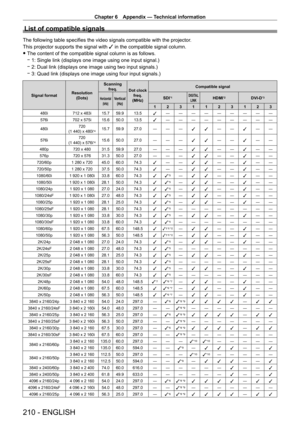

Chapter 6 Appendix — Technical information
210 - ENGLISH
List of compatible signals
The following table specifies the video signals compatible with the projector.
This projector supports the signal with  l in the compatible signal column.
 fThe content of the compatible signal column is as follows.
 g1: Single link (displays one image using one input signal.)
 g2: Dual link (displays one image using two input signals.)
 g3: Quad link (displays one image using four input signals.)
Signal format...
