Chapter 4 Settings — [MULTI DISPLAY] menu
ENGLISH - 151

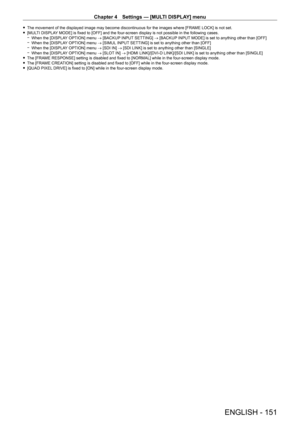

 fThe movement of the displayed image may become discontinuous for the images where [FRAME LOCK] is not set. f[MUL
TI DISPLAY MODE] is fixed to [OFF] and the four-screen display is not possible in the following cases.
 gWhen the [DISPLA

Y OPTION] menu → [BACKUP INPUT SETTING]  → [BACKUP INPUT MODE] is set to anything other than [OFF]
 gWhen the [DISPLA

Y OPTION] menu → [SIMUL INPUT SETTING] is set to anything other than [OFF]
 gWhen the [DISPLA

Y...

Chapter 4 Settings — [TEST PATTERN] menu
152 - ENGLISH

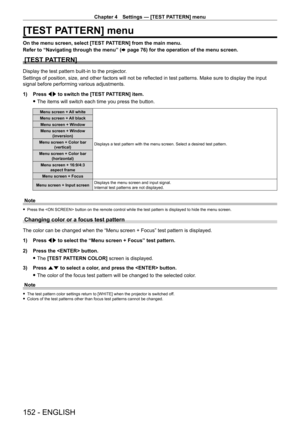

[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input
signal before performing various adjustments.
1)

Press
 qw to switch the [TEST PATTERN]...

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 153

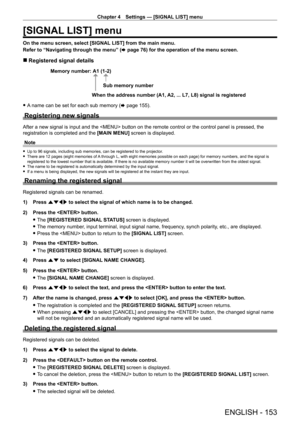

[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the address number (A1, A2, ... L7, L8) signal is registered Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   155).
Registering new signals
After a new signal is input and the  button on the remote...

Chapter 4 Settings — [SIGNAL LIST] menu
154 - ENGLISH

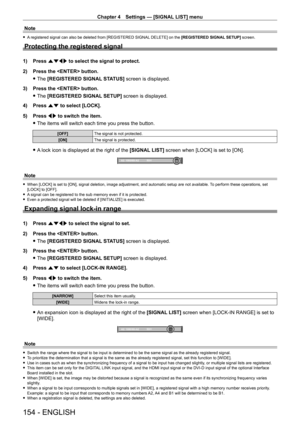

Note
 fA registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press  asqw to select the signal to protect.
2)
Press the  button.
 fThe

[REGISTERED SIGNAL STATUS] screen is displayed.
3)

Press the  button.
 fThe

[REGISTERED SIGNAL SETUP] screen is displayed.
4)

Press
 as to select [LOCK].
5)

Press
 qw to switch the item.
 fThe items will switch...

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 155
 fIn an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the
setting is set to [WIDE].

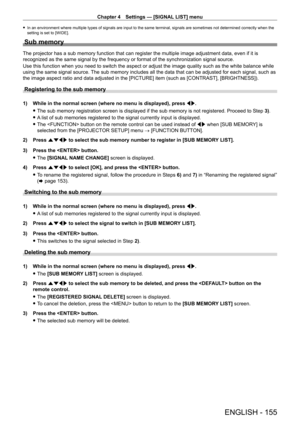

Sub memory
The projector has a sub memory function that can register the multiple image adjustment data, even if it is
recognized as the same signal by the frequency or format of the synchronization signal source.
Use this function when you need to switch the aspect or adjust the image...

Chapter 4 Settings — [SECURITY] menu
156 - ENGLISH

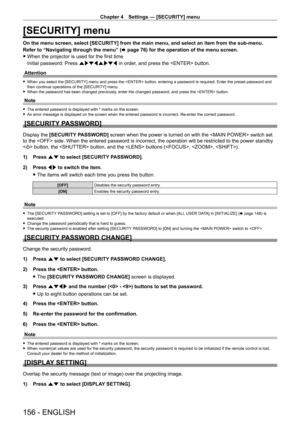

[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
 fWhen the projector is used for the first time
Initial password: Press  awsqawsq in order

, and press the  button.
Attention
 f When you select the [SECURITY] menu and press the  button, entering a password is required. Enter the preset password and...

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 157

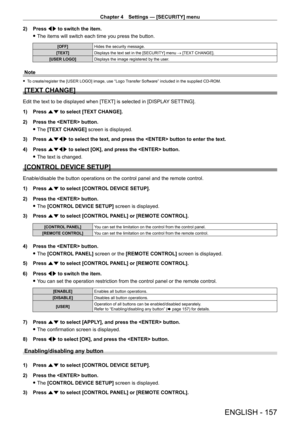

2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Hides the security message.
[TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE].
[USER LOGO] Displays the image registered by the user.
Note
 fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING].
1)
Press...

Chapter 4 Settings — [SECURITY] menu
158 - ENGLISH
4) Press the  button.
 fThe

[CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5)

Press
 as to select [CONTROL PANEL] or [REMOTE CONTROL].
6)

Press
 qw to switch [USER].
7)

Press
 as to select the button item to set.
 fWhen [INPUT

 SELECT BUTTON] is selected, press the  button, and then press as to select
the button to set.

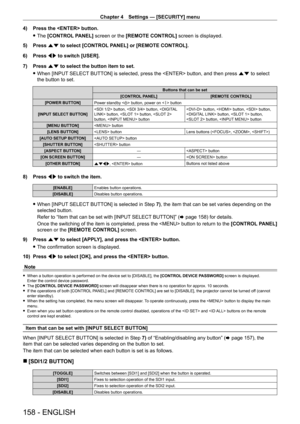

Buttons that can be set
[CONTROL PANEL] [REMOTE CONTROL]
[POWER BUTTON] Power standby  button, power...

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 159

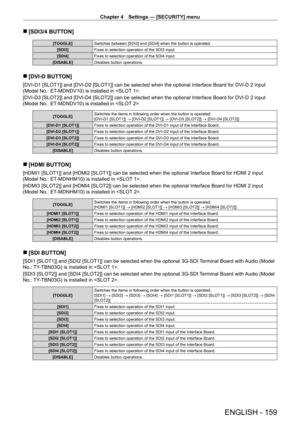

 r[SDI3/4 BUTT ON]
[TOGGLE] Switches between [SDI3] and [SDI4] when the button is operated.
[SDI3] Fixes to selection operation of the SDI3 input.
[SDI4] Fixes to selection operation of the SDI4 input.
[DISABLE] Disables button operations.
 r[DVI-D BUTT ON]
[DVI-D1 [SLOT1]] and [DVI-D2 [SLOT1]] can be selected when the optional Interface Board for DVI-D 2 input
(Model No.: ET
-

MDNDV10) is installed in .
[DVI-D3 [SLOT2]] and [DVI-D4 [SLOT2]] can be...

Chapter 4 Settings — [SECURITY] menu
160 - ENGLISH

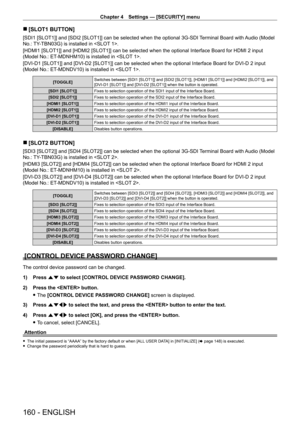

 r[SLOT1 BUTT ON]
[SDI1 [SLOT1]] and [SDI2 [SLOT1]] can be selected when the optional 3G-SDI  Terminal Board with Audio (Model
No.: TY
-
 TBN03G) is installed in .
[HDMI1 [SLOT1]] and [HDMI2 [SLOT1]] can be selected when the optional Interface Board for HDMI 2 input
(Model No.: ET
-

MDNHM10) is installed in .
[DVI-D1 [SLOT1]] and [DVI-D2 [SLOT1]] can be selected when the optional Interface Board for DVI-D 2 input
(Model No.: ET
-

MDNDV10) is...
