Chapter 5 Maintenance — Troubleshooting
ENGLISH - 191

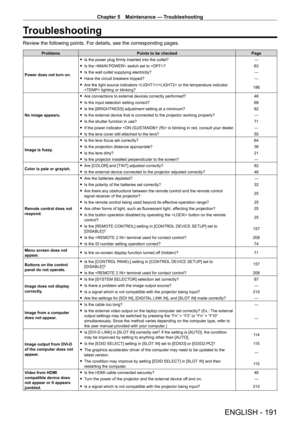

Troubleshooting
Review the following points. For details, see the corresponding pages.
ProblemsPoints to be checked Page
Power does not turn on.
 f Is the power plug firmly inserted into the outlet? ―
 fIs the  switch set to ? 63
 fIs the wall outlet supplying electricity? ―
 fHave the circuit breakers tripped? ―
 fAre the light source indicators / or the temperature indicator
 lighting or blinking? 186
No image appears.
 f Are connections to...

Chapter 5 Maintenance — Troubleshooting
192 - ENGLISH
ProblemsPoints to be checked Page
Lens shift cannot be
adjusted.
 f Perform [LENS CALIBRA

TION]. 144
 fIs the Fixed-focus Lens (Model No.: ET-

D75LE50) attached?―
Geometric adjustment is
not possible.
 f Is [QUAD PIXEL

 DRIVE] set to [OFF]? 91
 fIs [SIMUL

 INPUT SETTING] set to [AUTO(x2-speed)] or [AUTO(x4-speed)]? 91
Cannot control the
projector with Art-Net.
 f Are the connections between the twisted-pair-cable transmitter and an external...

Chapter 5 Maintenance — Self-diagnosis display
ENGLISH - 193
Self-diagnosis display

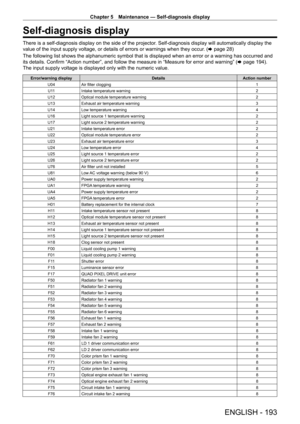

There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the
value of the input supply voltage, or details of errors or warnings when they occur. (x
  page   28)
The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and
its details. Confirm “Action number”, and follow the measure in “Measure for error and...

Chapter 5 Maintenance — Self-diagnosis display
194 - ENGLISH

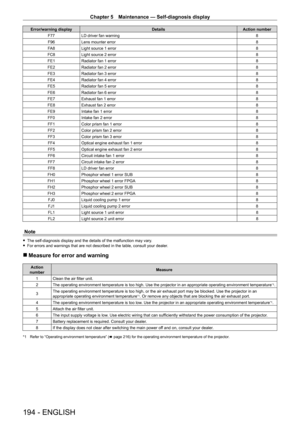

Error/warning displayDetailsAction number
F77 LD driver fan warning 8
F96 Lens mounter error 8
FA 8 Light source 1 error 8
FC8 Light source 2 error 8
FE1 Radiator fan 1 error 8
FE2 Radiator fan 2 error 8
FE3 Radiator fan 3 error 8
FE4 Radiator fan 4 error 8
FE5 Radiator fan 5 error 8
FE6 Radiator fan 6 error 8
FE7 Exhaust fan 1 error 8
FE8 Exhaust fan 2 error 8
FE9 Intake fan 1 error 8
FF0 Intake fan 2 error 8
FF1 Color prism fan 1 error 8
FF2...

ENGLISH - 195

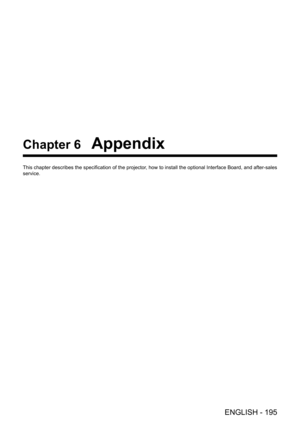

Chapter 6 Appendix
This chapter describes the specification of the projector, how to install the optional Interface Board, and after-sales
service.

Chapter 6 Appendix — Technical information
196 - ENGLISH
Technical information

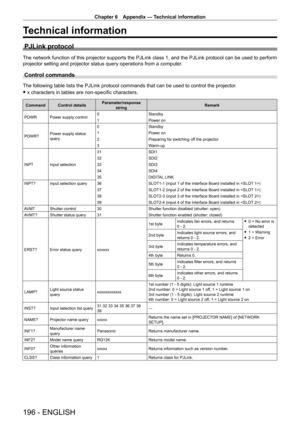

PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform
projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector .
 fx characters in tables are non-specific characters.
Command Control details Parameter/response
string...

Chapter 6 Appendix — Technical information
ENGLISH - 197

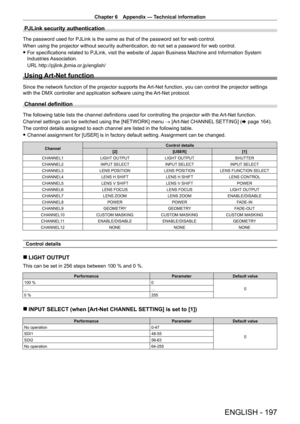

PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a password for web control.
 fFor specifications related to PJLink, visit the website of Japan Business Machine and Information System
Industries

Association.
URL http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the...

Chapter 6 Appendix — Technical information
198 - ENGLISH

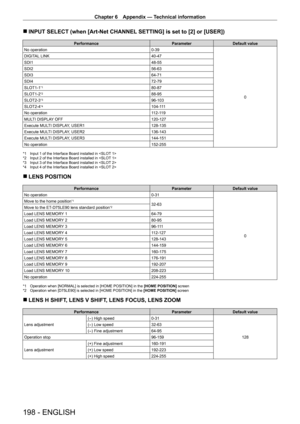

 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set to [2] or [USER])
Performance ParameterDefault value
No operation 0
- 39
0
DIGITAL LINK
40
- 47
SDI1 48
- 55
SDI2 56
- 63
SDI3 64
- 71
SDI4 72
- 79
SLOT1-1
*180-87
SLOT1-2
*288-95
SLOT2-3
*396-103
SLOT2-4
*4104-111
No operation 1
12 - 119
MULTI DISPLAY OFF 120
- 127
Execute MULTI DISPLAY, USER1 128
- 135
Execute MULTI DISPLAY, USER2 136
- 143
Execute MULTI DISPLAY, USER3 144
- 151
No operation...

Chapter 6 Appendix — Technical information
ENGLISH - 199

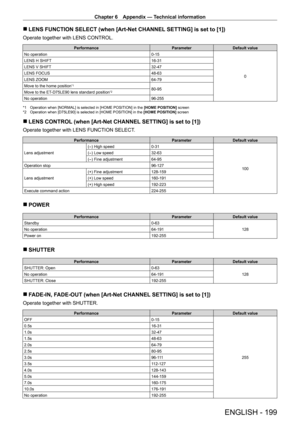

 rLENS FUNCTION SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Operate together with LENS CONTROL.
PerformanceParameterDefault value
No operation 0
- 15
0
LENS H SHIFT
16
- 31
LENS V SHIFT 32
- 47
LENS FOCUS 48
- 63
LENS ZOOM 64
- 79
Move to the home position
*180-95
Move to the ET-
D75LE90 lens standard position*2
No operation 96 - 255
*1 Operation when [NORMAL] is selected in [HOME POSITION] in the [HOME POSITION] screen
*2  Operation...

Chapter 6 Appendix — Technical information
200 - ENGLISH

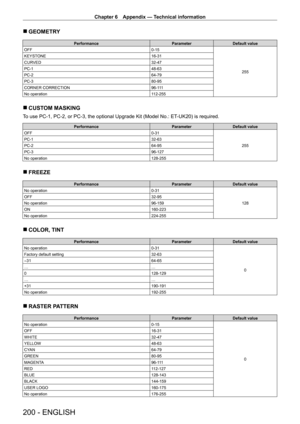

 rGEOMETR Y
Performance ParameterDefault value
OFF 0
- 15
255
KEYSTONE
16
- 31
CURVED 32
- 47
PC-1 48
- 63
PC-2 64
- 79
PC-3 80
- 95
CORNER CORRECTION 96
- 111
No operation 112
- 255
 rCUSTOM MASKING
To use PC-1, PC-2, or PC-3, the optional Upgrade Kit (Model No.: ET- UK20) is required.
PerformanceParameterDefault value
OFF 0
- 31
255
PC-1
32
- 63
PC-2 64
- 95
PC-3 96
- 127
No operation 128
- 255
 rFREEZE
Performance ParameterDefault value
No...
