Chapter 4 Settings — [NETWORK] menu
ENGLISH - 161

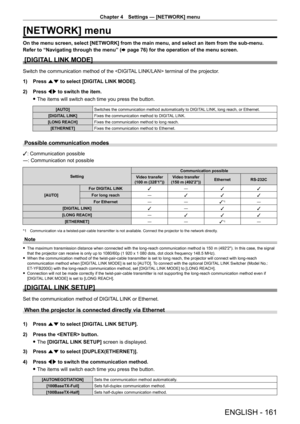

[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the  terminal of the projector.
1)

Press
 as to select [DIGITAL LINK MODE].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Switches the...

Chapter 4 Settings — [NETWORK] menu
162 - ENGLISH

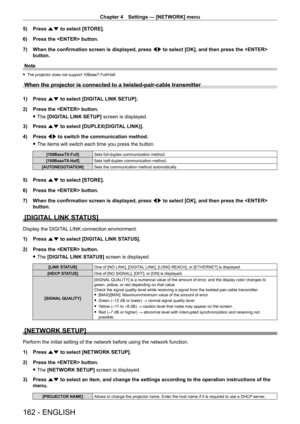

5) Press as to select [STORE].
6)
Press the  button.
7)


When the confirmation screen is displayed, press  qw

 to select [OK], and then press the
button.
Note
 f The projector does not support 10BaseT  Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1) Press as to select [DIGITAL LINK SETUP].
2)
Press the  button.
 fThe

[DIGITAL LINK SETUP] screen is displayed.
3)

Press
 as to select [DUPLEX(DIGITAL LINK)].
4)...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 163

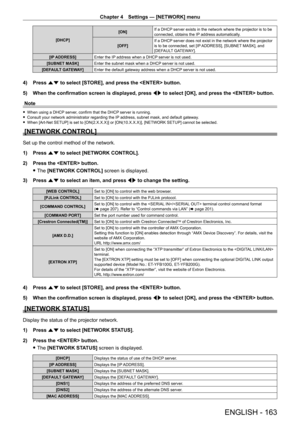

[DHCP][ON]
If a DHCP server exists in the network where the projector is to be
connected, obtains the IP address automatically.
[OFF] If a DHCP server does not exist in the network where the projector
is to be connected, set [IP ADDRESS], [SUBNET MASK], and
[DEFAULT GATEWAY].
[IP ADDRESS] Enter the IP address when a DHCP server is not used.
[SUBNET MASK] Enter the subnet mask when a DHCP server is not used.
[DEFAULT GATEWAY] Enter the default gateway...

Chapter 4 Settings — [NETWORK] menu
164 - ENGLISH

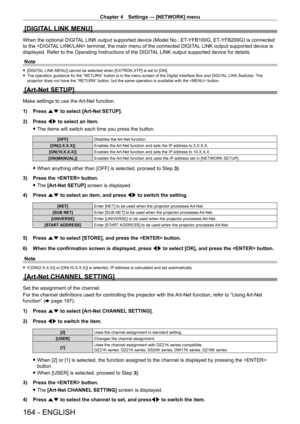

[DIGITAL LINK MENU]
When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET- YFB200G) is connected
to the  terminal, the main menu of the connected DIGITAL LINK output supported device is
displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details.
Note
 f [DIGITAL LINK MENU] cannot be selected when [EXTRON XTP] is set to [ON]. fThe operation guidance for the “RETURN” button is in the...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 165

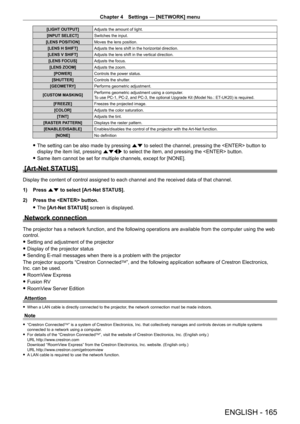

[LIGHT OUTPUT]Adjusts the amount of light.
[INPUT SELECT] Switches the input.
[LENS POSITION] Moves the lens position.
[LENS H SHIFT] Adjusts the lens shift in the horizontal direction.
[LENS V SHIFT] Adjusts the lens shift in the vertical direction.
[LENS FOCUS] Adjusts the focus.
[LENS ZOOM] Adjusts the zoom.
[POWER] Controls the power status.
[SHUTTER] Controls the shutter.
[GEOMETRY] Performs geometric adjustment.
[CUSTOM MASKING] Performs geometric...

Chapter 4 Settings — [NETWORK] menu
166 - ENGLISH

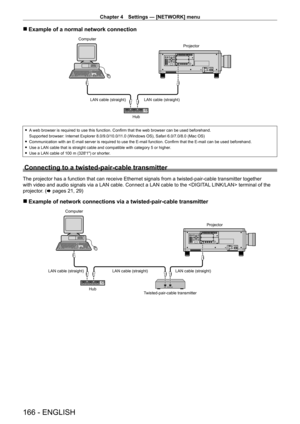

 rExample of a normal network connection
Computer
Projector
LAN cable (straight) LAN cable (straight) Hub
 fA web browser is required to use this function. Confirm that the web browser can be used beforehand.
Supported browser: Internet Explorer 8.0/9.0/10.0/11.0 (Windows OS), Safari 6.0/7.0/8.0 (Mac OS)
 f Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand.
 fUse a LAN cable that is...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 167

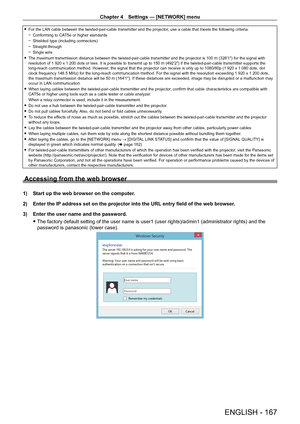

 fFor the LAN cable between the twisted-pair-cable transmitter and the projector , use a cable that meets the following criteria:
 gConforming to CA

T5e or higher standards
 gShielded type (including connectors)
 gStraight-through
 gSingle wire
 fThe maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100

  m (328'1") for the signal with
resolution of 1
  920   x   1   200 dots or less. It is possible...

Chapter 4 Settings — [NETWORK] menu
168 - ENGLISH

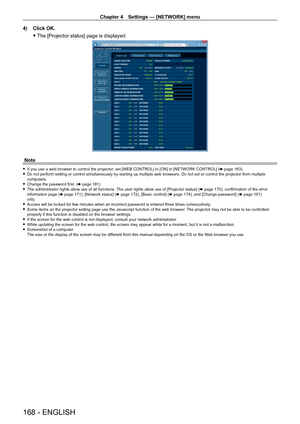

4) Click OK.
 fThe [Projector status] page is displayed.
Note
 f If you use a web browser to control the projector , set [WEB CONTROL] to [ON] in [NETWORK CONTROL] ( x   page   163). fDo not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple
computers.
 fChange the password first. ( x

  page   181)
 fThe administrator rights allow use of all functions.

The user rights allow...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 169

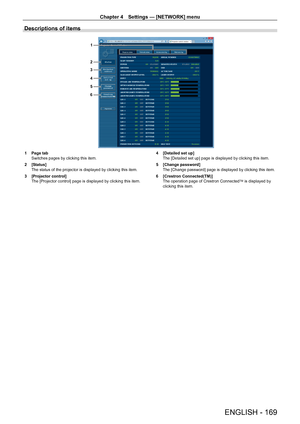

Descriptions of items
1
2
3
4
5
6
1 Page tab
Switches pages by clicking this item.
2

[Status]
The status of the projector is displayed by clicking this item.
3


[Projector control]
The [Projector control] page is displayed by clicking this item. 4

 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
5

[Change password]
The [Change password] page is displayed by clicking this item.
6


[Crestron Connected(TM)]
The...

Chapter 4 Settings — [NETWORK] menu
170 - ENGLISH

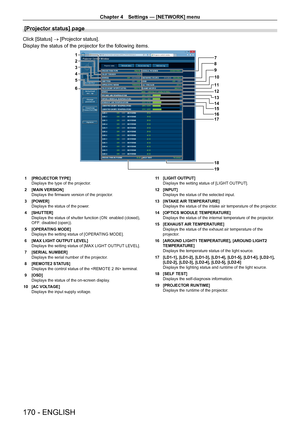

[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
14
17
187
10
8
9
1
2
3
4
19
5
6
11
12
13
16 15
1 [PROJECT
OR TYPE]
Displays the type of the projector.
2

[MAIN VERSION]
Displays the firmware version of the projector

.
3

[POWER]
Displays the status of the power

.
4

[SHUTTER]
Displays the status of shutter function (ON: enabled (closed),
OFF: disabled (open)).
5


[OPERA...
