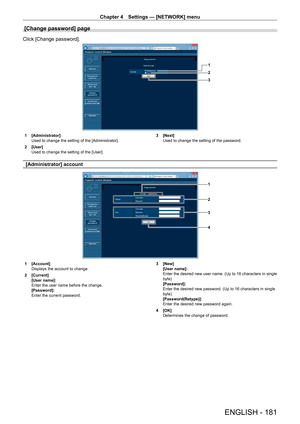

Panasonic Projector PT-RQ13K User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 181
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2

[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3

 [New]
[User name]:
Enter the desired...

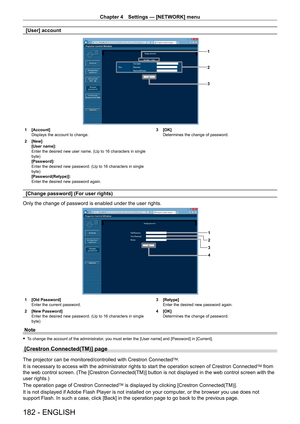

Chapter 4 Settings — [NETWORK] menu
182 - ENGLISH
[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4 3
1 [Old...

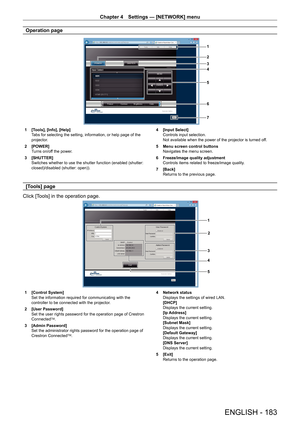

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 183
Operation page
1
2
3
4
5
6
7
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2

[POWER]
T

urns on/off the power.
3

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 4

 [Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
5

Menu screen control buttons
Navigates the menu screen.
6...

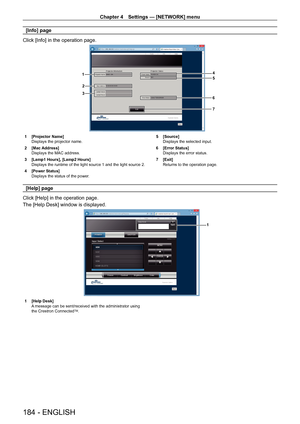

Chapter 4 Settings — [NETWORK] menu
184 - ENGLISH
[Info] page
Click [Info] in the operation page.
4
5
6
1
2
3
7
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp1 Hours], [Lamp2 Hours]
Displays the runtime of the light source 1 and the light source 2.
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected input.
6

[Error Status]
Displays the error status.
7


[Exit]
Returns to the operation page.
[Help] page
Click...

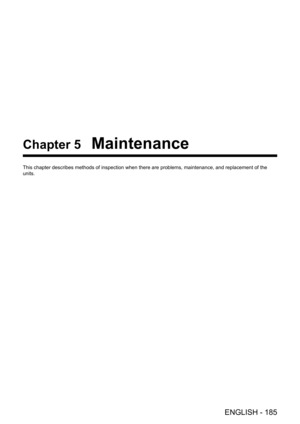

ENGLISH - 185
Chapter 5 Maintenance
This chapter describes methods of inspection when there are problems, maintenance, and replacement of the
units.

Chapter 5 Maintenance — Light source/temperature/filter indicators
186 - ENGLISH

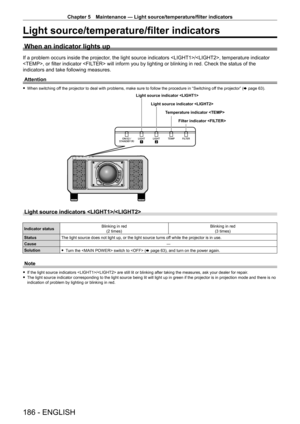

Light source/temperature/filter indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicators /, temperature indicator
, or filter indicator  will inform you by lighting or blinking in red. Check the status of the
indicators and take following measures.Attention
 f When switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the...

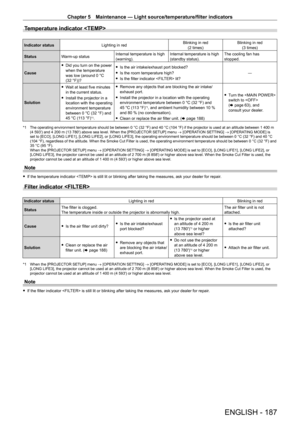

Chapter 5 Maintenance — Light source/temperature/filter indicators
ENGLISH - 187
Temperature indicator
Indicator statusLighting in red Blinking in red
(2 times) Blinking in red
(3 times)
Status Warm-up status Internal temperature is high
(warning).Internal temperature is high
(standby status).The cooling fan has
stopped.
Cause
 f Did you turn on the power
when the temperature
was low (around 0

  °C
(32
  °F))?
 fIs the air intake/exhaust port blocked?
 fIs the room temperature high?
 fIs the...

Chapter 5 Maintenance — Maintenance/replacement
188 - ENGLISH

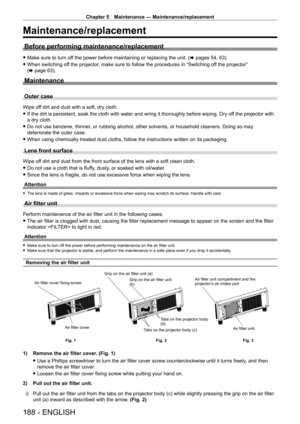

Maintenance/replacement
Before performing maintenance/replacement
 fMake sure to turn of f the power before maintaining or replacing the unit. ( x pages 54, 63)
 fWhen switching of

f the projector, make sure to follow the procedures in “Switching off the projector”
(x
  page   63).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thoroughly before...

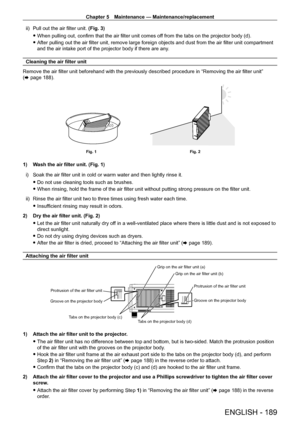

Chapter 5 Maintenance — Maintenance/replacement
ENGLISH - 189
ii) Pull out the air filter unit. (Fig. 3)
 fWhen pulling out, confirm that the air filter unit comes of

f from the tabs on the projector body (d).
 fAfter pulling out the air filter unit, remove large foreign objects and dust from the air filter unit compartment
and the air intake port of the projector body if there are any

.
Cleaning the air filter unit
Remove the air filter unit beforehand with the previously described procedure in...

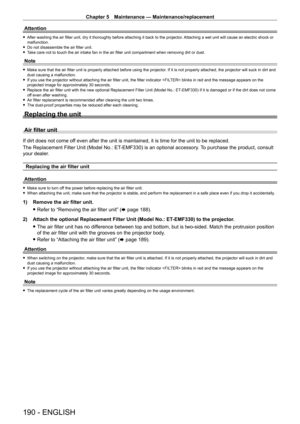

Chapter 5 Maintenance — Maintenance/replacement
190 - ENGLISH
Attention
 fAfter washing the air filter unit, dry it thoroughly before attaching it back to the projector .  Attaching a wet unit will cause an electric shock or
malfunction.
 f Do not disassemble the air filter unit. fT

ake care not to touch the air intake fan in the air filter unit compartment when removing dirt or dust.
Note
 f Make sure that the air filter unit is properly attached before using the projector . If it is not properly...
