Panasonic Projector PT-RQ13K User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 171

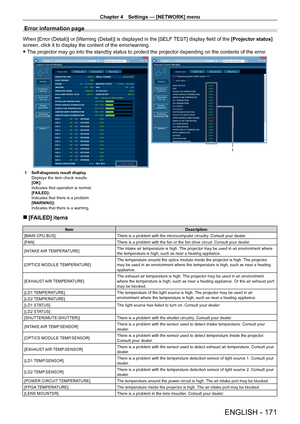

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status]
screen, click it to display the content of the error/warning.
 fThe projector may go into the standby status to protect the projector depending on the contents of the error .
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[F
AILED]:
Indicates that there is...

Chapter 4 Settings — [NETWORK] menu
172 - ENGLISH

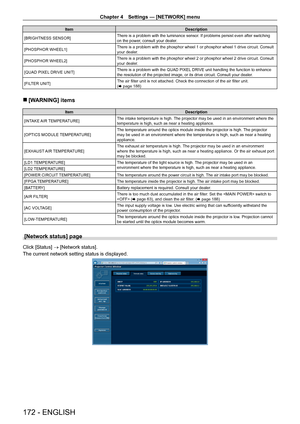

ItemDescription
[BRIGHTNESS SENSOR] There is a problem with the luminance sensor. If problems persist even after switching
on the power, consult your dealer.
[PHOSPHOR WHEEL1] There is a problem with the phosphor wheel 1 or phosphor wheel 1 drive circuit. Consult
your dealer.
[PHOSPHOR WHEEL2] There is a problem with the phosphor wheel 2 or phosphor wheel 2 drive circuit. Consult
your dealer.
[QUAD PIXEL DRIVE UNIT] There is a problem with the QUAD...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 173

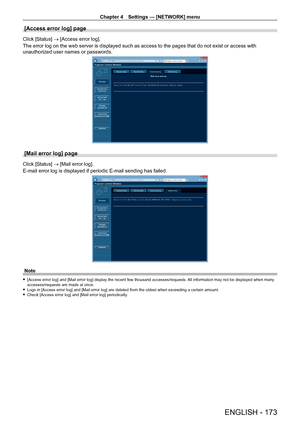

[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with
unauthorized user names or passwords.
[Mail error log] page
Click [Status] → [Mail error log].
E-mail error log is displayed if periodic E-mail sending has failed.
Note
 f[Access error log] and [Mail error log] display the recent few thousand accesses/requests.  All information may not be...

Chapter 4 Settings — [NETWORK] menu
174 - ENGLISH

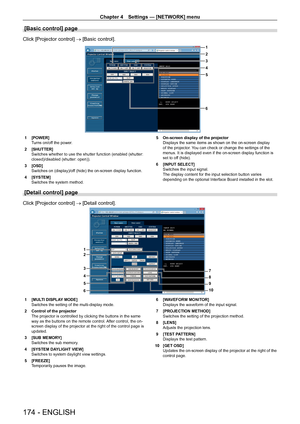

[Basic control] page
Click [Projector control] → [Basic control].
1
2
3
4
6
5
1 [POWER]
T
urns on/off the power.
2

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)).
3


[OSD]
Switches on (display)/of

f (hide) the on-screen display function.
4

[SYSTEM]
Switches the system method. 5

 On-screen display of the projector
Displays the same items as shown on the on-screen display
of the...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 175

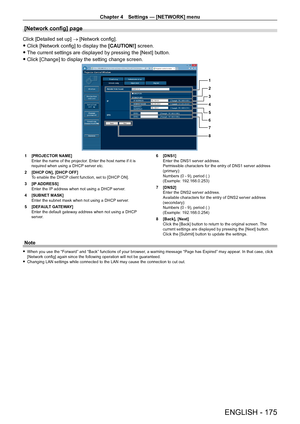

[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fThe current settings are displayed by pressing the [Next] button.
 fClick [Change] to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECT OR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON], [DHCP OFF]
To enable the DHCP client function, set to...

Chapter 4 Settings — [NETWORK] menu
176 - ENGLISH

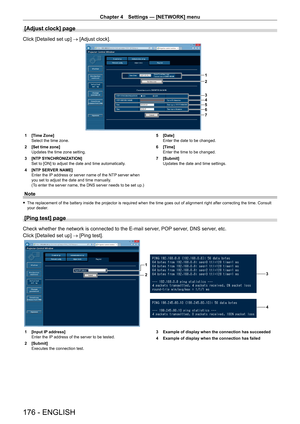

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
2

[Set time zone]
Updates the time zone setting.
3


[NTP
  SYNCHRONIZATION]
Set to [ON] to adjust the date and time automatically.
4

[NTP
  SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.) 5
 [Date]
Enter the...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 177

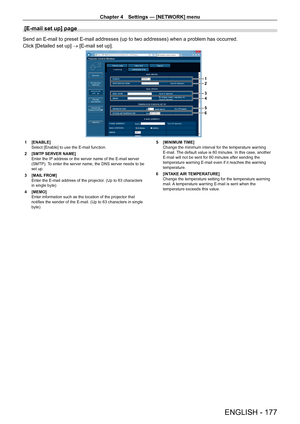

[E-mail set up] page
Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred.
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [Enable] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the E-mail address of the projector. (Up to 63...

Chapter 4 Settings — [NETWORK] menu
178 - ENGLISH
8
7
9
8
7

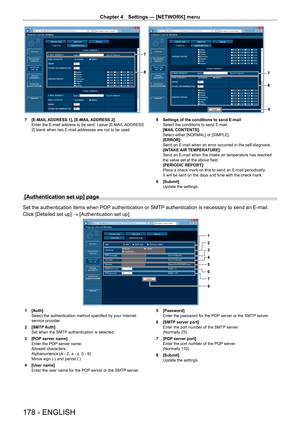

7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS
2] blank when two E-mail addresses are not to be used. 8
 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL
 CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[INTAKE AIR TEMPERATURE]:
Send an E-mail when the intake air temperature has...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 179
Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== P anas onic  pr ojec t or  r epor t ( CO NF I G URE )  ===
P r ojec t or  T y pe  :  RQ 13K
S er ial No  :  123456789012
----- E-mail set up dat a -----
T EMPERAT URE WARNING  SET UP
MINIMUM TIME  at  [  60]  m inut es  int er v al
I NT A K E  A I R T E M P E RA T URE   O v er  [  46 degC /  114 degF  ]
E...

Chapter 4 Settings — [NETWORK] menu
180 - ENGLISH

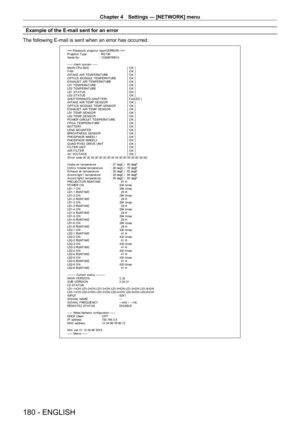

Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic  pr ojec t or  r epor t ( E RRO R)  ===
P r ojec t or  T y pe  :  RQ 13K
S er ial No  :  123456789012
----- check syst em -----
M A I N CP U B US   [ O K ]
F A N  [ O K ]
INT AKE AIR T EMPERAT URE  [ O K ]
O PT ICS MO DULE T EMPERAT URE  [ O K ]
EXHAUST  AIR T EMPERAT URE  [ O K ]
LD1 T EMPERAT URE  [ O K ]
LD2 T EMPERAT URE  [ O K ]
LD1 ST AT...
