Panasonic Projector PT-RQ13K User Manual

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 81

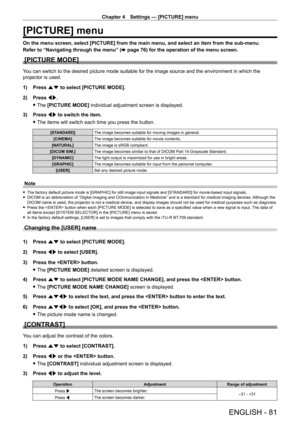

[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the
projector is used.
1)

Press
 as to select [PICTURE MODE].
2)

Press
 qw.
 fThe

[PICTURE MODE] individual adjustment screen is...

Chapter 4 Settings — [PICTURE] menu
82 - ENGLISH

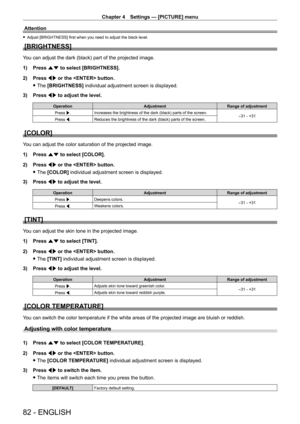

Attention
 fAdjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1)

Press
 as to select [BRIGHTNESS].
2)

Press
 qw or the  button.
 fThe

[BRIGHTNESS] individual adjustment screen is displayed.
3)

Press
 qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Increases the brightness of the dark (black) parts of the screen.
-31 - +31
Press q....

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 83

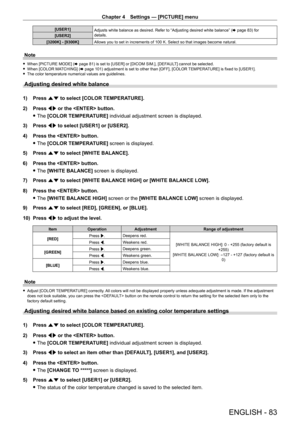

[USER1]Adjusts white balance as desired. Refer to “Adjusting desired white balance” ( x
  page   83) for
details.
[USER2]
[3200K] - [9300K] Allows you to set in increments of 100
  K. Select so that images become natural.
Note
 fWhen [PICTURE MODE] ( x   page   81) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected. fWhen [COLOR MA
TCHING] (x   page   101) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
 fThe...

Chapter 4 Settings — [PICTURE] menu
84 - ENGLISH

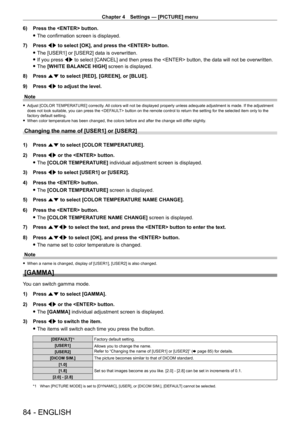

6) Press the  button.
 fThe confirmation screen is displayed.
7)


Press
 qw to select [OK], and press the  button.
 fThe [USER1] or [USER2] data is overwritten.
 fIf you press

qw to select [CANCEL] and then press the  button, the data will not be overwritten.
 fThe

[WHITE BALANCE HIGH] screen is displayed.
8)

Press
 as to select [RED], [GREEN], or [BLUE].
9)

Press
 qw to adjust the level.
Note
 f Adjust [COLOR  TEMPERATURE] correctly. All...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 85
Note
 fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices.  Although the
DICOM name is used, the projector is not a medical device, and display images should not be used for medical purposes such as diagnosis.

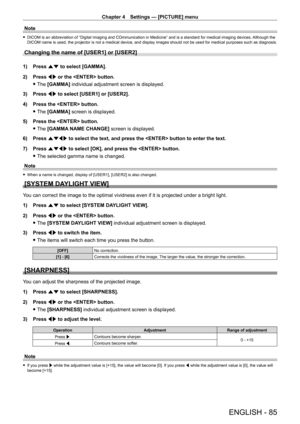

Changing the name of [USER1] or [USER2]
1) Press  as to select [GAMMA].
2)
Press
 qw or the  button.
 fThe

[GAMMA] individual adjustment screen is displayed.
3)

Press
 qw...

Chapter 4 Settings — [PICTURE] menu
86 - ENGLISH

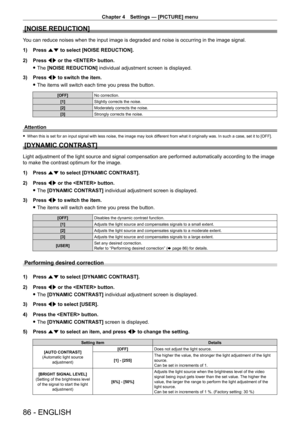

[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1)
Press
 as to select [NOISE REDUCTION].
2)

Press
 qw or the  button.
 fThe

[NOISE REDUCTION] individual adjustment screen is displayed.
3)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] No correction.
[1] Slightly corrects the noise.
[2] Moderately corrects the noise.
[3] Strongly...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 87

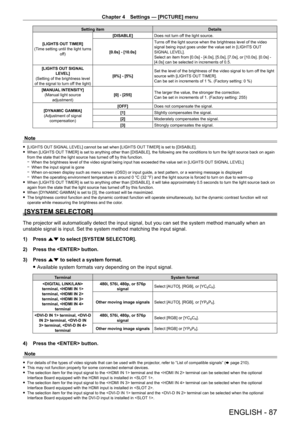

Setting itemDetails
[LIGHTS OUT TIMER]
(Time setting until the light turns  off) [DISABLE]
Does not turn off the light source.
[0.0s] - [10.0s] Turns off the light source when the brightness level of the video
signal being input goes under the value set in [LIGHTS OUT
SIGNAL LEVEL].
Select an item from [0.0s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.0s] -
[4.0s] can be selected in increments of 0.5.
[LIGHTS OUT SIGNAL  LEVEL]
(Setting of the brightness...

Chapter 4 Settings — [PICTURE] menu
88 - ENGLISH

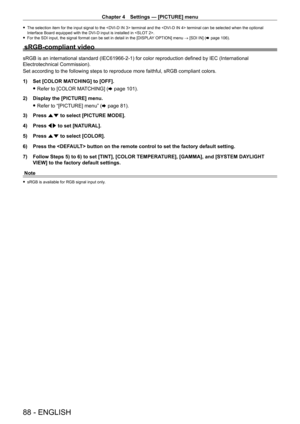

 fThe selection item for the input signal to the  terminal and the  terminal can be selected when the optional
Interface Board equipped with the DVI
- D input is installed in .
 fFor the SDI input, the signal format can be set in detail in the [DISPLA Y

 OPTION] menu → [SDI IN] (x
  page   106).
sRGB-compliant video
sRGB is an international standard (IEC61966-2-1) for color reproduction defined by IEC (International
Electrotechnical Commission).
Set...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 89
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
Note
 f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the  terminal, adjust the shift and aspect from the menu of DIGIT AL LINK output supported device first.
[SHIFT]
Move the image position...

Chapter 4 Settings — [POSITION] menu
90 - ENGLISH

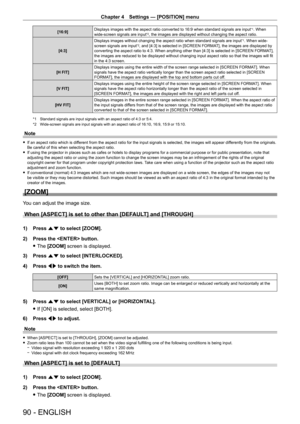

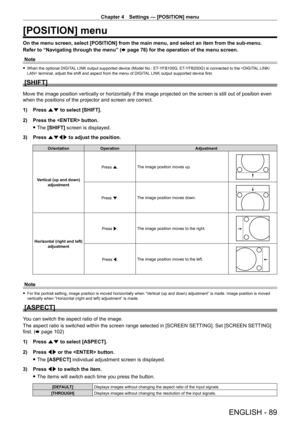

[16:9]Displays images with the aspect ratio converted to 16:9 when standard signals are input*1. When
wide-screen signals are input*2, the images are displayed without changing the aspect ratio.
[4:3] Displays images without changing the aspect ratio when standard signals are input
*1. When wide-
screen signals are input*2, and [4:3] is selected in [SCREEN FORMAT], the images are displayed by
converting the aspect ratio to 4:3. When anything other than...
