Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 71
Note

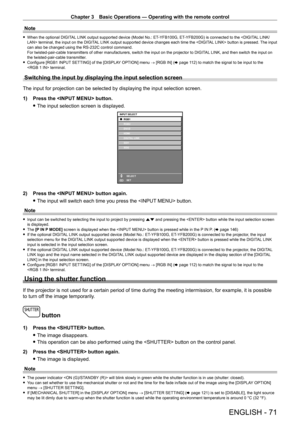

 fWhen the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the  terminal, the input on the DIGITAL LINK output supported device changes each time the  button is pressed. The input
can also be changed using the RS
- 232C control command.
For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGIT AL LINK, and then switch the input...

Chapter 3 Basic Operations — Operating with the remote control
72 - ENGLISH

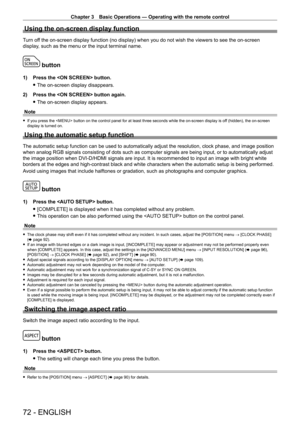

Using the on-screen display function
Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen
display, such as the menu or the input terminal name.
 button
1) Press the  button.
 fThe on-screen display disappears.
2)


Press the  button again.
 fThe on-screen display appears.
Note
 f If you press the  button on the control panel for at least three seconds while the on-screen...

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 73

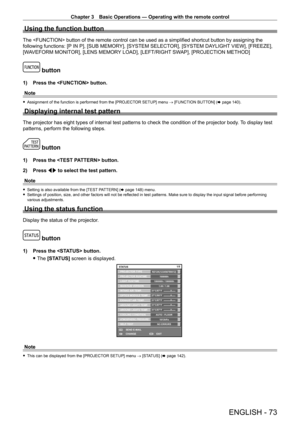

Using the function button
The  button of the remote control can be used as a simplified shortcut button by assigning the
following functions: [P IN P], [SUB MEMORY], [SYSTEM SELECTOR], [SYSTEM DAYLIGHT VIEW], [FREEZE],
[WAVEFORM MONITOR], [LENS MEMORY LOAD], [LEFT/RIGHT SWAP], [PROJECTION METHOD]
 button
1) Press the  button.
Note
 f Assignment of the function is performed from the [PROJECT OR SETUP] menu → [FUNCTION BUTTON] (x...

Chapter 3 Basic Operations — Operating with the remote control
74 - ENGLISH

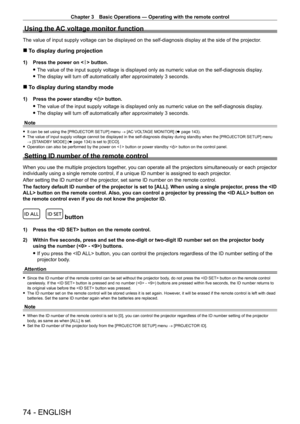

Using the AC voltage monitor function
The value of input supply voltage can be displayed on the self-diagnosis\
 display at the side of the projector.
 rTo display during projection
1) Press the power on < b > button.
 fThe value of the input supply voltage is displayed only as numeric value\
 on the self-diagnosis display

.
 fThe display will turn of

f automatically after approximately 3 seconds.
 rTo display during standby...

ENGLISH - 75
Chapter 4 Settings
This chapter describes the settings and adjustments you can make using t\
he on-screen menu.

Chapter 4 Settings — Menu navigation
76 - ENGLISH
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe

[MAIN MENU] screen is displayed.
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION 3D SETTINGS
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
P IN P
ENTER
2) Press  as...

Chapter 4 Settings — Menu navigation
ENGLISH - 77

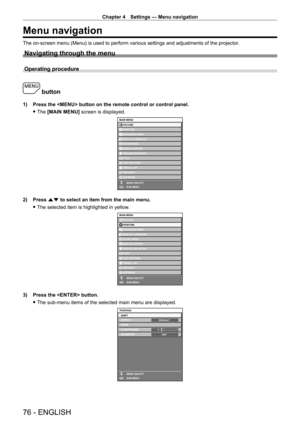

4) Press as to select a sub-menu, and press qw or the  button to change or adjust settings.
 fSome items will switch in order as follows each time you press  qw

.
ABC
 fFor some items, press  qw to display an individual adjustment screen with a bar scale as shown be\
low.
0CONTRAST
ADJUST
Note
 fPressing the  button while the menu screen is displayed returns to the previous menu. fDepending on the signals to be input to the projector
, some items or...

Chapter 4 Settings — Menu navigation
78 - ENGLISH
Main menu itemPage
[DISPLAY LANGUAGE] 101
[3D SETTINGS]102
[DISPLAY OPTION]107
[PROJECTOR SETUP]125
[P IN P]146
[TEST PATTERN]148
[SIGNAL LIST]149
[SECURITY]152
[NETWORK]156
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [STANDARD]
*182
[CONTRAST] [0]
*282
[BRIGHTNESS] [0]
*283
[COLOR] [2]
*283
[TINT] [-2]
*283
[COLOR...

Chapter 4 Settings — Menu navigation
ENGLISH - 79
Sub-menu itemFactory defaultPage

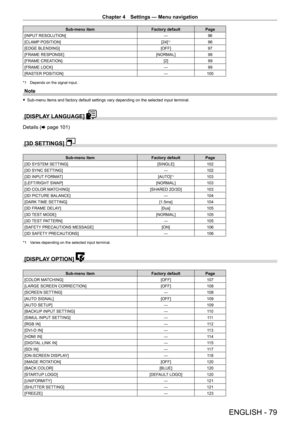

[INPUT RESOLUTION] ―96
[CLAMP POSITION] [24]
*196
[EDGE BLENDING] [OFF]97
[FRAME RESPONSE] [NORMAL]98
[FRAME CREATION] [2]99
[FRAME LOCK] ―99
[RASTER POSITION] ―100
*1 Depends on the signal input.
Note
 fSub-menu items and factory default settings vary depending on the select\
ed input terminal.

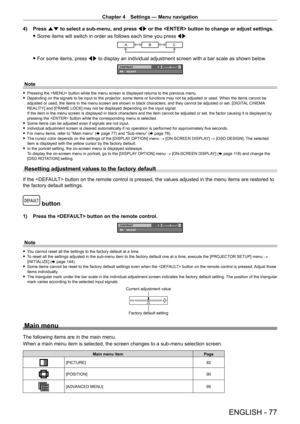

[DISPLAY LANGUAGE]
Details (x page 101)
[3D SETTINGS]
Sub-menu item Factory defaultPage
[3D SYSTEM SETTING] [SINGLE]102
[3D...

Chapter 4 Settings — Menu navigation
80 - ENGLISH
Sub-menu itemFactory defaultPage
[WAVEFORM MONITOR] [OFF]123
[CUT OFF] ―124

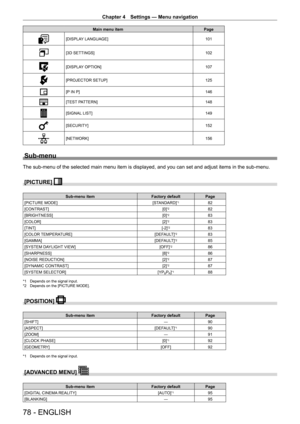

[PROJECTOR SETUP]
Sub-menu item Factory defaultPage
[PROJECTOR ID] [ALL]125
[PROJECTION METHOD] [FRONT/FLOOR]125
[OPERATION SETTING] ―125
[LIGHT OUTPUT] [100.0%]129
[BRIGHTNESS CONTROL] ―130
[STANDBY MODE] [NORMAL]134
[NO SIGNAL SHUT-OFF] [DISABLE]134
[NO SIGNAL LIGHTS-OUT] [DISABLE]134
[INITIAL STARTUP] [LAST MEMORY]135
[STARTUP INPUT SELECT] [LAST USED]135
[DATE AND TIME] ―135...
