Panasonic Projector PT-RS30K User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 171

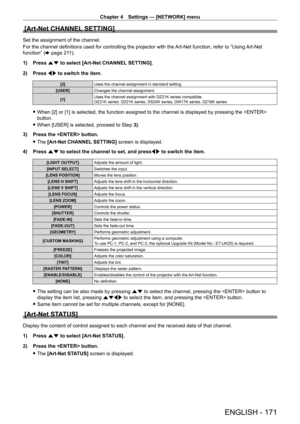

[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net
function” (x
  page   211).
1)

Press
 as to select [Art-Net CHANNEL SETTING].
2)

Press
 qw to switch the item.
[2] Uses the channel assignment in standard setting.
[USER] Changes the channel assignment.
[1] Uses the channel assignment with DZ21K series compatible.
DZ21K...

172 - ENGLISH

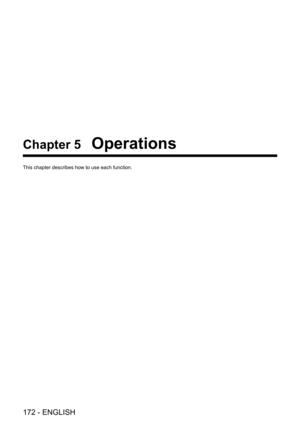

Chapter 5 Operations
This chapter describes how to use each function.

Chapter 5 Operations — Network connection
ENGLISH - 173

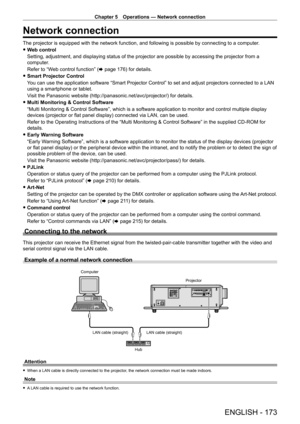

Network connection
The projector is equipped with the network function, and following is possible by connecting to a computer.
 fW

eb control
Setting, adjustment, and displaying status of the projector are possible\
 by accessing the projector from a
computer.
Refer to “Web control function” (x
  page   176) for details.
 fSmart Projector Control
Y

ou can use the application software “Smart Projector Control” to set and adjust projectors...

Chapter 5 Operations — Network connection
174 - ENGLISH

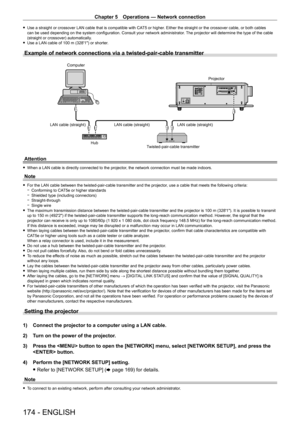

 fUse a straight or crossover LAN cable that is compatible with CA T5 or higher . Either the straight or the crossover cable, or both cables
can be used depending on the system configuration. Consult your network administrator . The projector will determine the type of the cable
(straight or crossover) automatically.
 f Use a LAN cable of 100

  m (328'1") or shorter.
Example of network connections via a twisted-pair-cable transmitter...

Chapter 5 Operations — Network connection
ENGLISH - 175

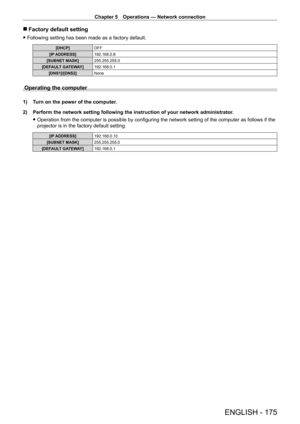

 rFactory default setting
 fFollowing setting has been made as a factory default.
[DHCP] OFF
[IP ADDRESS] 192.168.0.8
[SUBNET MASK] 255.255.255.0
[DEFAULT GATEWAY] 192.168.0.1
[DNS1]/[DNS2] None
Operating the computer
1) Turn on the power of the computer.
2)

Perform the network setting following the instruction of your network ad\
ministrator
 .
 fOperation from the computer is possible by configuring the network setting of the computer as follows...

Chapter 5 Operations — Web control function
176 - ENGLISH

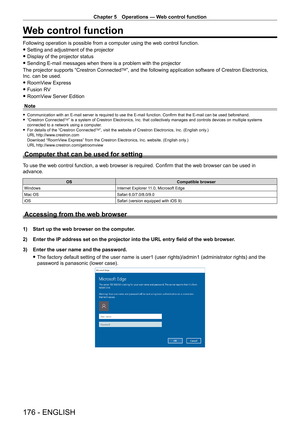

Web control function
Following operation is possible from a computer using the web control fu\
nction.
 fSetting and adjustment of the projector
 fDisplay of the projector status
 fSending E-mail messages when there is a problem with the projector
The projector supports “Crestron Connected
TM”, and the following application software of Crestron Electronics,
Inc. can be used.
 f RoomV

iew Express
 f Fusion R

V
 f RoomV

iew Server Edition
Note...

Chapter 5 Operations — Web control function
ENGLISH - 177

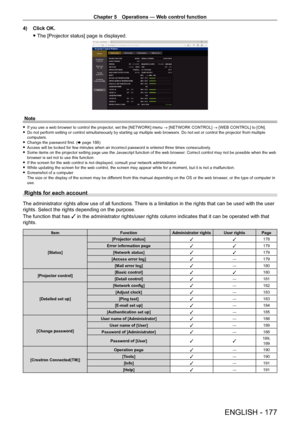

4) Click OK.
 fThe [Projector status] page is displayed.
Note
 f If you use a web browser to control the projector , set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON]. fDo not perform setting or control simultaneously by starting up multiple\
 web browsers. Do not set or control the projector from multiple
computers.
 fChange the password first. ( x

  page   188)
 fAccess will be locked for few minutes when an incorrect password...

Chapter 5 Operations — Web control function
178 - ENGLISH

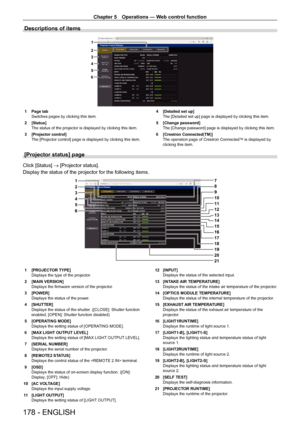

Descriptions of items
1
2
3
4
5
6
1 Page tab
Switches pages by clicking this item.
2

[Status]
The status of the projector is displayed by clicking this item.
3


[Projector control]
The [Projector control] page is displayed by clicking this item. 4

 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
5

[Change password]
The [Change password] page is displayed by clicking this item.
6


[Crestron Connected(TM)]...

Chapter 5 Operations — Web control function
ENGLISH - 179

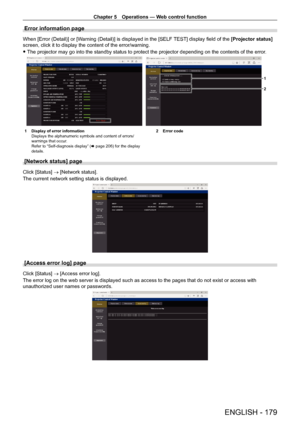

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status]
screen, click it to display the content of the error/warning.
 fThe projector may go into the standby status to protect the projector de\
pending on the contents of the error

.
1
2
1 Display of error information
Displays the alphanumeric symbols and content of errors/
warnings that occur.
Refer to...

Chapter 5 Operations — Web control function
180 - ENGLISH
[Mail error log] page
Click [Status] → [Mail error log].
E-mail error log is displayed if periodic E-mail sending has failed.
Note
 f[Access error log] and [Mail error log] display the recent few thousand accesses/requests.  All information may not be displayed when many
accesses/requests are made at once.
 f Logs in [Access error log] and [Mail error log] are deleted from the oldest when exceeding a certain amount. fCheck [Access error log] and...
