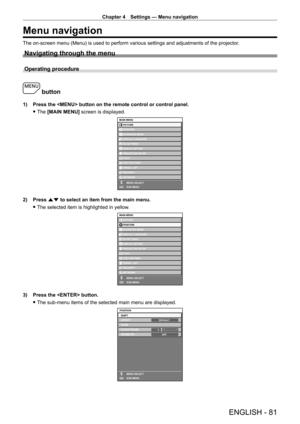

Page 81

Chapter 4 Settings — Menu navigation
ENGLISH - 81
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe

[MAIN MENU] screen is displayed.
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION 3D SETTINGS
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
P IN P
ENTER
2) Press  as...

Page 82

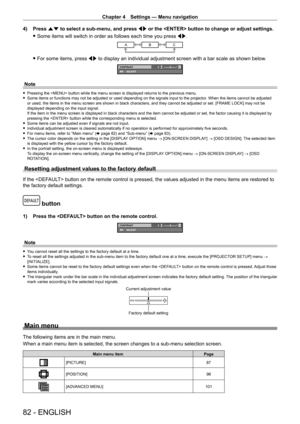

$Page 82 Chapter 4 Settings — Menu navigation 82 - ENGLISH 4) Press as to select a sub-menu, and press qw or the button to change or adjust settings. fSome items will switch in order as follows each time you press qw . ABC fFor some items, press qw to display an individual adjustment screen with a bar scale as shown be\ low. 0CONTRAST ADJUST Note fPressing the button while the menu screen is displayed returns to the previous menu. fSome items or functions may not be adjusted or used depending on the sig\...$

Chapter 4 Settings — Menu navigation
82 - ENGLISH
4) Press as to select a sub-menu, and press qw or the  button to change or adjust settings.
 fSome items will switch in order as follows each time you press  qw

.
ABC
 fFor some items, press  qw to display an individual adjustment screen with a bar scale as shown be\
low.
0CONTRAST
ADJUST
Note
 fPressing the  button while the menu screen is displayed returns to the previous menu. fSome items or functions may not be adjusted or used depending on the sig\...

Page 83

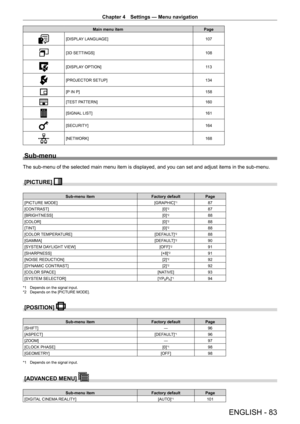

$Page 83 Chapter 4 Settings — Menu navigation ENGLISH - 83 Main menu itemPage [DISPLAY LANGUAGE] 107 [3D SETTINGS]108 [DISPLAY OPTION] 11 3 [PROJECTOR SETUP]134 [P IN P]158 [TEST PATTERN]160 [SIGNAL LIST]161 [SECURITY]164 [NETWORK]168 Sub-menu The sub-menu of the selected main menu item is displayed, and you can se\ t and adjust items in the sub-menu. [PICTURE] Sub-menu itemFactory defaultPage [PICTURE MODE] [GRAPHIC] *187 [CONTRAST] [0] *287 [BRIGHTNESS] [0] *288 [COLOR] [0] *288 [TINT] [0] *288 [COLOR...$

Chapter 4 Settings — Menu navigation
ENGLISH - 83
Main menu itemPage
[DISPLAY LANGUAGE] 107
[3D SETTINGS]108
[DISPLAY OPTION] 11 3
[PROJECTOR SETUP]134
[P IN P]158
[TEST PATTERN]160
[SIGNAL LIST]161
[SECURITY]164
[NETWORK]168
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*187
[CONTRAST] [0]
*287
[BRIGHTNESS] [0]
*288
[COLOR] [0]
*288
[TINT] [0]
*288
[COLOR...

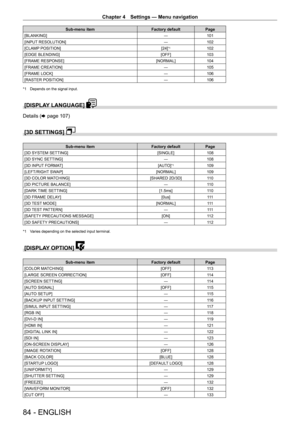

Page 84

Chapter 4 Settings — Menu navigation
84 - ENGLISH
Sub-menu itemFactory defaultPage
[BLANKING] ―101
[INPUT RESOLUTION] ―102
[CLAMP POSITION] [24]
*1102
[EDGE BLENDING] [OFF]103
[FRAME RESPONSE] [NORMAL]104
[FRAME CREATION] ―105
[FRAME LOCK] ―106
[RASTER POSITION] ―106
*1 Depends on the signal input.
[DISPLAY LANGUAGE]
Details (x page 107)
[3D SETTINGS]
Sub-menu item Factory defaultPage
[3D SYSTEM SETTING] [SINGLE]108
[3D SYNC SETTING] ―108
[3D INPUT FORMAT] [AUTO]
*1109
[LEFT/RIGHT SWAP] [NORMAL]109
[3D...

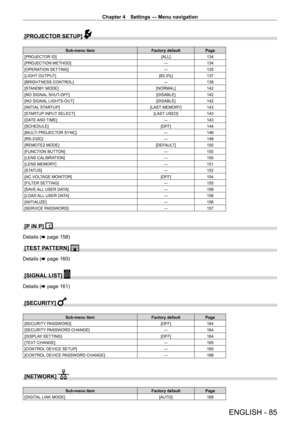

Page 85

Chapter 4 Settings — Menu navigation
ENGLISH - 85
[PROJECTOR SETUP]
Sub-menu itemFactory defaultPage
[PROJECTOR ID] [ALL]134
[PROJECTION METHOD] ―134
[OPERATION SETTING] ―135
[LIGHT OUTPUT] [83.3%]137
[BRIGHTNESS CONTROL] ―138
[STANDBY MODE] [NORMAL]142
[NO SIGNAL SHUT-OFF] [DISABLE]142
[NO SIGNAL LIGHTS-OUT] [DISABLE]142
[INITIAL STARTUP] [LAST MEMORY]143
[STARTUP INPUT SELECT] [LAST USED]143
[DATE AND TIME] ―143
[SCHEDULE] [OFF]144
[MULTI PROJECTOR SYNC] ―146
[RS-232C] ―148
[REMOTE2 MODE]...

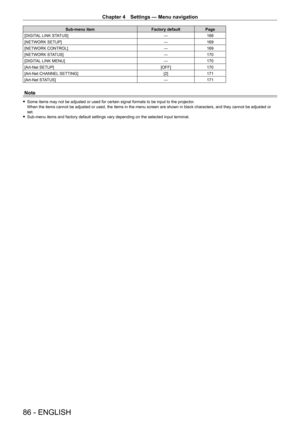

Page 86

$Page 86 Chapter 4 Settings — Menu navigation 86 - ENGLISH Sub-menu itemFactory defaultPage [DIGITAL LINK STATUS] ―168 [NETWORK SETUP] ―169 [NETWORK CONTROL] ―169 [NETWORK STATUS] ―170 [DIGITAL LINK MENU] ―170 [Art-Net SETUP] [OFF]170 [Art-Net CHANNEL SETTING] [2]171 [Art-Net STATUS] ―171 Note fSome items may not be adjusted or used for certain signal formats to be \ input to the projector . When the items cannot be adjusted or used, the items in the menu screen \ are shown in black characters, and they cannot...$

Chapter 4 Settings — Menu navigation
86 - ENGLISH
Sub-menu itemFactory defaultPage
[DIGITAL LINK STATUS] ―168
[NETWORK SETUP] ―169
[NETWORK CONTROL] ―169
[NETWORK STATUS] ―170
[DIGITAL LINK MENU] ―170
[Art-Net SETUP] [OFF]170
[Art-Net CHANNEL SETTING] [2]171
[Art-Net STATUS] ―171
Note
 fSome items may not be adjusted or used for certain signal formats to be \
input to the projector .
When the items cannot be adjusted or used, the items in the menu screen \
are shown in black characters, and they cannot...

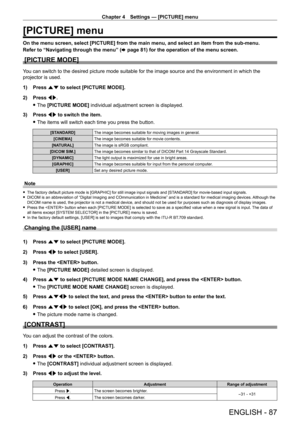

Page 87

$Page 87 Chapter 4 Settings — [PICTURE] menu ENGLISH - 87 [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an i\ tem from the sub-menu. Refer to “Navigating through the menu” (x page 81) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source \ and the environment in which the projector is used. 1) Press as to select [PICTURE MODE]. 2) Press qw. fThe [PICTURE MODE] individual adjustment screen...$

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 87
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an i\
tem from the sub-menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the
projector is used.
1)

Press
 as to select [PICTURE MODE].
2)

Press
 qw.
 fThe

[PICTURE MODE] individual adjustment screen...

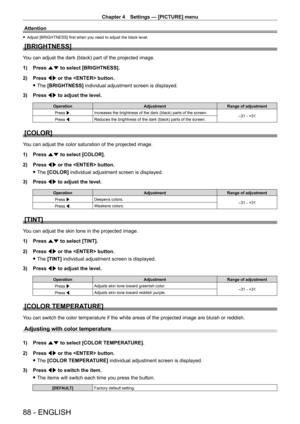

Page 88

Chapter 4 Settings — [PICTURE] menu
88 - ENGLISH
Attention
 fAdjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1)

Press
 as to select [BRIGHTNESS].
2)

Press
 qw or the  button.
 fThe

[BRIGHTNESS] individual adjustment screen is displayed.
3)

Press
 qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Increases the brightness of the dark (black) parts of the screen.
-31 - +31
Press q....

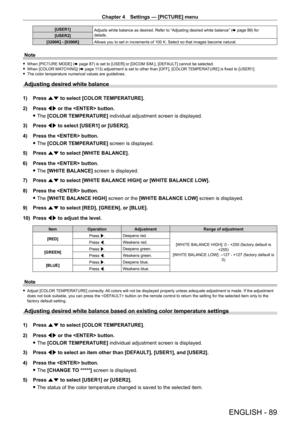

Page 89

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 89
[USER1]Adjusts white balance as desired. Refer to “Adjusting desired white balance” ( x
  page   89) for
details.
[USER2]
[3200K] - [9300K] Allows you to set in increments of 100
  K. Select so that images become natural.
Note
 fWhen [PICTURE MODE] ( x   page   87) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected. fWhen [COLOR MA
TCHING] (x   page   113) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
 fThe...

Page 90

Chapter 4 Settings — [PICTURE] menu
90 - ENGLISH
6) Press the  button.
 fThe confirmation screen is displayed.
7)


Press
 qw to select [OK], and press the  button.
 fThe [USER1] or [USER2] data is overwritten.
 fIf you press

qw to select [CANCEL] and then press the  button, the data will not be overwritten.
 fThe

[WHITE BALANCE HIGH] screen is displayed.
8)

Press
 as to select [RED], [GREEN], or [BLUE].
9)

Press
 qw to adjust the level.
Note
 f Adjust [COLOR  TEMPERATURE] correctly. All...
