Panasonic Projector PT-RS30K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RS30K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

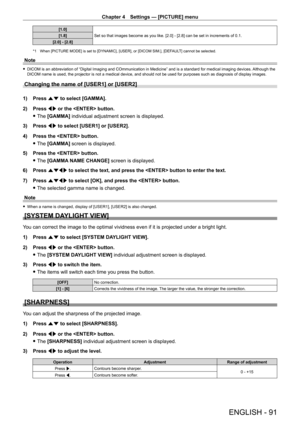

Page 91
![Page 91
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 91
[1.0]Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1.
[1.8]
[2.0] - [2.8]
*1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEF AUL T] cannot be selected.
Note
fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the
DICOM name is used, the projector is not a medical device, and should not be used for purposes such as...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-90.png "Page 91
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 91
[1.0]Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1.
[1.8]
[2.0] - [2.8]
*1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEF AUL T] cannot be selected.
Note
fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the
DICOM name is used, the projector is not a medical device, and should not be used for purposes such as...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 91 [1.0]Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1. [1.8] [2.0] - [2.8] *1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEF AUL T] cannot be selected. Note fDICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the DICOM name is used, the projector is not a medical device, and should not be used for purposes such as...

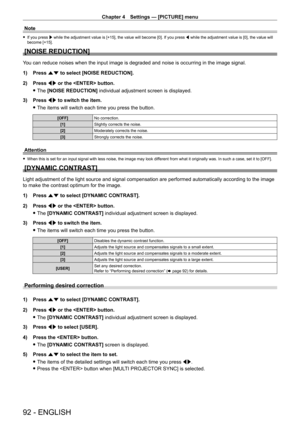

Page 92
![Page 92
Chapter 4 Settings — [PICTURE] menu
92 - ENGLISH
Note
fIf you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will
become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occur\
ring in the image signal.
1)
Press
as to select [NOISE REDUCTION].
2)
Press
qw or the button.
fThe
[NOISE REDUCTION] individual adjustment screen is displayed.
3)
Press
qw to switch...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-91.png "Page 92
Chapter 4 Settings — [PICTURE] menu
92 - ENGLISH
Note
fIf you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will
become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occur\
ring in the image signal.
1)
Press
as to select [NOISE REDUCTION].
2)
Press
qw or the button.
fThe
[NOISE REDUCTION] individual adjustment screen is displayed.
3)
Press
qw to switch...")
Chapter 4 Settings — [PICTURE] menu 92 - ENGLISH Note fIf you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+15]. [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occur\ ring in the image signal. 1) Press as to select [NOISE REDUCTION]. 2) Press qw or the button. fThe [NOISE REDUCTION] individual adjustment screen is displayed. 3) Press qw to switch...

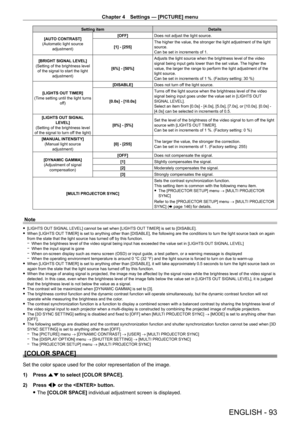

Page 93
![Page 93
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 93
Setting itemDetails
[AUTO CONTRAST]
(Automatic light source adjustment) [OFF]
Does not adjust the light source.
[1] - [255] The higher the value, the stronger the light adjustment of the light
source.
Can be set in increments of 1.
[BRIGHT SIGNAL LEVEL]
(Setting of the brightness level of the signal to start the light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video
signal being input gets lower than the set...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-92.png "Page 93
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 93
Setting itemDetails
[AUTO CONTRAST]
(Automatic light source adjustment) [OFF]
Does not adjust the light source.
[1] - [255] The higher the value, the stronger the light adjustment of the light
source.
Can be set in increments of 1.
[BRIGHT SIGNAL LEVEL]
(Setting of the brightness level of the signal to start the light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video
signal being input gets lower than the set...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 93 Setting itemDetails [AUTO CONTRAST] (Automatic light source adjustment) [OFF] Does not adjust the light source. [1] - [255] The higher the value, the stronger the light adjustment of the light source. Can be set in increments of 1. [BRIGHT SIGNAL LEVEL] (Setting of the brightness level of the signal to start the light adjustment) [6%] - [50%]Adjusts the light source when the brightness level of the video signal being input gets lower than the set...

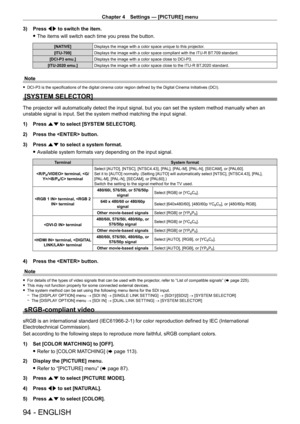

Page 94
![Page 94
Chapter 4 Settings — [PICTURE] menu
94 - ENGLISH
3) Press qw to switch the item.
fThe items will switch each time you press the button.
[NATIVE] Displays the image with a color space unique to this projector.
[ITU-709] Displays the image with a color space compliant with the ITU
- R BT.709 standard.
[DCI-P3 emu.] Displays the image with a color space close to DCI
- P3.
[ITU-2020 emu.] Displays the image with a color space close to the ITU
- R BT.2020 standard.
Note
fDCI - P3 is the specifications of...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-93.png "Page 94
Chapter 4 Settings — [PICTURE] menu
94 - ENGLISH
3) Press qw to switch the item.
fThe items will switch each time you press the button.
[NATIVE] Displays the image with a color space unique to this projector.
[ITU-709] Displays the image with a color space compliant with the ITU
- R BT.709 standard.
[DCI-P3 emu.] Displays the image with a color space close to DCI
- P3.
[ITU-2020 emu.] Displays the image with a color space close to the ITU
- R BT.2020 standard.
Note
fDCI - P3 is the specifications of...")
Chapter 4 Settings — [PICTURE] menu 94 - ENGLISH 3) Press qw to switch the item. fThe items will switch each time you press the button. [NATIVE] Displays the image with a color space unique to this projector. [ITU-709] Displays the image with a color space compliant with the ITU - R BT.709 standard. [DCI-P3 emu.] Displays the image with a color space close to DCI - P3. [ITU-2020 emu.] Displays the image with a color space close to the ITU - R BT.2020 standard. Note fDCI - P3 is the specifications of...

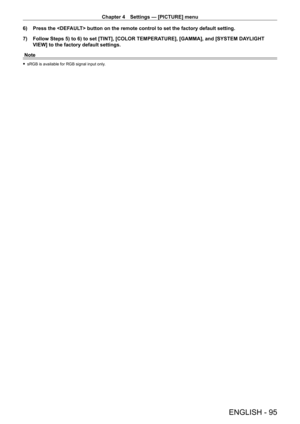

Page 95
![Page 95
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 95
6) Press the button on the remote control to set the factory default setting.
7)
Follow Steps 5) to 6) to set [TINT], [COLOR TEMPERA
TURE], [GAMMA], and [SYSTEM DAYLIGHT
VIEW] to the factory default settings.
Note
f sRGB is available for RGB signal input only .](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-94.png "Page 95
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 95
6) Press the button on the remote control to set the factory default setting.
7)
Follow Steps 5) to 6) to set [TINT], [COLOR TEMPERA
TURE], [GAMMA], and [SYSTEM DAYLIGHT
VIEW] to the factory default settings.
Note
f sRGB is available for RGB signal input only .")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 95 6) Press the button on the remote control to set the factory default setting. 7) Follow Steps 5) to 6) to set [TINT], [COLOR TEMPERA TURE], [GAMMA], and [SYSTEM DAYLIGHT VIEW] to the factory default settings. Note f sRGB is available for RGB signal input only .

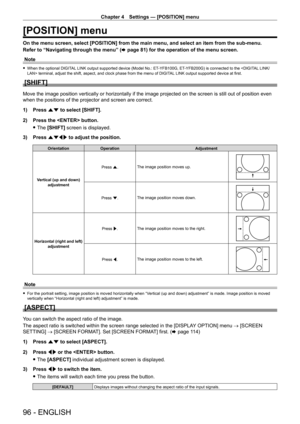

Page 96
![Page 96
Chapter 4 Settings — [POSITION] menu
96 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-menu.
Refer to “Navigating through the menu” (x
page 81) for the operation of the menu screen.
Note
f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-95.png "Page 96
Chapter 4 Settings — [POSITION] menu
96 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an \
item from the sub-menu.
Refer to “Navigating through the menu” (x
page 81) for the operation of the menu screen.
Note
f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...")
Chapter 4 Settings — [POSITION] menu 96 - ENGLISH [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an \ item from the sub-menu. Refer to “Navigating through the menu” (x page 81) for the operation of the menu screen. Note f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first. [SHIFT] Move...

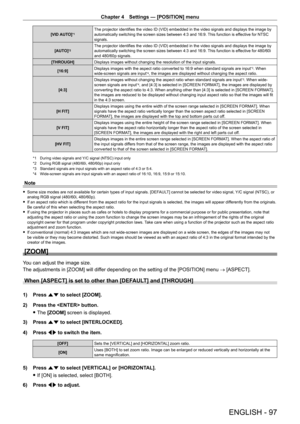

Page 97
![Page 97
Chapter 4 Settings — [POSITION] menu
ENGLISH - 97
[VID AUTO]*1The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC
signals.
[AUTO]
*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i
and 480/60p signals....](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-96.png "Page 97
Chapter 4 Settings — [POSITION] menu
ENGLISH - 97
[VID AUTO]*1The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC
signals.
[AUTO]
*2The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i
and 480/60p signals....")
Chapter 4 Settings — [POSITION] menu ENGLISH - 97 [VID AUTO]*1The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC signals. [AUTO] *2The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i and 480/60p signals....

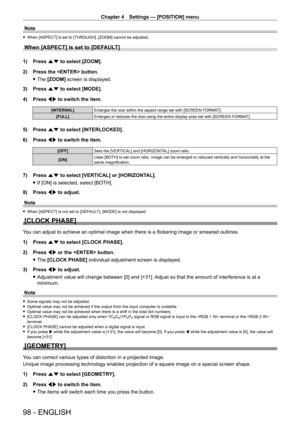

Page 98
![Page 98
Chapter 4 Settings — [POSITION] menu
98 - ENGLISH
Note
fWhen [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the button.
fThe
[ZOOM] screen is displayed.
3)
Press
as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-97.png "Page 98
Chapter 4 Settings — [POSITION] menu
98 - ENGLISH
Note
fWhen [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the button.
fThe
[ZOOM] screen is displayed.
3)
Press
as to select [MODE].
4)
Press
qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select...")
Chapter 4 Settings — [POSITION] menu 98 - ENGLISH Note fWhen [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted. When [ASPECT] is set to [DEFAULT] 1) Press as to select [ZOOM]. 2) Press the button. fThe [ZOOM] screen is displayed. 3) Press as to select [MODE]. 4) Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T]. 5) Press as to select...

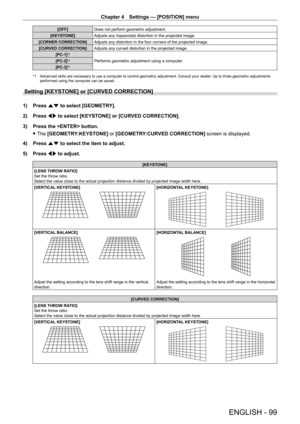

Page 99
![Page 99
Chapter 4 Settings — [POSITION] menu
ENGLISH - 99
[OFF]Does not perform geometric adjustment.
[KEYSTONE] Adjusts any trapezoidal distortion in the projected image.
[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.
[CURVED CORRECTION] Adjusts any curved distortion in the projected image.
[PC-1]
*1
Performs geometric adjustment using a computer.
[PC-2]*1
[PC-3]*1
*1 Advanced skills are necessary to use a computer to control geometric adj\
ustment. Consult your dealer ....](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-98.png "Page 99
Chapter 4 Settings — [POSITION] menu
ENGLISH - 99
[OFF]Does not perform geometric adjustment.
[KEYSTONE] Adjusts any trapezoidal distortion in the projected image.
[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.
[CURVED CORRECTION] Adjusts any curved distortion in the projected image.
[PC-1]
*1
Performs geometric adjustment using a computer.
[PC-2]*1
[PC-3]*1
*1 Advanced skills are necessary to use a computer to control geometric adj\
ustment. Consult your dealer ....")
Chapter 4 Settings — [POSITION] menu ENGLISH - 99 [OFF]Does not perform geometric adjustment. [KEYSTONE] Adjusts any trapezoidal distortion in the projected image. [CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image. [CURVED CORRECTION] Adjusts any curved distortion in the projected image. [PC-1] *1 Performs geometric adjustment using a computer. [PC-2]*1 [PC-3]*1 *1 Advanced skills are necessary to use a computer to control geometric adj\ ustment. Consult your dealer ....

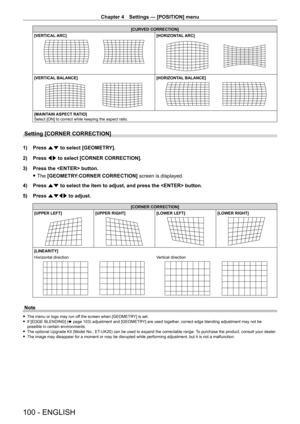

Page 100
![Page 100
Chapter 4 Settings — [POSITION] menu
100 - ENGLISH
[CURVED CORRECTION]
[VERTICAL ARC]
[HORIZONTAL ARC]
[VERTICAL BALANCE][HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press as to select [GEOMETRY].
2)
Press
qw to select [CORNER CORRECTION].
3)
Press the button.
fThe
[GEOMETRY:CORNER CORRECTION] screen is displayed.
4)
Press
as to select the item to adjust, and press the button.
5)
Press
asqw to...](http://img.usermanuals.tech/thumb/58/100232/w300_projector_manual_9479_d-99.png "Page 100
Chapter 4 Settings — [POSITION] menu
100 - ENGLISH
[CURVED CORRECTION]
[VERTICAL ARC]
[HORIZONTAL ARC]
[VERTICAL BALANCE][HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press as to select [GEOMETRY].
2)
Press
qw to select [CORNER CORRECTION].
3)
Press the button.
fThe
[GEOMETRY:CORNER CORRECTION] screen is displayed.
4)
Press
as to select the item to adjust, and press the button.
5)
Press
asqw to...")
Chapter 4 Settings — [POSITION] menu 100 - ENGLISH [CURVED CORRECTION] [VERTICAL ARC] [HORIZONTAL ARC] [VERTICAL BALANCE][HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] 1) Press as to select [GEOMETRY]. 2) Press qw to select [CORNER CORRECTION]. 3) Press the button. fThe [GEOMETRY:CORNER CORRECTION] screen is displayed. 4) Press as to select the item to adjust, and press the button. 5) Press asqw to...
