Panasonic Projector PT-RS30K User Manual

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 101

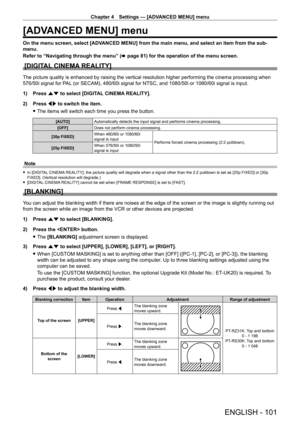

[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when
576/50i signal for PAL (or SECAM), 480/60i signal for NTSC, and 1080/50i or 1080/60i signal is...

Chapter 4 Settings — [ADVANCED MENU] menu
102 - ENGLISH

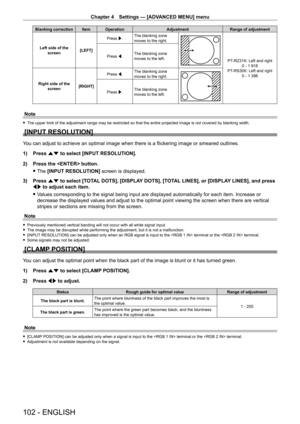

Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the  screen [LEFT]Press w.
The blanking zone
moves to the right.
PT-
RZ31K: Left and right
0 - 1   918
PT
-

RS30K: Left and right  0 - 1
  398
Press q.
The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press q.
The blanking zone
moves to the right.
Press w.The blanking zone
moves to the left.
Note
 f
The upper limit of the adjustment range may be...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 103

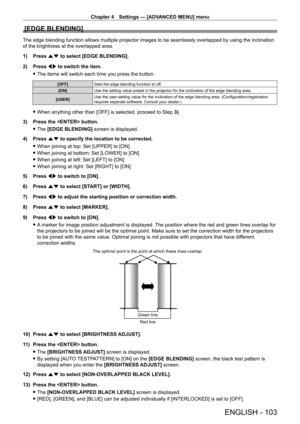

[EDGE BLENDING]
The edge blending function allows multiple projector images to be seamle\
ssly overlapped by using the inclination
of the brightness at the overlapped area.
1)
Press
 as to select [EDGE BLENDING].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Sets the edge blending function to off.
[ON] Use the setting value preset in the projector for the inclination of the\
 edge blending...

Chapter 4 Settings — [ADVANCED MENU] menu
104 - ENGLISH

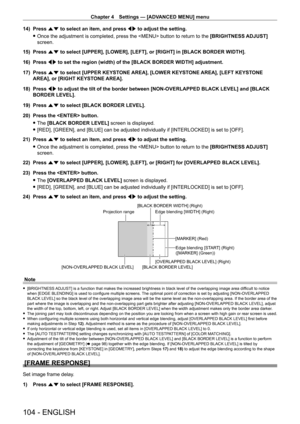

14) Press as to select an item, and press qw to adjust the setting.
 fOnce the adjustment is completed, press the  button to return to the  [BRIGHTNESS ADJUST]


screen.
15)

Press
 as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].\
16)

Press
 qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.
17)

Press
 as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE
AREA], or [RIGHT...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 105

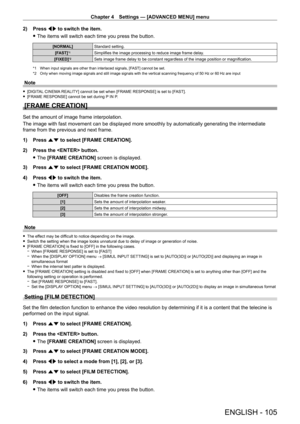

2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Standard setting.
[FAST]
*1Simplifies the image processing to reduce image frame delay.
[FIXED]
*2Sets image frame delay to be constant regardless of the image position or magnification.
*1 When input signals are other than interlaced signals, [F AST] cannot be set.
*2
Only when moving image signals and still image signals with the vertical scanning...

Chapter 4 Settings — [ADVANCED MENU] menu
106 - ENGLISH

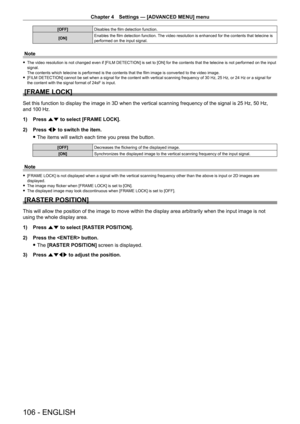

[OFF]Disables the film detection function.
[ON] Enables the film detection function. The video resolution is enhanced for the contents that telecine is
performed on the input signal.
Note
 f
The video resolution is not changed even if [FILM DETECTION] is set to [ON] for the contents that the telecine is not performed on the input
signal.
The contents which telecine is performed is the contents that the film image is converted to the video image....

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
ENGLISH - 107

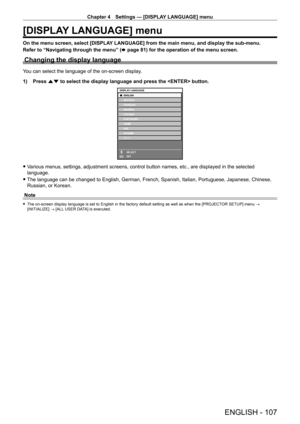

[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)

Press
 as to select the display language and press the  button.
ENTER
DISPLAY LANGUAGE
SELECT
SET
 fVarious menus, settings, adjustment screens,...

Chapter 4 Settings — [3D SETTINGS] menu
108 - ENGLISH

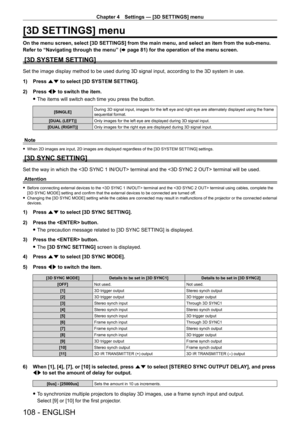

[3D SETTINGS] menu
On the menu screen, select [3D SETTINGS] from the main menu, and select \
an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   81) for the operation of the menu screen.
[3D SYSTEM SETTING]
Set the image display method to be used during 3D signal input, accordin\
g to the 3D system in use.
1)

Press
 as to select [3D SYSTEM SETTING].
2)

Press
 qw to switch the item.
 fThe items will switch each time you...

Chapter 4 Settings — [3D SETTINGS] menu
ENGLISH - 109

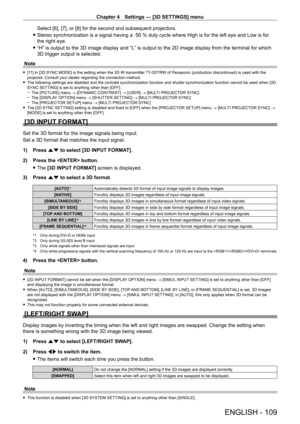

Select [6], [7], or [8] for the second and subsequent projectors.
 fStereo synchronization is a signal having a

  50   % duty cycle where High is for the left eye and Low is for
the right eye.
 f “H” is output to the 3D image display and “L” is output to the 2D image display from the terminal for which
3D trigger output is selected.
Note
 f [11] in [3D SYNC MODE] is the setting when the 3D IR transmitter TY-3DTRW of Panasonic (production...

Chapter 4 Settings — [3D SETTINGS] menu
110 - ENGLISH

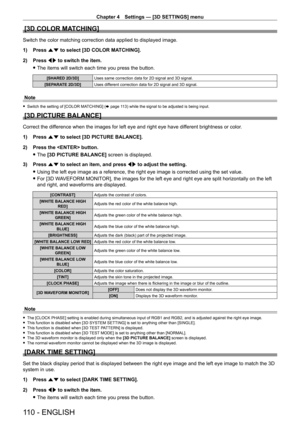

[3D COLOR MATCHING]
Switch the color matching correction data applied to displayed image.
1)
Press
 as to select [3D COLOR MATCHING].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[SHARED 2D/3D] Uses same correction data for 2D signal and 3D signal.
[SEPARATE 2D/3D] Uses different correction data for 2D signal and 3D signal.
Note
 fSwitch the setting of [COLOR MA TCHING] (x   page   113) while the signal...
