Page 111
![Page 111
Chapter 5 Maintenance — Maintenance
ENGLISH - 111
Maintenance
Before maintaining the projector
fMake sure to turn off the power before maintaining the projector
. (
x pages 32, 34)
f When switching off the projector
, make sure to follow the procedures in “Switching off the projector” ( x
page 34).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry off the projector with a dry...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-110.png "Page 111
Chapter 5 Maintenance — Maintenance
ENGLISH - 111
Maintenance
Before maintaining the projector
fMake sure to turn off the power before maintaining the projector
. (
x pages 32, 34)
f When switching off the projector
, make sure to follow the procedures in “Switching off the projector” ( x
page 34).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry off the projector with a dry...")
Chapter 5 Maintenance — Maintenance ENGLISH - 111 Maintenance Before maintaining the projector fMake sure to turn off the power before maintaining the projector . ( x pages 32, 34) f When switching off the projector , make sure to follow the procedures in “Switching off the projector” ( x page 34). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth. fIf the dirt is persistent, soak the cloth with water and wring it thorou\ ghly before wiping. Dry off the projector with a dry...
Page 112
![Page 112
Chapter 5 Maintenance — Troubleshooting
112 - ENGLISH
Troubleshooting
Review the following points. For details, refer to the corresponding pag\
es.
Problems Points to be checked Page
Power does not turn on.
f Is the power plug firmly inserted into the outlet?
―
fIs the switch turned ?
34
fIs the wall outlet supplying electricity?
―
fHave the circuit breakers tripped?
―
fIs the temperature indicator or the light source indicator lit or
flashing? 109
No image appears.
f Are connections to...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-111.png "Page 112
Chapter 5 Maintenance — Troubleshooting
112 - ENGLISH
Troubleshooting
Review the following points. For details, refer to the corresponding pag\
es.
Problems Points to be checked Page
Power does not turn on.
f Is the power plug firmly inserted into the outlet?
―
fIs the switch turned ?
34
fIs the wall outlet supplying electricity?
―
fHave the circuit breakers tripped?
―
fIs the temperature indicator or the light source indicator lit or
flashing? 109
No image appears.
f Are connections to...")
Chapter 5 Maintenance — Troubleshooting 112 - ENGLISH Troubleshooting Review the following points. For details, refer to the corresponding pag\ es. Problems Points to be checked Page Power does not turn on. f Is the power plug firmly inserted into the outlet? ― fIs the switch turned ? 34 fIs the wall outlet supplying electricity? ― fHave the circuit breakers tripped? ― fIs the temperature indicator or the light source indicator lit or flashing? 109 No image appears. f Are connections to...
Page 113
![Page 113
Chapter 5 Maintenance — Troubleshooting
ENGLISH - 113
Attention
fIf problems persist even after checking the preceding points, consult yo\
ur dealer.](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-112.png "Page 113
Chapter 5 Maintenance — Troubleshooting
ENGLISH - 113
Attention
fIf problems persist even after checking the preceding points, consult yo\
ur dealer.")
Chapter 5 Maintenance — Troubleshooting ENGLISH - 113 Attention fIf problems persist even after checking the preceding points, consult yo\ ur dealer.
Page 114
114 - ENGLISH Chapter 6 Appendix This chapter describes specifications and after-sales service for the projector.
Page 115
![Page 115
Chapter 6 Appendix — Technical information
ENGLISH - 115
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and \
the PJLink protocol can be used to perform projector setting and
projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used \
to control the projector.
fThe “x” in the table are arbitrary characters.
Command Control details Parameter/response
character...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-114.png "Page 115
Chapter 6 Appendix — Technical information
ENGLISH - 115
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and \
the PJLink protocol can be used to perform projector setting and
projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used \
to control the projector.
fThe “x” in the table are arbitrary characters.
Command Control details Parameter/response
character...")
Chapter 6 Appendix — Technical information ENGLISH - 115 Technical information PJLink protocol The network function of this projector supports the PJLink class 1, and \ the PJLink protocol can be used to perform projector setting and projector status query operations from a computer. Control commands The following table lists the PJLink protocol commands that can be used \ to control the projector. fThe “x” in the table are arbitrary characters. Command Control details Parameter/response character...
Page 116
![Page 116
Chapter 6 Appendix — Technical information
116 - ENGLISH
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector a\
nd request for a
connection to the projector.
fYou can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu
→ [NETWORK]
→ [NETWORK STATUS]
Port number Obtain from the main menu
→...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-115.png "Page 116
Chapter 6 Appendix — Technical information
116 - ENGLISH
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector a\
nd request for a
connection to the projector.
fYou can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu
→ [NETWORK]
→ [NETWORK STATUS]
Port number Obtain from the main menu
→...")
Chapter 6 Appendix — Technical information 116 - ENGLISH Control commands via LAN When web control administrator rights password is set (Protect mode) Connecting 1) Obtain the IP address and port number (Initial set value = 1024) of the projector a\ nd request for a connection to the projector. fYou can obtain both the IP address and the port number from the menu screen of the projector. IP address Obtain from the main menu → [NETWORK] → [NETWORK STATUS] Port number Obtain from the main menu →...
Page 117
![Page 117
Chapter 6 Appendix — Technical information
ENGLISH - 117
rError response
Character string
DetailsTermination
symbol
Message “ERR1” Undefined control command
(CR)
0x0d
“ERR2”
Out of parameter range
“ERR3” Busy state or no-acceptable period
“ERR4” Timeout or no-acceptable period
“ERR5” Wrong data length
“ERRA” Password mismatch
Data length 4 bytes ―1 byte
When web control administrator rights password is not set (Non-protect \
mode)
Connecting
1) Obtain the IP address and port number (Initial set value =...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-116.png "Page 117
Chapter 6 Appendix — Technical information
ENGLISH - 117
rError response
Character string
DetailsTermination
symbol
Message “ERR1” Undefined control command
(CR)
0x0d
“ERR2”
Out of parameter range
“ERR3” Busy state or no-acceptable period
“ERR4” Timeout or no-acceptable period
“ERR5” Wrong data length
“ERRA” Password mismatch
Data length 4 bytes ―1 byte
When web control administrator rights password is not set (Non-protect \
mode)
Connecting
1) Obtain the IP address and port number (Initial set value =...")
Chapter 6 Appendix — Technical information ENGLISH - 117 rError response Character string DetailsTermination symbol Message “ERR1” Undefined control command (CR) 0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes ―1 byte When web control administrator rights password is not set (Non-protect \ mode) Connecting 1) Obtain the IP address and port number (Initial set value =...
Page 118

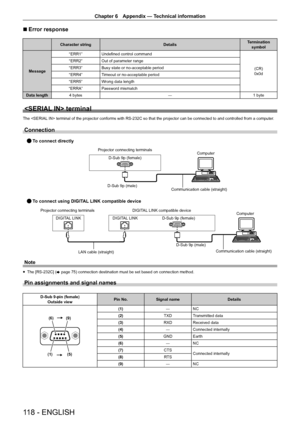

![Page 118
Chapter 6 Appendix — Technical information
118 - ENGLISH
rError response
Character string
DetailsTermination
symbol
Message “ERR1” Undefined control command
(CR)
0x0d
“ERR2”
Out of parameter range
“ERR3” Busy state or no-acceptable period
“ERR4” Timeout or no-acceptable period
“ERR5” Wrong data length
“ERRA” Password mismatch
Data length 4 bytes ―1 byte
terminal
The terminal of the projector conforms with RS-232C so that the project\
or can be connected to and controlled from a computer.
Connection...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-117.png "Page 118
Chapter 6 Appendix — Technical information
118 - ENGLISH
rError response
Character string
DetailsTermination
symbol
Message “ERR1” Undefined control command
(CR)
0x0d
“ERR2”
Out of parameter range
“ERR3” Busy state or no-acceptable period
“ERR4” Timeout or no-acceptable period
“ERR5” Wrong data length
“ERRA” Password mismatch
Data length 4 bytes ―1 byte
terminal
The terminal of the projector conforms with RS-232C so that the project\
or can be connected to and controlled from a computer.
Connection...")
Chapter 6 Appendix — Technical information 118 - ENGLISH rError response Character string DetailsTermination symbol Message “ERR1” Undefined control command (CR) 0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes ―1 byte terminal The terminal of the projector conforms with RS-232C so that the project\ or can be connected to and controlled from a computer. Connection...
Page 119

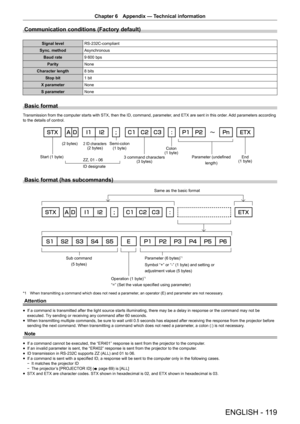

![Page 119
Chapter 6 Appendix — Technical information
ENGLISH - 119
Communication conditions (Factory default)
Signal levelRS-232C-compliant
Sync. method Asynchronous
Baud rate 9
600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
Basic format
Transmission from the computer starts with STX, then the ID, command, par\
ameter, and ETX are sent in this order. Add parameters according
to the details of control.
E\WHV ,FKDUDFWHUV E\WHV 6HPLFRORQ
E\WH &RORQ
E\WH...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-118.png "Page 119
Chapter 6 Appendix — Technical information
ENGLISH - 119
Communication conditions (Factory default)
Signal levelRS-232C-compliant
Sync. method Asynchronous
Baud rate 9
600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
Basic format
Transmission from the computer starts with STX, then the ID, command, par\
ameter, and ETX are sent in this order. Add parameters according
to the details of control.
E\WHV ,FKDUDFWHUV E\WHV 6HPLFRORQ
E\WH &RORQ
E\WH...")
Chapter 6 Appendix — Technical information ENGLISH - 119 Communication conditions (Factory default) Signal levelRS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length 8 bits Stop bit 1 bit X parameter None S parameter None Basic format Transmission from the computer starts with STX, then the ID, command, par\ ameter, and ETX are sent in this order. Add parameters according to the details of control. E\WHV ,FKDUDFWHUV E\WHV 6HPLFRORQ E\WH &RORQ E\WH...
Page 120

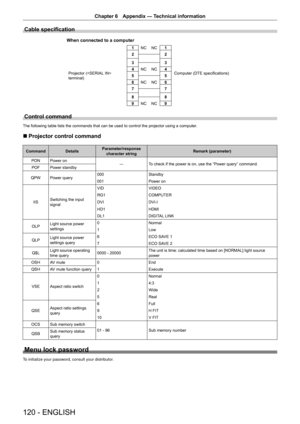

![Page 120
Chapter 6 Appendix — Technical information
120 - ENGLISH
Cable specification
1& 1&
1& 1&
1& 1&
1& 1&
:KHQFRQQHFWHGWRDFRPSXWHU
3URMHFWRU 6(5,$/,1!
WHUPLQDO &RPSXWHU 7(VSHFLILFDWLRQV
Control command
The following table lists the commands that can be used to control the p\
rojector using a computer.
r
Projector control command
Command Details Parameter/response
character string Remark (parameter)
PON Power on ―To check if the power is on, use the...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-119.png "Page 120
Chapter 6 Appendix — Technical information
120 - ENGLISH
Cable specification
1& 1&
1& 1&
1& 1&
1& 1&
:KHQFRQQHFWHGWRDFRPSXWHU
3URMHFWRU 6(5,$/,1!
WHUPLQDO &RPSXWHU 7(VSHFLILFDWLRQV
Control command
The following table lists the commands that can be used to control the p\
rojector using a computer.
r
Projector control command
Command Details Parameter/response
character string Remark (parameter)
PON Power on ―To check if the power is on, use the...")
Chapter 6 Appendix — Technical information 120 - ENGLISH Cable specification 1& 1& 1& 1& 1& 1& 1& 1& :KHQFRQQHFWHGWRDFRPSXWHU 3URMHFWRU 6(5,$/,1! WHUPLQDO &RPSXWHU 7(VSHFLILFDWLRQV Control command The following table lists the commands that can be used to control the p\ rojector using a computer. r Projector control command Command Details Parameter/response character string Remark (parameter) PON Power on ―To check if the power is on, use the...
