Chapter 4 Settings — [NETWORK] menu
ENGLISH - 101
Contents of mail sent
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been establis\
hed.
=== Panasonic projector report(CONFIGURE) ===
Projector Type : RW330
Serial No : SW1234567
----- E-mail setup data -----
TEMPERATURE WARNING SETUP
MINIMUM TIME at [ 60] minutes interval
INTAKE AIR TEMPERATURE Over [ 46 degC / 114 degF ]
ERROR [ ON ]
INTAKE AIR TEMPERATURE [ OFF ]
PERIODIC...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-100.png "Page 101
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 101
Contents of mail sent
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been establis\
hed.
=== Panasonic projector report(CONFIGURE) ===
Projector Type : RW330
Serial No : SW1234567
----- E-mail setup data -----
TEMPERATURE WARNING SETUP
MINIMUM TIME at [ 60] minutes interval
INTAKE AIR TEMPERATURE Over [ 46 degC / 114 degF ]
ERROR [ ON ]
INTAKE AIR TEMPERATURE [ OFF ]
PERIODIC...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 101 Contents of mail sent Example of E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been establis\ hed. === Panasonic projector report(CONFIGURE) === Projector Type : RW330 Serial No : SW1234567 ----- E-mail setup data ----- TEMPERATURE WARNING SETUP MINIMUM TIME at [ 60] minutes interval INTAKE AIR TEMPERATURE Over [ 46 degC / 114 degF ] ERROR [ ON ] INTAKE AIR TEMPERATURE [ OFF ] PERIODIC...
Page 102

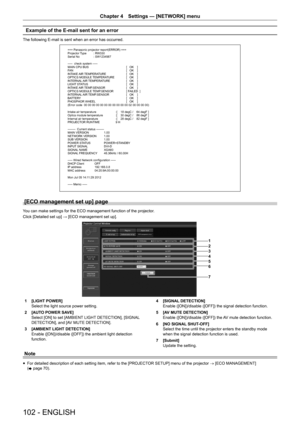

![Page 102
Chapter 4 Settings — [NETWORK] menu
102 - ENGLISH
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report(ERROR) ===
Projector Type : RW330
Serial No : SW1234567
----- check system -----
MAIN CPU BUS [ OK ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
INTERNAL AIR TEMPERATURE [ OK ]
LIGHT STATUS [ OK ]
INTAKE AIR TEMP.SENSOR [ OK ]
OPTICS MODULE TEMP.SENSOR [...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-101.png "Page 102
Chapter 4 Settings — [NETWORK] menu
102 - ENGLISH
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report(ERROR) ===
Projector Type : RW330
Serial No : SW1234567
----- check system -----
MAIN CPU BUS [ OK ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
INTERNAL AIR TEMPERATURE [ OK ]
LIGHT STATUS [ OK ]
INTAKE AIR TEMP.SENSOR [ OK ]
OPTICS MODULE TEMP.SENSOR [...")
Chapter 4 Settings — [NETWORK] menu 102 - ENGLISH Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RW330 Serial No : SW1234567 ----- check system ----- MAIN CPU BUS [ OK ] FAN [ OK ] INTAKE AIR TEMPERATURE [ OK ] OPTICS MODULE TEMPERATURE [ OK ] INTERNAL AIR TEMPERATURE [ OK ] LIGHT STATUS [ OK ] INTAKE AIR TEMP.SENSOR [ OK ] OPTICS MODULE TEMP.SENSOR [...
Page 103

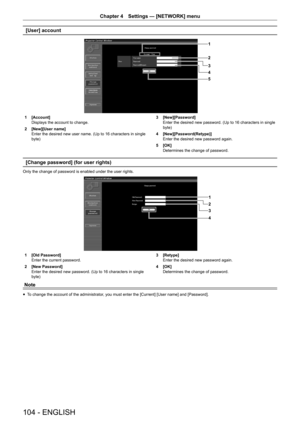

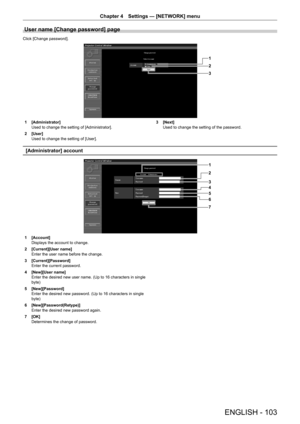

![Page 103
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 103
User name [Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of [Administrator].
2
[User]
Used to change the setting of [User]. 3
[Next]
Used to change the setting of the password.
[Administrator] account
1
2
3
4
5
6
7
1 [Account]
Displays the account to change.
2
[Current][User name]
Enter the user name before the change.
3
[Current][Password]
Enter the current password.
4
[New][User name]
Enter the...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-102.png "Page 103
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 103
User name [Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of [Administrator].
2
[User]
Used to change the setting of [User]. 3
[Next]
Used to change the setting of the password.
[Administrator] account
1
2
3
4
5
6
7
1 [Account]
Displays the account to change.
2
[Current][User name]
Enter the user name before the change.
3
[Current][Password]
Enter the current password.
4
[New][User name]
Enter the...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 103 User name [Change password] page Click [Change password]. 1 2 3 1 [Administrator] Used to change the setting of [Administrator]. 2 [User] Used to change the setting of [User]. 3 [Next] Used to change the setting of the password. [Administrator] account 1 2 3 4 5 6 7 1 [Account] Displays the account to change. 2 [Current][User name] Enter the user name before the change. 3 [Current][Password] Enter the current password. 4 [New][User name] Enter the...
Page 104

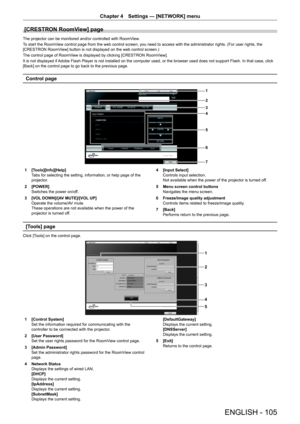

![Page 104
Chapter 4 Settings — [NETWORK] menu
104 - ENGLISH
[User] account
1
2
3
5 4
1 [Account]
Displays the account to change.
2
[New][User name]
Enter the desired new user name. (Up to 16 characters in single
byte) 3
[New][Password]
Enter the desired new password. (Up to 16 characters in single
byte)
4
[New][Password(Retype)]
Enter the desired new password again.
5
[OK]
Determines the change of password.
[Change password] (for user rights)
Only the change of password is enabled under the user rights.
1
2...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-103.png "Page 104
Chapter 4 Settings — [NETWORK] menu
104 - ENGLISH
[User] account
1
2
3
5 4
1 [Account]
Displays the account to change.
2
[New][User name]
Enter the desired new user name. (Up to 16 characters in single
byte) 3
[New][Password]
Enter the desired new password. (Up to 16 characters in single
byte)
4
[New][Password(Retype)]
Enter the desired new password again.
5
[OK]
Determines the change of password.
[Change password] (for user rights)
Only the change of password is enabled under the user rights.
1
2...")
Chapter 4 Settings — [NETWORK] menu 104 - ENGLISH [User] account 1 2 3 5 4 1 [Account] Displays the account to change. 2 [New][User name] Enter the desired new user name. (Up to 16 characters in single byte) 3 [New][Password] Enter the desired new password. (Up to 16 characters in single byte) 4 [New][Password(Retype)] Enter the desired new password again. 5 [OK] Determines the change of password. [Change password] (for user rights) Only the change of password is enabled under the user rights. 1 2...
Page 105

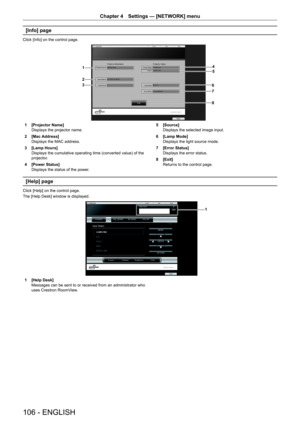

![Page 105
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 105
[CRESTRON RoomView] page
The projector can be monitored and/or controlled with RoomView.
To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the
[CRESTRON RoomView] button is not displayed on the web control screen.)
The control page of RoomView is displayed by clicking [CRESTRON RoomView].
It is not displayed if Adobe Flash Player is not installed on the computer used, or...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-104.png "Page 105
Chapter 4 Settings — [NETWORK] menu
ENGLISH - 105
[CRESTRON RoomView] page
The projector can be monitored and/or controlled with RoomView.
To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the
[CRESTRON RoomView] button is not displayed on the web control screen.)
The control page of RoomView is displayed by clicking [CRESTRON RoomView].
It is not displayed if Adobe Flash Player is not installed on the computer used, or...")
Chapter 4 Settings — [NETWORK] menu ENGLISH - 105 [CRESTRON RoomView] page The projector can be monitored and/or controlled with RoomView. To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the [CRESTRON RoomView] button is not displayed on the web control screen.) The control page of RoomView is displayed by clicking [CRESTRON RoomView]. It is not displayed if Adobe Flash Player is not installed on the computer used, or...
Page 106
![Page 106
Chapter 4 Settings — [NETWORK] menu
106 - ENGLISH
[Info] page
Click [Info] on the control page.
45
6
7
1
2
3
8
1 [Projector Name]
Displays the projector name.
2
[Mac Address]
Displays the MAC address.
3
[Lamp Hours]
Displays the cumulative operating time (converted value) of the
projector.
4
[Power Status]
Displays the status of the power. 5
[Source]
Displays the selected image input.
6
[Lamp Mode]
Displays the light source mode.
7
[Error Status]
Displays the error status.
8
[Exit]
Returns to the...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-105.png "Page 106
Chapter 4 Settings — [NETWORK] menu
106 - ENGLISH
[Info] page
Click [Info] on the control page.
45
6
7
1
2
3
8
1 [Projector Name]
Displays the projector name.
2
[Mac Address]
Displays the MAC address.
3
[Lamp Hours]
Displays the cumulative operating time (converted value) of the
projector.
4
[Power Status]
Displays the status of the power. 5
[Source]
Displays the selected image input.
6
[Lamp Mode]
Displays the light source mode.
7
[Error Status]
Displays the error status.
8
[Exit]
Returns to the...")
Chapter 4 Settings — [NETWORK] menu 106 - ENGLISH [Info] page Click [Info] on the control page. 45 6 7 1 2 3 8 1 [Projector Name] Displays the projector name. 2 [Mac Address] Displays the MAC address. 3 [Lamp Hours] Displays the cumulative operating time (converted value) of the projector. 4 [Power Status] Displays the status of the power. 5 [Source] Displays the selected image input. 6 [Lamp Mode] Displays the light source mode. 7 [Error Status] Displays the error status. 8 [Exit] Returns to the...
Page 107
![Page 107
Chapter 4 Settings — [DIGITAL LINK] menu
ENGLISH - 107
[DIGITAL LINK] menu
On the menu screen, select [DIGITAL LINK] from the main menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
Switch the input to DIGITAL LINK.
Note
fWhen the optional digital interface box (Model No.: ET-YFB100G) is connected to the terminal, the main menu of
ET-YFB100G is displayed. Refer to the user manual supplied with ET-YFB100G for details.
f When a twisted-pair-cable...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-106.png "Page 107
Chapter 4 Settings — [DIGITAL LINK] menu
ENGLISH - 107
[DIGITAL LINK] menu
On the menu screen, select [DIGITAL LINK] from the main menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
Switch the input to DIGITAL LINK.
Note
fWhen the optional digital interface box (Model No.: ET-YFB100G) is connected to the terminal, the main menu of
ET-YFB100G is displayed. Refer to the user manual supplied with ET-YFB100G for details.
f When a twisted-pair-cable...")
Chapter 4 Settings — [DIGITAL LINK] menu ENGLISH - 107 [DIGITAL LINK] menu On the menu screen, select [DIGITAL LINK] from the main menu. Refer to “Navigating through the menu” ( x page 41) for the operation of the menu screen. Switch the input to DIGITAL LINK. Note fWhen the optional digital interface box (Model No.: ET-YFB100G) is connected to the terminal, the main menu of ET-YFB100G is displayed. Refer to the user manual supplied with ET-YFB100G for details. f When a twisted-pair-cable...
Page 108

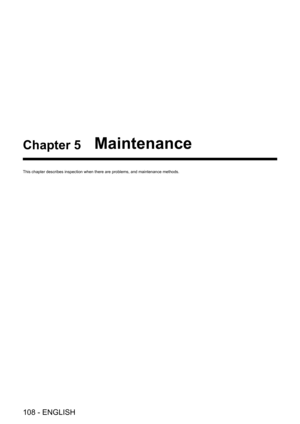

![Page 108
108 - ENGLISH
Chapter 5 Maintenance
This chapter describes inspection when there are problems, and maintenan\
ce methods.](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-107.png "Page 108
108 - ENGLISH
Chapter 5 Maintenance
This chapter describes inspection when there are problems, and maintenan\
ce methods.")
108 - ENGLISH Chapter 5 Maintenance This chapter describes inspection when there are problems, and maintenan\ ce methods.
Page 109
![Page 109

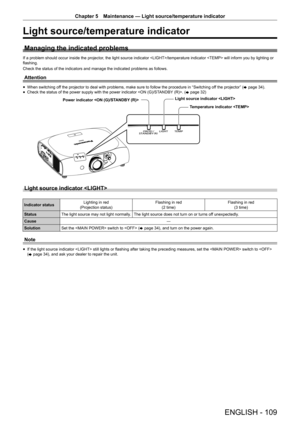

Chapter 5 Maintenance — Light source/temperature indicator
ENGLISH - 109
Light source/temperature indicator
Managing the indicated problems
If a problem should occur inside the projector, the light source indicator /temperature indicator will i\
nform you by lighting or
flashing.
Check the status of the indicators and manage the indicated problems as \
follows.
Attention
fWhen switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector” (
x page...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-108.png "Page 109
Chapter 5 Maintenance — Light source/temperature indicator
ENGLISH - 109
Light source/temperature indicator
Managing the indicated problems
If a problem should occur inside the projector, the light source indicator /temperature indicator will i\
nform you by lighting or
flashing.
Check the status of the indicators and manage the indicated problems as \
follows.
Attention
fWhen switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector” (
x page...")
Chapter 5 Maintenance — Light source/temperature indicator ENGLISH - 109 Light source/temperature indicator Managing the indicated problems If a problem should occur inside the projector, the light source indicator /temperature indicator will i\ nform you by lighting or flashing. Check the status of the indicators and manage the indicated problems as \ follows. Attention fWhen switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector” ( x page...
Page 110
Chapter 5 Maintenance — Light source/temperature indicator 110 - ENGLISH Temperature indicator Indicator statusLighting in redFlashing in red (1 time) Flashing in red (2 time) Flashing in red (3 time) Status Warm-up status Internal temperature is high (warning).Internal temperature is high (during projection).Internal temperature is high (standby warning). The fan has stopped. Cause f Did you turn on the power when the room temperature was low (about 0 °C (32 °F))? f Is the air...
