Panasonic Projector Pt Rw330u Operating Instructions

Chapter 6 Appendix — Technical information
ENGLISH - 121
List of compatible signals
The following table specifies the types of signals compatible with the projector .
 fSignals that show formats are as follows.
 gV: V

ideo
 gR: RGB gY: YCBCR/YPBPR gD: DVI-I gH: HDMI
Mode Resolution
(Dots) Scanning frequency
Dot
clock  freq.
(MHz) Format Plug and play
*1
Horizontal
(kHz) Vertical
(Hz) COMPUTER/
DVI-I
Analog EDID DVI-I digital
HDMI/
DIGITAL  LINK
EDID1 EDID2 EDID3
NTSC/NTSC4.43/ PAL-M/PAL60 720 x 480i...

Chapter 6 Appendix — Technical information
122 - ENGLISH
ModeResolution
(Dots) Scanning frequency
Dot
clock  freq.
(MHz) Format Plug and play
*1
Horizontal
(kHz) Vertical
(Hz) COMPUTER/
DVI-I
Analog EDID DVI-I digital
HDMI/
DIGITAL  LINK
EDID1 EDID2 EDID3
SXGA 1 280 x 1 024 64.0 60.0 108.0 R/D/H
l―
l l l
1 280 x 1 024 80.0 75.0 135.0 R/D/H l―
l l l
1 280 x 1 024 91.1 85.0 157.5 R/D/H ― ― ― ― ―
SXGA+ 1 400 x 1 050 65.2 60.0 122.6 R/D/H
l―
l l l
1 400 x 1 050 65.3 60.0 121.8 R/D/H ― ― ― ― ―
1 400 x 1 050...

Chapter 6 Appendix — Specifications
ENGLISH - 123
Specifications
The following table describes the specifications of the projector.
Model No.PT-RZ370U PT-RW330U
Power supply AC 100 V - 240 V 50 Hz/60 Hz
Power consumption 460 W (5.2 A - 2.0 A)
0.5 W when [STANDBY MODE] is set to [ECO]
8 W when [STANDBY MODE] is set to [NORMAL] (when fan is stopped)
DLP chips Panel size
16.5 mm (0.65") (aspect ratio 16:9) 16.5 mm (0.65") (aspect ratio 16:10)
Display method 1-unit DLP chips, DLP type
Number of...

Chapter 6 Appendix — Specifications
124 - ENGLISH
Model No.PT-RZ370U PT-RW330U
Color system 7 standards (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/SECAM/PAL60)
Projection screen size 1.02 m (40") - 7.62 m (300")
Screen aspect ratio 16:916:10
Projection method [FRONT/CEILING], [FRONT/FLOOR], [REAR/CEILING], [REAR/FLOOR]
Terminal  terminal
1 set, high-density D-Sub 15
 p (female)
RGB signals 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)
SYNC/HDTTL

 high impedance, automatic positive/negative
polarity...

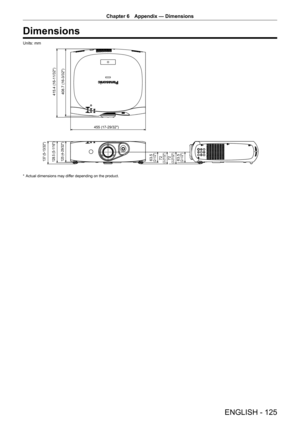

Chapter 6 Appendix — Dimensions
ENGLISH - 125
Dimensions
Units: mm
415.4 (16-11/32)408.7 (16-3/32)
137 (5-13/32)
128.5 (5-1/16) 125 (4-29/32)63.5(2-1/2)63.5(2-1/2)72(2-27/32)72(2-27/32)
455 (17-29/32)
* Actual dimensions may differ depending on the product.

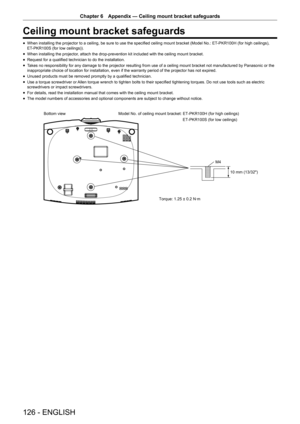

Chapter 6 Appendix — Ceiling mount bracket safeguards
126 - ENGLISH
Ceiling mount bracket safeguards
 fWhen installing the projector to a ceiling, be sure to use the specified ceiling mount bracket (Model No.: ET
-PKR100H (for high ceilings),
ET-PKR100S (for low ceilings)).
 f When installing the projector, attach the drop-prevention kit included with the ceiling mount bracket\
.
 fRequest for a qualified technician to do the installation.
 fTakes no responsibility for any damage to the projector...

ENGLISH - 127
Index
AAccessories ………………………………………17
 terminal ………………………………… 20
Adjusting adjustable feet ………………………… 26
[ADVANCED MENU] ……………………… 43, 55
[ASPECT] ………………………………………… 52
[AUDIO SETTING] ……………………………… 77
[AUT

O SETUP]
 …………………………………… 61
 button
Remote control
 …………………………… 19, 38
Auto setup function ……………………………… 38
[AUTO SIGNAL] ………………………………… 61
[A

V MUTE]
 ………………………………………… 68
 buttonRemote control
 …………………………… 19, 37
A

V mute function
 ………………………………… 37
B[BACK COLOR] …………………………………66
[BLANKING]...

Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authoriti\
es or dealer and ask for
the correct method of disposal.
Panasonic System Communications Company of North America
One Panasonic Way 2F-13, Secaucus, NJ 07094
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
