Chapter 4 Settings — [POSITION] menu
ENGLISH - 91
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2)
Press the  button.
 fThe

[ZOOM] screen is displayed.
3)

Press
 as to select [MODE].
4)

Press
 qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
 qw to switch the item.
[OFF] Sets the...

Chapter 4 Settings — [POSITION] menu
92 - ENGLISH
[CURVED CORRECTION]Adjusts any curved distortion in the projected image.
[PC-1]
*1
Performs geometric adjustment using a computer.
[PC-2]*1
[PC-3]*1
*1 Only for PT- RZ970.
Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer . Up to three geometric adjustments
performed using the computer can be saved.

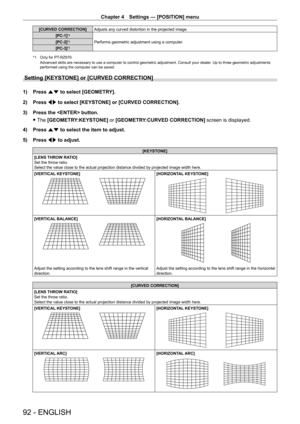

Setting [KEYSTONE] or [CURVED CORRECTION]
1) Press  as to select [GEOMETRY].
2)
Press
 qw to select...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 93
[CURVED CORRECTION]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press  as to select [GEOMETRY].
2)
Press
 qw to select [CORNER CORRECTION].
3)

Press the  button.
 fThe

[GEOMETRY:CORNER CORRECTION] screen is displayed.
4)

Press
 as to select the item to adjust, and press the  button.
5)

Press
 asqw to adjust.
[CORNER CORRECTION]
[UPPER...

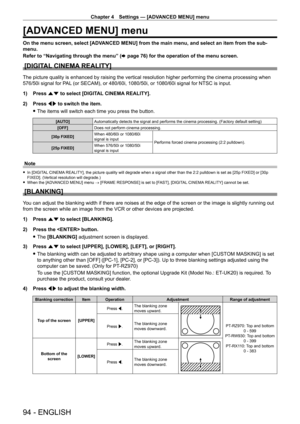

Chapter 4 Settings — [ADVANCED MENU] menu
94 - ENGLISH
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub‑
menu.
Refer to “Navigating through the menu” (x

  page   76) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when
576/50i signal for PAL (or SECAM), or 480/60i, 1080/50i, or 1080/60i signal for NTSC is input.
1)...

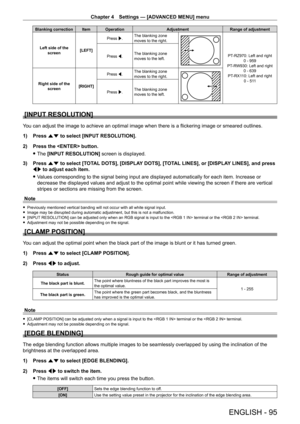

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 95
Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the  screen [LEFT]Press w.
The blanking zone
moves to the right.
PT-
RZ970: Left and right
0 - 959
PT
-

RW930: Left and right  0 - 639
PT
-

RX110: Left and right  0 - 511
Press q.
The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press q.
The blanking zone
moves to the right.
Press w.The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can...

Chapter 4 Settings — [ADVANCED MENU] menu
96 - ENGLISH

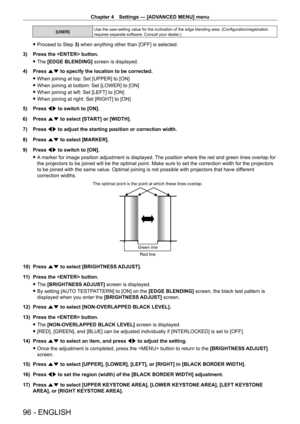

[USER]Use the user-setting value for the inclination of the edge blending area. (Configuration/registration
requires separate software. Consult your dealer.)
 f
Proceed to Step  3) when anything other than [OFF] is selected.
3)

Press the  button.
 f The

[EDGE BLENDING] screen is displayed.
4)

Press
 as to specify the location to be corrected.
 fWhen joining at top: Set [UPPER] to [ON]
 fWhen joining at bottom: Set [LOWER] to [ON]
 fWhen...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 97
18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] a\
nd [BLACK
BORDER LEVEL].
19)

Press
 as to select [BLACK BORDER LEVEL].
20)

Press the  button.
 fThe

[BLACK BORDER LEVEL] screen is displayed.
 f[RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
21)


Press
 as to select an item, and press qw to adjust the setting.
 fOnce the adjustment is completed, press the  button...

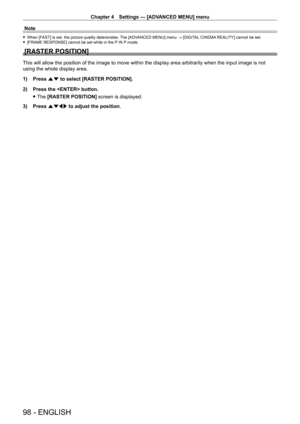

Chapter 4 Settings — [ADVANCED MENU] menu
98 - ENGLISH
Note
 fWhen [FAST] is set, the picture quality deteriorates. The [ADVANCED MENU] menu → [DIGITAL CINEMA REALITY] cannot be set. f[FRAME RESPONSE] cannot be set while in the P
 IN P mode.
[RASTER POSITION]
This will allow the position of the image to move within the display area arbitrarily when the input image is not
using the whole display area.
1)

Press
 as to select [RASTER POSITION].
2)

Press the  button.
 fThe

[RASTER POSITION]  screen...

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
ENGLISH - 99
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub‑menu.
Refer to “Navigating through the menu” ( x
  page   76) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)

Press
 as to select the display language and press the  button.
ENTER
DISPLAY LANGUAGE
SELECT
SET
 fVarious menus, settings, adjustment screens,...

Chapter 4 Settings — [DISPLAY OPTION] menu
100 - ENGLISH
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub‑
menu.
Refer to “Navigating through the menu” (x

  page   76) for the operation of the menu screen.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press as to select [COLOR MATCHING].
2)
Press
 qw to switch the item.
 fThe...
