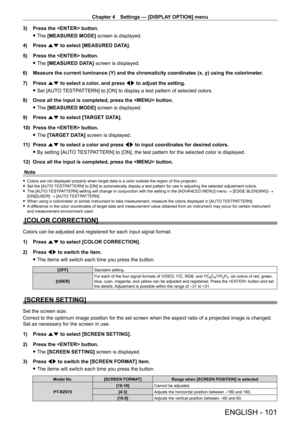

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 101
3) Press the  button.
 fThe

[MEASURED MODE] screen is displayed.
4)

Press
 as to select [MEASURED DATA].
5)

Press the  button.
 fThe

[MEASURED DATA] screen is displayed.
6)

Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter .
7)


Press
 as to select a color, and press qw to adjust the setting.
 fSet [AUT

O TESTPATTERN] to [ON] to display a test pattern of selected colors.
8)

Once all the...

Chapter 4 Settings — [DISPLAY OPTION] menu
102 - ENGLISH
Model No.[SCREEN FORMAT] Range when [SCREEN POSITION] is selected
PT
-
 RW930 [16:10]
Cannot be adjusted.
[16:9] Adjusts the vertical position between
-40 and 40.
PT
-

RX110 [4:3]
Cannot be adjusted.

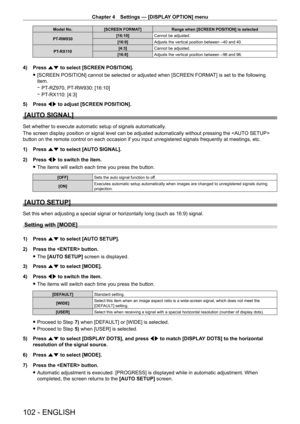

[16:9] Adjusts the vertical position between
-96 and 96.
4) Press as to select [SCREEN POSITION].
 f[SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMA T] is set to the following
item.
 g PT-

RZ970, PT
-
 RW930: [16:10]
 gPT-...

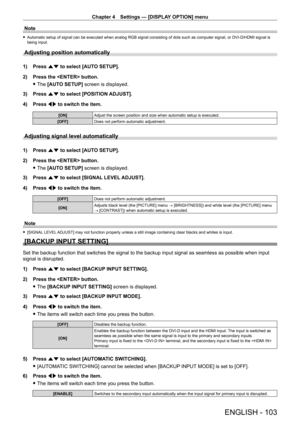

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 103
Note
 fAutomatic setup of signal can be executed when analog RGB signal consisting of dots such as computer signal, or DVI - D/HDMI signal is
being input.
Adjusting position automatically
1) Press  as to select [AUTO SETUP].
2)
Press the  button.
 fThe

[AUTO SETUP] screen is displayed.
3)

Press
 as to select [POSITION ADJUST].
4)

Press
 qw to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed....

Chapter 4 Settings — [DISPLAY OPTION] menu
104 - ENGLISH

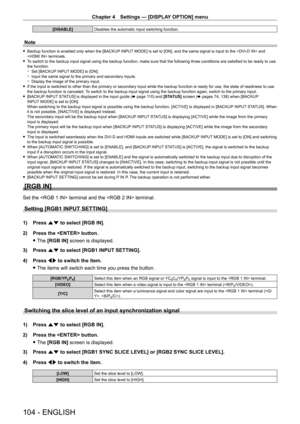

[DISABLE]Disables the automatic input switching function.
Note
 fBackup function is enabled only when the [BACKUP  INPUT MODE] is set to [ON], and the same signal is input to the  and
 terminals.
 f T

o switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use
the function.
 g Set [BACKUP

 INPUT MODE] to [ON].
 gInput the same signal to the primary and secondary...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 105

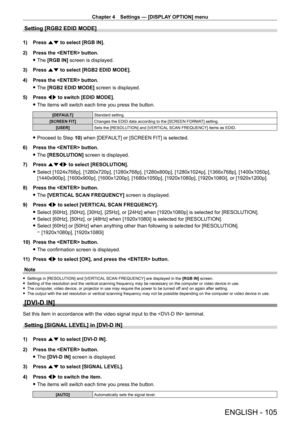

Setting [RGB2 EDID MODE]
1) Press as to select [RGB IN].
2)
Press the  button.
 fThe

[RGB IN] screen is displayed.
3)

Press
 as to select [RGB2 EDID MODE].
4)

Press the  button.
 fThe

[RGB2 EDID MODE] screen is displayed.
5)

Press
 qw to switch [EDID MODE].
 fThe items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the...

Chapter 4 Settings — [DISPLAY OPTION] menu
106 - ENGLISH

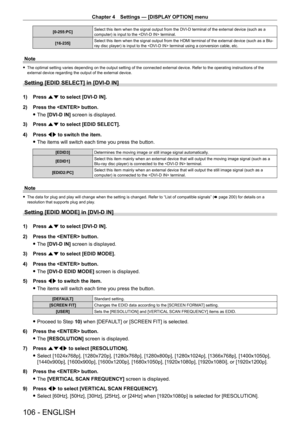

[0-255:PC]Select this item when the signal output from the DVI - D terminal of the external device (such as a
computer) is input to the  terminal.
[16-235] Select this item when the signal output from the HDMI terminal of the external device (such as a Blu-
ray disc player) is input to the  terminal using a conversion cable, etc.
Note
 f
The optimal setting varies depending on the output setting of the connected external device. Refer to the...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 107

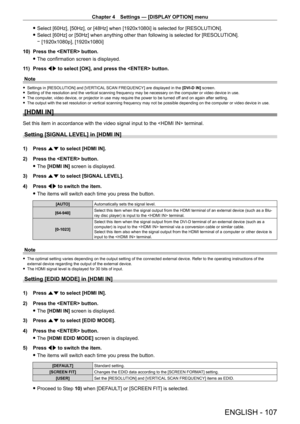

 fSelect [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
 fSelect [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION].
 g[1920x1080p], [1920x1080i]
10)


Press the  button.
 f The confirmation screen is displayed.
1

1)

Press
 qw to select [OK], and press the  button.
Note
 f Settings in [RESOLUTION] and [VER TICAL SCAN FREQUENCY] are displayed in the  [DVI-D IN] screen. fSetting of the...

Chapter 4 Settings — [DISPLAY OPTION] menu
108 - ENGLISH
6) Press the  button.
 fThe

[RESOLUTION] screen is displayed.
7)

Press
 asqw to select [RESOLUTION].

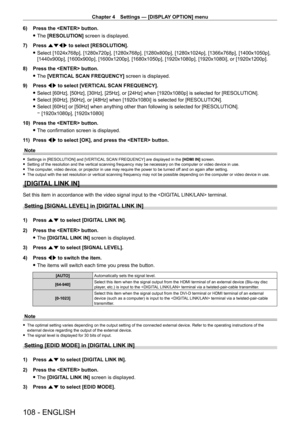

 fSelect [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],
[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8)


Press the  button.
 fThe

[VERTICAL SCAN FREQUENCY] screen is displayed.
9)

Press
 qw to select [VERTICAL SCAN FREQUENCY].
 fSelect...

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 109
4) Press the  button.
 fThe

[DIGITAL LINK EDID MODE] screen is displayed.
5)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.

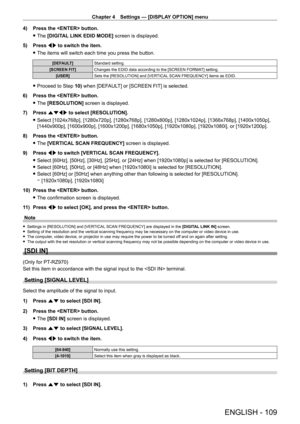

[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
 fProceed to Step  10) when [DEFAULT] or [SCREEN FIT] is selected.
6)

Press the  button.
 f The...

Chapter 4 Settings — [DISPLAY OPTION] menu
110 - ENGLISH
2) Press the  button.
 fThe

[SDI IN] screen is displayed.
3)

Press
 as to select [BIT DEPTH].
4)

Press
 qw to switch the item.

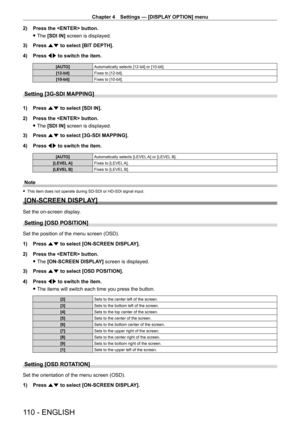

[AUTO] Automatically selects [12-bit] or [10-bit].
[12-bit] Fixes to [12-bit].
[10-bit] Fixes to [10-bit].
Setting [3G-SDI MAPPING]
1) Press as to select [SDI IN].
2)
Press the  button.
 fThe

[SDI IN] screen is displayed.
3)

Press
 as to select [3G-SDI MAPPING].
4)

Press
 qw to switch the item.
[AUTO]...
