Stiga Lawn Tractor 8211 0009 70 Ready HST Operators Manual

41
ENGLISHEN

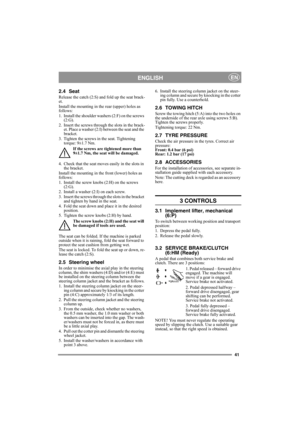

2.4 Seat
Release the catch (2:S) and fold up the seat brack-
et.
Install the mounting in the rear (upper) holes as
follows:
1. Install the shoulder washers (2:F) on the screws
(2:G).
2. Insert the screws through the slots in the brack-
et. Place a washer (2:I) between the seat and the
bracket.
3. Tighten the screws in the seat. Tightening
torque: 9±1.7 Nm.
If the screws are tightened more than
9±1.7 Nm, the seat will be damaged.
4. Check that the seat moves easily in the slots in
the...

42
ENGLISHEN

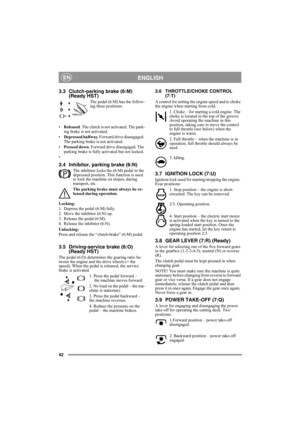

3.3 Clutch-parking brake (6:M)
(Ready HST)
The pedal (6:M) has the follow-
ing three positions:
•Released. The clutch is not activated. The park-
ing brake is not activated.
•Depressed halfway. Forward drive disengaged.
The parking brake is not activated.
•Pressed down. Forward drive disengaged. The
parking brake is fully activated but not locked.
•
3.4 Inhibitor, parking brake (6:N)
The inhibitor locks the (6:M) pedal in the
depressed position. This function is used
to lock the machine...

43
ENGLISHEN
3.10 CLUTCH RELEASE LEVER
(fig. 8) (Ready HST)
A lever for disengaging the variable transmission.
Enables the machine to be moved by hand without
the help of the engine. Two positions:
1. Lever pressed in –
transmission engaged for normal
operation.
2. Lever pulled out –
transmission disengaged. The
machine can be moved by hand.
The machine may not be towed over long distances
or at high speeds. The transmission could be
damaged.
4 AREAS OF USE
The machine may only be used for the...

44
ENGLISHEN
5.5 STARTING ENGINE
1. Open the fuel cock (fig. 11).
2. Make sure that the spark plug cable is properly
in place.
3. Check to make sure that the power take-off is
disengaged.
4a. Ready: Put the gear lever in neutral.
4b. Ready HST: Do not keep your foot on the
drive pedal.
5. Starting cold engine – put the throttle control in
the choke position. Starting warm engine – put the
throttle control at full throttle (approx. 1 cm behind
the choke position).
6. Depress the brake pedal...

45
ENGLISHEN

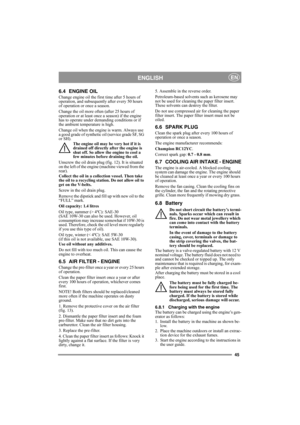

6.4 ENGINE OIL
Change engine oil the first time after 5 hours of
operation, and subsequently after every 50 hours
of operation or once a season.
Change the oil more often (after 25 hours of
operation or at least once a season) if the engine
has to operate under demanding conditions or if
the ambient temperature is high.
Change oil when the engine is warm. Always use
a good grade of synthetic oil (service grade SF, SG
or SH).
The engine oil may be very hot if it is
drained off...

46
ENGLISHEN
4. Allow the engine to run continuously for 45
minutes.
5. Stop the engine. The battery will now be fully
charged.
6.8.2 Charging using battery charger
When charging using a battery charger, a battery
charger with constant voltage must be used.
Contact your dealer to purchase a battery charger
with constant voltage.
The battery can be damaged if a standard type
battery charger is used.
6.8.3 Removal/Installation
The battery is placed under the engine casing. Dur-
ing...

47
FRANÇAISFR

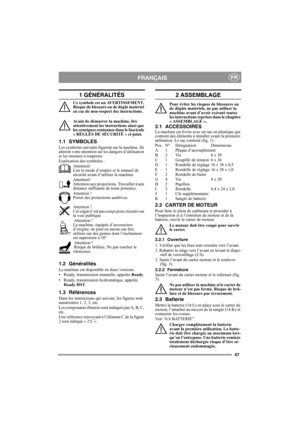

1 GÉNÉRALITÉS
Ce symbole est un AVERTISSEMENT.
Risque de blessure ou de dégât matériel
en cas de non-respect des instructions.
Avant de démarrer la machine, lire
attentivement les instructions ainsi que
les consignes contenues dans le fascicule
« RÈGLES DE SÉCURITÉ » ci-joint.
1.1 SYMBOLES
Les symboles suivants figurent sur la machine. Ils
attirent votre attention sur les dangers d’utilisation
et les mesures à respecter.
Explication des symboles :
Attention!
Lire le mode d’emploi et...

48
FRANÇAISFR

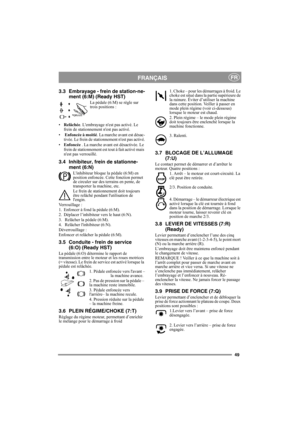

2.4 Siège
Relâcher la sécurité (2:S) et replier le support du
siège.
Visser le support par les orifices arrière
(supérieurs), comme suit :
1. Mettre les rondelles (2:F) sur les vis (2:G).
2. Guider les vis par les encoches du support. Pla-
cer une rondelle (2:I) entre le siège et le support.
3. Serrer les vis dans le siège. Couple de serrage :
9±1,7 Nm.
Serrer davantage les vis endommagera
le siège.
4. Vérifier que le siège coulisse facilement dans
les encoches du support.
Visser le...

49
FRANÇAISFR
3.3 Embrayage - frein de station-ne-
ment (6:M) (Ready HST)
La pédale (6:M) se règle sur
trois positions :
•Relâchée. Lembrayage nest pas activé. Le
frein de stationnement nest pas activé.
• Enfoncée à moitié. La marche avant est désac-
tivée. Le frein de stationnement nest pas activé.
•Enfoncée . La marche avant est désactivée. Le
frein de stationnement est tout à fait activé mais
nest pas verrouillé.
3.4 Inhibiteur, frein de stationne-
ment (6:N)
Linhibiteur bloque la pédale (6:M) en...

50
FRANÇAISFR
3.10 LEVIER DE DÉBRAYAGE
(fig. 8) (Ready HST)
Levier permettant de débrayer la transmission
variable, ce qui permet de bouger la machine à la
main, moteur éteint. Deux positions sont possibles
:
1. Levier enfoncé – la
transmission est activée pour un
fonctionnement normal.
2. Levier tiré – débrayage de la
transmission. La machine peut
être déplacée manuellement.
Ne pas remorquer la machine sur
de longues distances ou à des vitesses élevées pour
éviter d’endommager la transmission....
