NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 113
Revision 1.0

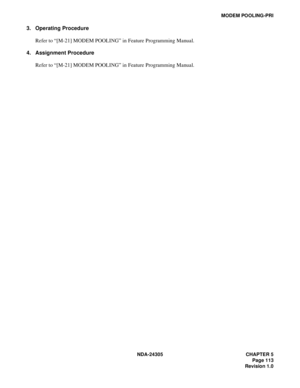

MODEM POOLING-PRI
3. Operating Procedure
Refer to “[M-21] MODEM POOLING” in Feature Programming Manual.
4. Assignment Procedure
Refer to “[M-21] MODEM POOLING” in Feature Programming Manual.

CHAPTER 5 NDA-24305
Pag e 1 14
Revision 1.0

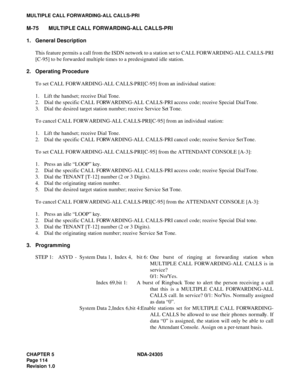

MULTIPLE CALL FORWARDING-ALL CALLS-PRI
M-75 MULTIPLE CALL FORWARDING-ALL CALLS-PRI
1. General Description
This feature permits a call from the ISDN network to a station set to CALL FORWARDING-ALL CALLS-PRI
[C-95] to be forwarded multiple times to a predesignated idle station.
2. Operating Procedure
To set CALL FORWARDING-ALL CALLS-PRI[C-95] from an individual station:
1. Lift the handset; receive Dial Tone.
2. Dial the specific CALL FORWARDING-ALL CALLS-PRI...

NDA-24305 CHAPTER 5
Page 115
Revision 1.0

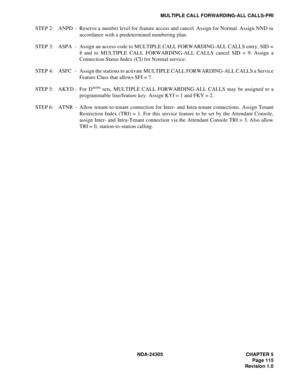

MULTIPLE CALL FORWARDING-ALL CALLS-PRI
STEP 2: ANPD - Reserve a number level for feature access and cancel. Assign for Normal. Assign NND in
accordance with a predetermined numbering plan.
STEP 3: ASPA - Assign an access code to MULTIPLE CALL FORWARDING-ALL CALLS entry, SID =
8 and to MULTIPLE CALL FORWARDING-ALL CALLS cancel SID = 9. Assign a
Connection Status Index (CI) for Normal service.
STEP 4: ASFC - Assign the stations to activate MULTIPLE CALL...

CHAPTER 5 NDA-24305
Pag e 1 16
Revision 1.0

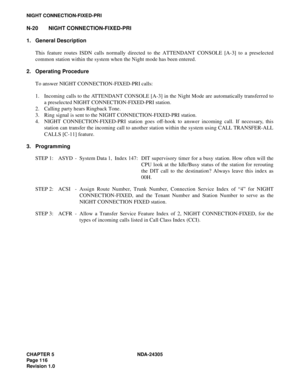

NIGHT CONNECTION-FIXED-PRI
N-20 NIGHT CONNECTION-FIXED-PRI
1. General Description
This feature routes ISDN calls normally directed to the ATTENDANT CONSOLE [A-3] to a preselected
common station within the system when the Night mode has been entered.
2. Operating Procedure
To answer NIGHT CONNECTION-FIXED-PRI calls:
1. Incoming calls to the ATTENDANT CONSOLE [A-3] in the Night Mode are automatically transferred to
a preselected NIGHT CONNECTION-FIXED-PRI...

NDA-24305 CHAPTER 5
Page 117
Revision 1.0

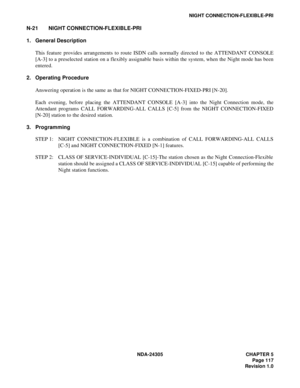

NIGHT CONNECTION-FLEXIBLE-PRI
N-21 NIGHT CONNECTION-FLEXIBLE-PRI
1. General Description
This feature provides arrangements to route ISDN calls normally directed to the ATTENDANT CONSOLE
[A-3] to a preselected station on a flexibly assignable basis within the system, when the Night mode has been
entered.
2. Operating Procedure
Answering operation is the same as that for NIGHT CONNECTION-FIXED-PRI [N-20].
Each evening, before placing the ATTENDANT CONSOLE [A-3]...

CHAPTER 5 NDA-24305
Pag e 1 18
Revision 1.0

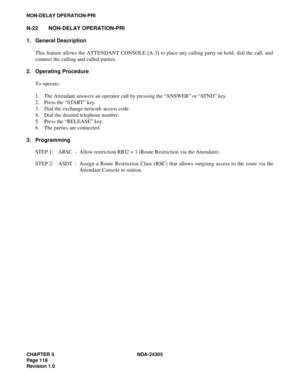

NON-DELAY OPERATION-PRI
N-22 NON-DELAY OPERATION-PRI
1. General Description
This feature allows the ATTENDANT CONSOLE [A-3] to place any calling party on hold, dial the call, and
connect the calling and called parties.
2. Operating Procedure
To operate:
1. The Attendant answers an operator call by pressing the “ANSWER” or “ATND” key.
2. Press the “START” key.
3. Dial the exchange network access code.
4. Dial the desired telephone number.
5. Press the “RELEASE”...

NDA-24305 CHAPTER 5
Page 119
Revision 1.0

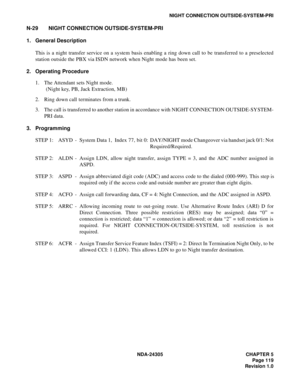

NIGHT CONNECTION OUTSIDE-SYSTEM-PRI
N-29 NIGHT CONNECTION OUTSIDE-SYSTEM-PRI
1. General Description
This is a night transfer service on a system basis enabling a ring down call to be transferred to a preselected
station outside the PBX via ISDN network when Night mode has been set.
2. Operating Procedure
1. The Attendant sets Night mode.
(Night key, PB, Jack Extraction, MB)
2. Ring down call terminates from a trunk.
3. The call is transferred to another station...

CHAPTER 5 NDA-24305
Pag e 1 20
Revision 1.0

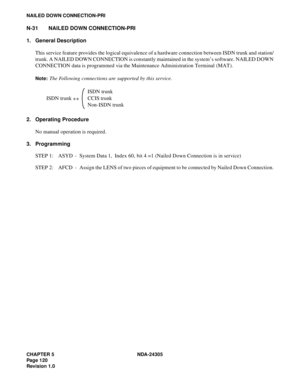

NAILED DOWN CONNECTION-PRI
N-31 NAILED DOWN CONNECTION-PRI
1. General Description
This service feature provides the logical equivalence of a hardware connection between ISDN trunk and station/
trunk. A NAILED DOWN CONNECTION is constantly maintained in the system’s software. NAILED DOWN
CONNECTION data is programmed via the Maintenance Administration Terminal (MAT).
Note:The Following connections are supported by this service.
2. Operating Procedure
No manual...

NDA-24305 CHAPTER 5
Page 121
Revision 1.0

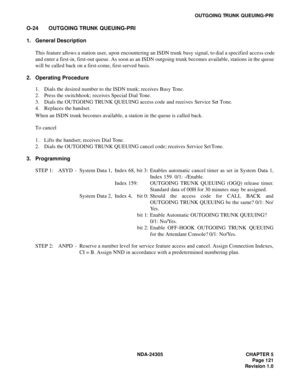

OUTGOING TRUNK QUEUING-PRI
O-24 OUTGOING TRUNK QUEUING-PRI
1. General Description
This feature allows a station user, upon encountering an ISDN trunk busy signal, to dial a specified access code
and enter a first-in, first-out queue. As soon as an ISDN outgoing trunk becomes available, stations in the queue
will be called back on a first-come, first-served basis.
2. Operating Procedure
1. Dials the desired number to the ISDN trunk; receives Busy Tone.
2. Press...

CHAPTER 5 NDA-24305
Pag e 1 22
Revision 1.0

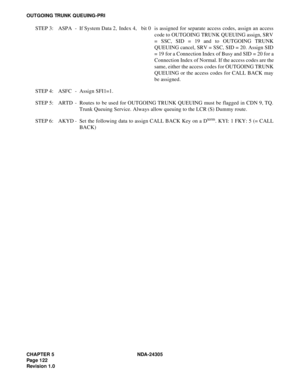

OUTGOING TRUNK QUEUING-PRI
STEP 3: ASPA - If System Data 2, Index 4, bit 0 is assigned for separate access codes, assign an access
code to OUTGOING TRUNK QUEUING assign, SRV
= SSC, SID = 19 and to OUTGOING TRUNK
QUEUING cancel, SRV = SSC, SID = 20. Assign SID
= 19 for a Connection Index of Busy and SID = 20 for a
Connection Index of Normal. If the access codes are the
same, either the access codes for OUTGOING TRUNK
QUEUING or the access codes for CALL BACK...
