NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 123
Revision 1.0

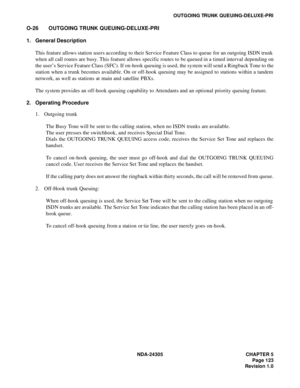

OUTGOING TRUNK QUEUING-DELUXE-PRI
O-26 OUTGOING TRUNK QUEUING-DELUXE-PRI
1. General Description
This feature allows station users according to their Service Feature Class to queue for an outgoing ISDN trunk
when all call routes are busy. This feature allows specific routes to be queued in a timed interval depending on
the user’s Service Feature Class (SFC). If on-hook queuing is used, the system will send a Ringback Tone to the
station when a trunk becomes...

CHAPTER 5 NDA-24305
Pag e 1 24
Revision 1.0
OUTGOING TRUNK QUEUING-DELUXE-PRI

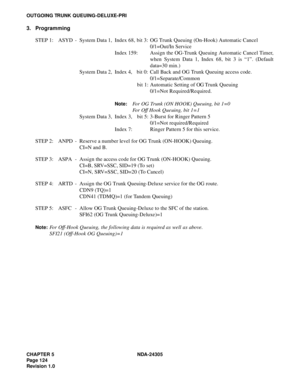

3. Programming
STEP 1: ASYD - System Data 1, Index 68, bit 3: OG Trunk Queuing (On-Hook) Automatic Cancel
0/1=Out/In Service
Index 159: Assign the OG-Trunk Queuing Automatic Cancel Timer,
when System Data 1, Index 68, bit 3 is “1”. (Default
data=30 min.)
System Data 2, Index 4, bit 0: Call Back and OG Trunk Queuing access code.
0/1=Separate/Common
bit 1: Automatic Setting of OG Trunk Queuing
0/1=Not Required/Required.
Note:For...

NDA-24305 CHAPTER 5
Page 125
Revision 1.0

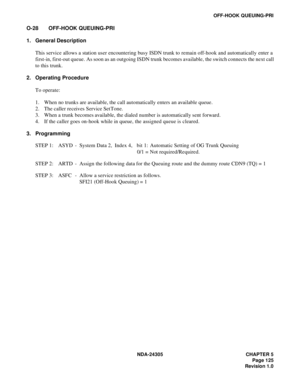

OFF-HOOK QUEUING-PRI
O-28 OFF-HOOK QUEUING-PRI
1. General Description
This service allows a station user encountering busy ISDN trunk to remain off-hook and automatically enter a
first-in, first-out queue. As soon as an outgoing ISDN trunk becomes available, the switch connects the next call
to this trunk.
2. Operating Procedure
To operate:
1. When no trunks are available, the call automatically enters an available queue.
2. The caller receives Service Set Tone....

CHAPTER 5 NDA-24305
Pag e 1 26
Revision 1.0

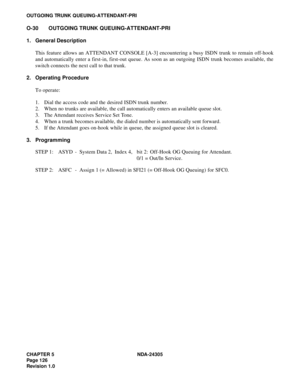

OUTGOING TRUNK QUEUING-ATTENDANT-PRI
O-30 OUTGOING TRUNK QUEUING-ATTENDANT-PRI
1. General Description
This feature allows an ATTENDANT CONSOLE [A-3] encountering a busy ISDN trunk to remain off-hook
and automatically enter a first-in, first-out queue. As soon as an outgoing ISDN trunk becomes available, the
switch connects the next call to that trunk.
2. Operating Procedure
To operate:
1. Dial the access code and the desired ISDN trunk number.
2. When no trunks...

NDA-24305 CHAPTER 5
Page 127
Revision 1.0

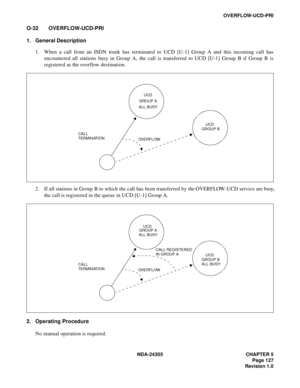

OVERFLOW-UCD-PRI
O-32 OVERFLOW-UCD-PRI
1. General Description
1. When a call from an ISDN trunk has terminated to UCD [U-1] Group A and this incoming call has
encountered all stations busy in Group A, the call is transferred to UCD [U-1] Group B if Group B is
registered as the overflow destination.
2. If all stations in Group B to which the call has been transferred by the OVERFLOW-UCD service are busy,
the call is registered in the queue in UCD [U-1] Group A.
2....

CHAPTER 5 NDA-24305
Pag e 1 28
Revision 1.0
OVERFLOW-UCD-PRI

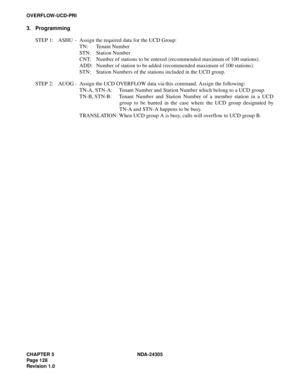

3. Programming
STEP 1: ASHU - Assign the required data for the UCD Group:
TN: Tenant Number
STN: Station Number
CNT: Number of stations to be entered (recommended maximum of 100 stations).
ADD: Number of station to be added (recommended maximum of 100 stations).
STN: Station Numbers of the stations included in the UCD group.
STEP 2: AUOG - Assign the UCD OVERFLOW data via this command. Assign the following:
TN-A, STN-A: Tenant Number and...

NDA-24305 CHAPTER 5
Page 129
Revision 1.0

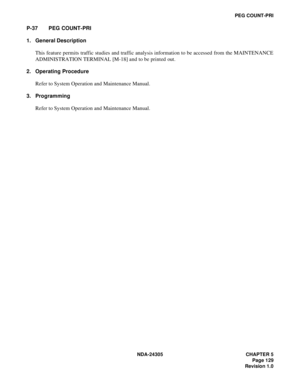

PEG COUNT-PRI
P-37 PEG COUNT-PRI
1. General Description
This feature permits traffic studies and traffic analysis information to be accessed from the MAINTENANCE
ADMINISTRATION TERMINAL [M-18] and to be printed out.
2. Operating Procedure
Refer to System Operation and Maintenance Manual.
3. Programming
Refer to System Operation and Maintenance Manual.

CHAPTER 5 NDA-24305
Pag e 1 30
Revision 1.0

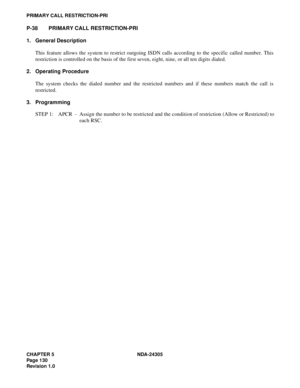

PRIMARY CALL RESTRICTION-PRI
P-38 PRIMARY CALL RESTRICTION-PRI
1. General Description
This feature allows the system to restrict outgoing ISDN calls according to the specific called number. This
restriction is controlled on the basis of the first seven, eight, nine, or all ten digits dialed.
2. Operating Procedure
The system checks the dialed number and the restricted numbers and if these numbers match the call is
restricted.
3. Programming
STEP 1: APCR -...

NDA-24305 CHAPTER 5
Page 131
Revision 1.0

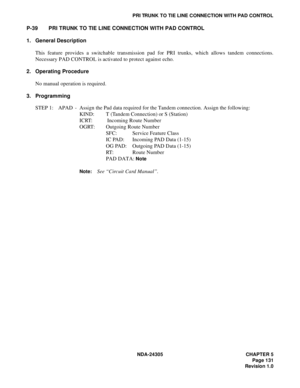

PRI TRUNK TO TIE LINE CONNECTION WITH PAD CONTROL
P-39 PRI TRUNK TO TIE LINE CONNECTION WITH PAD CONTROL
1. General Description
This feature provides a switchable transmission pad for PRI trunks, which allows tandem connections.
Necessary PAD CONTROL is activated to protect against echo.
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: APAD - Assign the Pad data required for the Tandem connection. Assign the following:
KIND: T...

CHAPTER 5 NDA-24305
Pag e 1 32
Revision 1.0

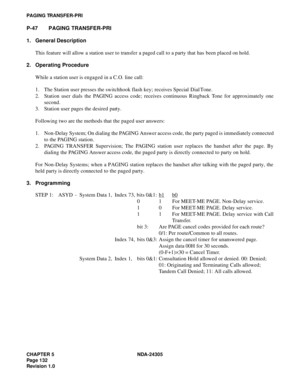

PAGING TRANSFER-PRI
P-47 PAGING TRANSFER-PRI
1. General Description
This feature will allow a station user to transfer a paged call to a party that has been placed on hold.
2. Operating Procedure
While a station user is engaged in a C.O. line call:
1. The Station user presses the switchhook flash key; receives Special Dial Tone.
2. Station user dials the PAGING access code; receives continuous Ringback Tone for approximately one
second.
3. Station user pages...
