NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 5
Page 133
Revision 1.0
PAGING TRANSFER-PRI

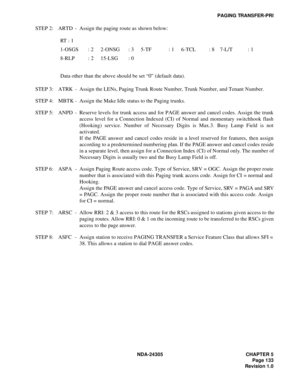

STEP 2: ARTD - Assign the paging route as shown below:
STEP 3: ATRK - Assign the LENs, Paging Trunk Route Number, Trunk Number, and Tenant Number.
STEP 4: MBTK - Assign the Make Idle status to the Paging trunks.
STEP 5: ANPD - Reserve levels for trunk access and for PAGE answer and cancel codes. Assign the trunk
access level for a Connection Indexed (CI) of Normal and momentary switchhook flash
(Hooking) service. Number of Necessary Digits is...

CHAPTER 5 NDA-24305
Pag e 1 34
Revision 1.0

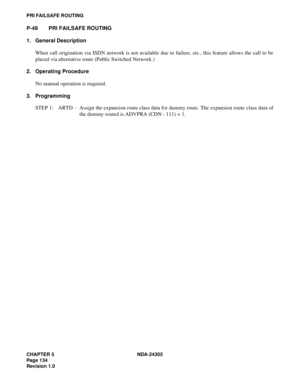

PRI FAILSAFE ROUTING
P-49 PRI FAILSAFE ROUTING
1. General Description
When call origination via ISDN network is not available due to failure, etc., this feature allows the call to be
placed via alternative route (Public Switched Network.)
2. Operating Procedure
No manual operation is required.
3. Programming
STEP 1: ARTD - Assign the expansion route class data for dummy route. The expansion route class data of
the dummy routed is ADVPRA (CDN : 111) = 1.

NDA-24305 CHAPTER 5
Page 135
Revision 1.0

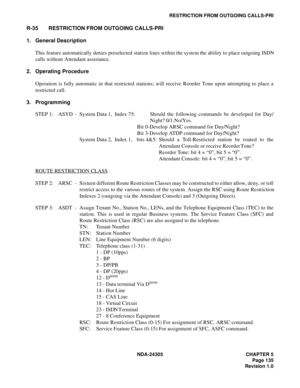

RESTRICTION FROM OUTGOING CALLS-PRI
R-35 RESTRICTION FROM OUTGOING CALLS-PRI
1. General Description
This feature automatically denies preselected station lines within the system the ability to place outgoing ISDN
calls without Attendant assistance.
2. Operating Procedure
Operation is fully automatic in that restricted stations; will receive Reorder Tone upon attempting to place a
restricted call.
3. Programming
STEP 1: ASYD - System Data 1, Index 75: Should the...

CHAPTER 5 NDA-24305
Pag e 1 36
Revision 1.0

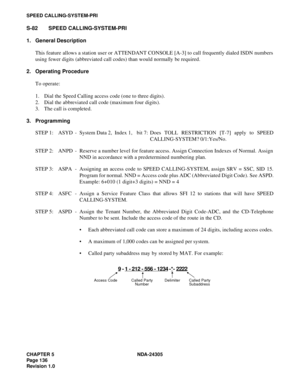

SPEED CALLING-SYSTEM-PRI
S-82 SPEED CALLING-SYSTEM-PRI
1. General Description
This feature allows a station user or ATTENDANT CONSOLE [A-3] to call frequently dialed ISDN numbers
using fewer digits (abbreviated call codes) than would normally be required.
2. Operating Procedure
To operate:
1. Dial the Speed Calling access code (one to three digits).
2. Dial the abbreviated call code (maximum four digits).
3. The call is completed.
3. Programming
STEP 1: ASYD -...

NDA-24305 CHAPTER 5
Page 137
Revision 1.0

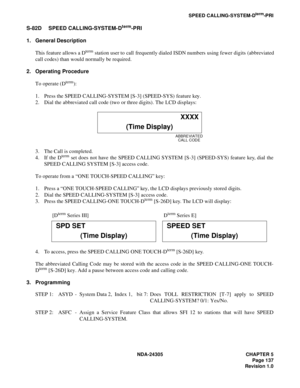

SPEED CALLING-SYSTEM-Dterm-PRI
S-82D SPEED CALLING-SYSTEM-Dterm-PRI
1. General Description
This feature allows a D
term station user to call frequently dialed ISDN numbers  using fewer digits (abbreviated
call codes) than would normally be required.
2. Operating Procedure
To operate (D
term):
1. Press the SPEED CALLING-SYSTEM [S-3] (SPEED-SYS) feature key.
2. Dial the abbreviated call code (two or three digits). The LCD displays:
3. The Call is completed.
4. If...

CHAPTER 5 NDA-24305
Pag e 1 38
Revision 1.0
SPEED CALLING-SYSTEM-Dterm-PRI

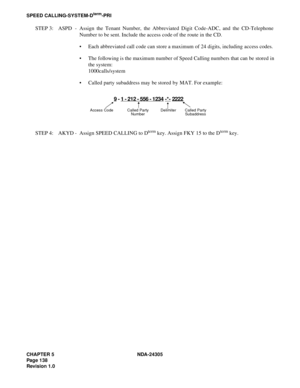

STEP 3: ASPD - Assign the Tenant Number, the Abbreviated Digit Code-ADC, and the CD-Telephone
Number to be sent. Include the access code of the route in the CD.
 Each abbreviated call code can store a maximum of 24 digits, including access codes.
 The following is the maximum number of Speed Calling numbers that can be stored in
the system:
1000calls/system
 Called party subaddress may be stored by MAT. For example:
STEP 4:...

NDA-24305 CHAPTER 5
Page 139
Revision 1.0

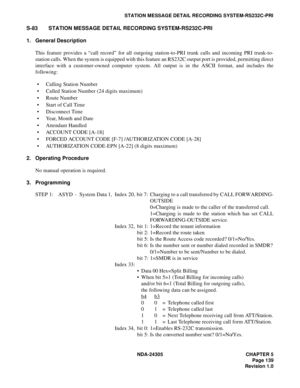

STATION MESSAGE DETAIL RECORDING SYSTEM-RS232C-PRI
S-83 STATION MESSAGE DETAIL RECORDING SYSTEM-RS232C-PRI
1. General Description
This feature provides a “call record” for all outgoing station-to-PRI trunk calls and incoming PRI trunk-to-
station calls. When the system is equipped with this feature an RS232C output port is provided, permitting direct
interface with a customer-owned computer system. All output is in the ASCII format, and includes the
following:
...

CHAPTER 5 NDA-24305
Pag e 1 40
Revision 1.0

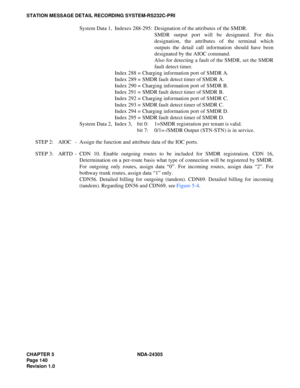

STATION MESSAGE DETAIL RECORDING SYSTEM-RS232C-PRI
System Data 1, Indexes 288-295: Designation of the attributes of the SMDR.
SMDR output port will be designated. For this
designation, the attributes of the terminal which
outputs the detail call information should have been
designated by the AIOC command.
Also for detecting a fault of the SMDR, set the SMDR
fault detect timer.
Index 288 = Charging information port of SMDR A.
Index 289 = SMDR fault detect timer...

NDA-24305 CHAPTER 5
Page 141
Revision 1.0
STATION MESSAGE DETAIL RECORDING SYSTEM-RS232C-PRI

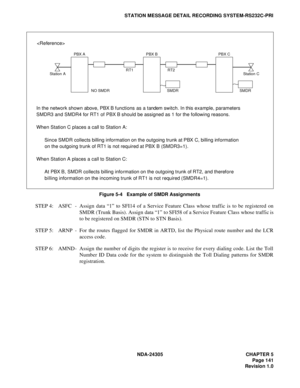

Figure 5-4   Example of SMDR Assignments
STEP 4: ASFC - Assign data “1” to SFI14 of a Service Feature Class whose traffic is to be registered on
SMDR (Trunk Basis). Assign data “1” to SFI58 of a Service Feature Class whose traffic is
to be registered on SMDR (STN to STN Basis).
STEP 5: ARNP - For the routes flagged for SMDR in ARTD, list the Physical route number and the LCR
access code.
STEP 6: AMND- Assign the...

CHAPTER 5 NDA-24305
Pag e 1 42
Revision 1.0

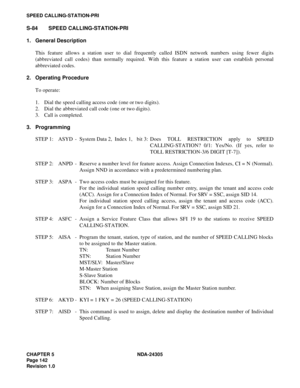

SPEED CALLING-STATION-PRI
S-84 SPEED CALLING-STATION-PRI
1. General Description
This feature allows a station user to dial frequently called ISDN network numbers using fewer digits
(abbreviated call codes) than normally required. With this feature a station user can establish personal
abbreviated codes.
2. Operating Procedure
To operate:
1. Dial the speed calling access code (one or two digits).
2. Dial the abbreviated call code (one or two digits).
3. Call is...
