AAND : Assignment of Automatic Number Identification Data
(c) When ATT, the Individual Attendant Number, is not assigned. Outgoing (AT = 1).
ROUTE
NUMBER
(RT)STA
OUTGOING/ATT
OUTGOING
(AT)OFFICE CODE
(DC)
MAXIMUM 10 DIGITSREMARKS
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

CHAPTER 4 NDA-24298
Page 778
Issue 1
AAND_LR : Assignment of Automatic Number Identification Data – Logical Route Number
AAND_LR: Assignment of Automatic Number Identification Data – Logical
Route Number
1. General
This command is used to assign ANI data for the number of digits of calling station number and the office code
on each tenant basis for the Automatic Number Identification (ANI) service (for E911 ANI). Route number of
the AAND command can be assigned by using Logical Route.
2. Precautions
1....

NDA-24298 CHAPTER 4
Page 779
Issue 1
AAND_LR : Assignment of Automatic Number Identification Data – Logical Route Number
4. Data Sheet
(a) When AT = STA outgoing, CC = Main Central is selected;

Note:This parameter can be assigned when “KT = ON.”
LOGICAL
ROUTE
NUMBER
(LGRT)
1-899FUSION
POINT
CODE
(FPC)
1-253OUTSIDE
ROUTE
NUMBER
(RT)
1-STA/ATT
OUTGOING
(AT)MAIN/
SATELLITE
CENTRAL
 (CC)EXPANSION
 OF STA
NUMBER
LENGTH
(KT)
OFF/ONSTA
NUMBER
LENGTH
(STNL)
1– 8
NoteOFFICE
CODE
TO  B E
ADDED...

CHAPTER 4 NDA-24298
Page 780
Issue 1
AAND_LR : Assignment of Automatic Number Identification Data – Logical Route Number
(b) When AT = STA, CC = Satellite Central is selected;
LOGICAL
ROUTE
NUMBER
(LGRT)
1-899FUSION
POINT
CODE
(FPC)
1-253OUTSIDE
ROUTE
NUMBER
(RT)
1-STA/ATT
OUTGOING
(AT)MAIN/
SATELLITE
CENTRAL
 (CC)CENTRAL OFFICE
CODE
(COC)
MAX. 5 DIGITSOFFICE
CODE
TO B E
ADDED
(ADD)
1–10CALL
ORIGINATOR
 DIGIT TO BE
SKIPPED
(SKIP)
0–10OFFICE CODE
(DC)
MAX. 10 DIGITS
[0-9, *, #]

NDA-24298 CHAPTER 4
Page 781
Issue 1

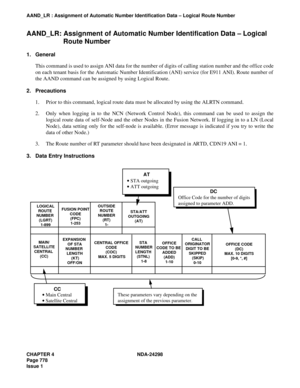

AAND_LR : Assignment of Automatic Number Identification Data – Logical Route Number
(c) When AT = ATT outgoing is selected;
LOGICAL
ROUTE
NUMBER
(LGRT)
1-899FUSION
POINT CODE
(FPC)
1-253OUTSIDE
ROUTE
NUMBER
(RT)
1-STA/ATT
OUTGOING
(AT)OFFICE CODE
(DC)
MAX. 10 DIGITS
[0-9, *, #]REMARKS

CHAPTER 4 NDA-24298
Page 782
Issue 1
AANDE : Assignment of Automatic Number Identification Expansion Data
AANDE: Assignment of Automatic Number Identification Expansion Data
1. General
This command assigns ANI data for the number of digits for the calling station number and the office code on
each tenant basis for the Automatic Number Identification Expansion (ANIE) Service. (For E911ANI)
2. Precautions
1. This data is available when E911 ANI Office Code Expansion is in service (the ASYD command, SYS 1,...

NDA-24298 CHAPTER 4
Page 783
Issue 1
AANDE : Assignment of Automatic Number Identification Expansion Data

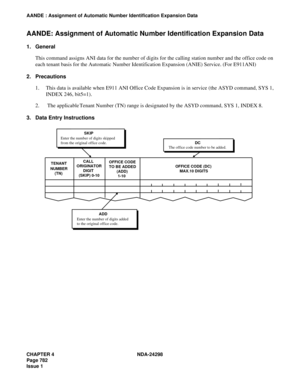

4. Data Sheet
TENANT
NUMBER
(TN)CALL
ORIGINATOR
(SKIP)
0 - 10OFFICE CODE
TO BE ADDED
(ADD)
1 - 10OFFICE CODE
(DC)
MAX. 10 DIGITS

CHAPTER 4 NDA-24298
Page 784
Issue 1
AANI : Assignment of ANI Data
AANI: Assignment of ANI Data
1. General
This command assigns Automatic Number Identification (ANI) data sent per tenant by the request from opposite
office.
2. Precautions
1. Before using this command, ASYD SYS1 INDEX 125 b4 - b7 (Type of MFC Signaling System) should
be assigned.
2. When ASYD command, SYS 2 INDEX 15, b2 = 1, the following number is sent as ANI data.
(a) Calling party is a station:
Calling party’s station number is sent....

NDA-24298 CHAPTER 4
Page 785
Issue 1
AANI : Assignment of ANI Data

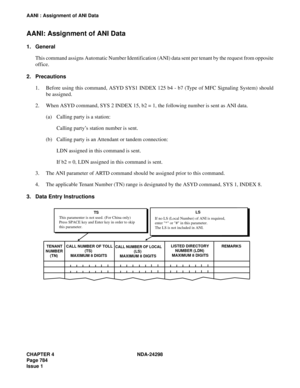

4. Data Sheet
TENANT
NUMBER
(TN)CALL NUMBER OF TOLL
(TS)
MAXIMUM 8 DIGITSCALL NUMBER OF LOCAL
(LS)
MAXIMUM 8 DIGITSLISTED DIRECTORY
NUMBER
(LDN)
MAXIMUM 8 DIGITS

CHAPTER 4 NDA-24298
Page 786
Issue 1
ASPD : Assignment of Speed Calling
ASPD: Assignment of Speed Calling
1. General
This command assigns the speed calling number corresponding to each Abbreviated Digit Code (ADC).
2. Precautions
1. The speed calling number assigned by this command (the data entered at the DC parameter) is transmitted
when an ADC is dialed following the Speed Calling - System access code.
2. The following command should be assigned to accomplish the Speed Calling - System service...
