NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 837
Issue 1
AREF_LR : Assignment of Reference Number Information Data – Logical Route Number
AREF_LR: Assignment of Reference Number Information Data – Logical
Route Number
1. General
This command is used to assign Reference Number for ISDN feature. Route number of the AREF command can
be assigned by using Logical Route.
2. Precautions
1. Prior to this command, logical route data must be allocated by using the ALRTN command.
2. Only when logging in to the NCN (Network Control...

CHAPTER 4 NDA-24298
Page 838
Issue 1
AREF_LR : Assignment of Reference Number Information Data – Logical Route Number

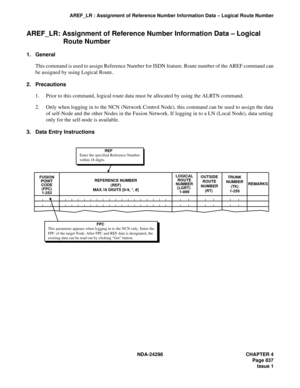

4. Data Sheet
FUSION
POINT
CODE
(FPC)
1-253REFERENCE NUMBER
(REF)
 MAX. 18  DIGITS [0-9, *, #]LOGICAL
ROUTE
NUMBER
(LGRT)
1-899OUTSIDE
ROUTE
NUMBER
(RT)TRUNK
NUMBER
(TK)
1-255REMARKS

NDA-24298 CHAPTER 4
Page 839
Issue 1
AVTC : Assignment of Virtual Tie Line Call Data
AVTC: Assignment of Virtual Tie Line Call Data
1. General
This command assigns Virtual Tie Line Numbers to be used in Virtual Tie Line Service.
2. Precautions
1. This data is to be assigned at the terminating office.
2. A Virtual Tie Line Number is a station number converted, as a number for Virtual Tie Line Service, from
one of the subscriber numbers assigned on the ISDN line.
3. Data Entry Instructions
Refer to data...

CHAPTER 4 NDA-24298
Page 840
Issue 1
AVTC : Assignment of Virtual Tie Line Call Data
4. Data Sheet
TENANT
NUMBER
(TN)STATION NUMBER
(STN) REMARKS

NDA-24298 CHAPTER 4
Page 841
Issue 1
AVTL : Assignment of Virtual Tie Line Data
AVTL: Assignment of Virtual Tie Line Data
1. General
This command assigns a schedule for Virtual Tie Line implementation period in Virtual Tie Line Service.
2. Precautions
1. At the time of data setting, assign incoming/outgoing call data synchronously.
2. The maximum input value for Route Number should be the value assigned by ASYD.
After entering the Route Number, check to see if the corresponding Route Data is assigned. If...

CHAPTER 4 NDA-24298
Page 842
Issue 1
AVTL : Assignment of Virtual Tie Line Data
6. When the Date Range is one day, only the starting week is displayed. The relationship between the Date
Range and the Week Range is as follows:
Example:
DATE:  11/08 - 11/22
WEEK:  MON-WED
In a case where 11/08 is Wednesday and 11/22 is Wednesday two weeks after, in the designated Date
Range, 8th is the first Monday. 13th through 15th are Monday through Wednesday of next week, and
20th through 22nd are Monday through...

NDA-24298 CHAPTER 4
Page 843
Issue 1
AVTL : Assignment of Virtual Tie Line Data

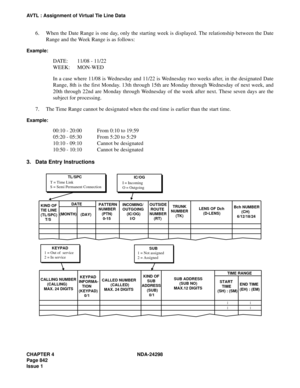

4. Data Sheet
KIND OF
TIE LINE
(TL/SPC)
T/SDAT E PATT E RN
 NUMBER
(PTN)
0-15INCOMING/
OUTGOING
(OG/IC)
O/IOUTSIDE
ROUTE
NUMBER
(RT)TRUNK
NUMBER
(TK)LENS OF Dch
(D-LENS)Bch NUMBER
(CH)
6/12/18/24 (MONTH) (DAY)

CHAPTER 4 NDA-24298
Page 844
Issue 1
AVTM : Assignment of Virtual Tie Line Manual
AVTM: Assignment of Virtual Tie Line Manual
1. General
This command immediately activates Virtual Tie Line.
2. Precautions
This command is used in the following conditions:
When a failure occurs in a Virtual Tie Line, causing a link release.
When Virtual Tie Line is needed immediately.
3. Data Entry Instructions
Enter a “Y” for Yes, or a “N” for No.
Y = Activate
N = Not activate

NDA-24298 CHAPTER 4
Page 845
Issue 1

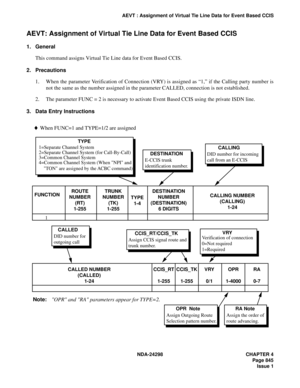

AEVT : Assignment of Virtual Tie Line Data for Event Based CCIS
AEVT: Assignment of Virtual Tie Line Data for Event Based CCIS
1. General
This command assigns Virtual Tie Line data for Event Based CCIS.
2. Precautions
1. When the parameter Verification of Connection (VRY) is assigned as “1,” if the Calling party number is
not the same as the number assigned in the parameter CALLED, connection is not established.
2. The parameter FUNC = 2 is necessary to activate Event...

CHAPTER 4 NDA-24298
Page 846
Issue 1

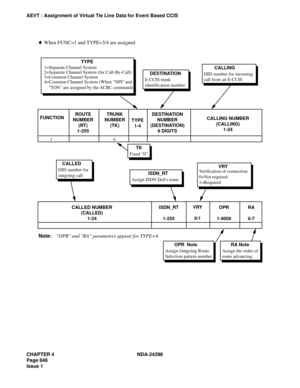

AEVT : Assignment of Virtual Tie Line Data for Event Based CCIS
TYPE
1=Separate Channel System
2=Separate Channel System (for Call-By-Call)
3=Common Channel System
4=Common Channel System (When NPI and
    TON are assigned by the ACBC command)
DESTINATION
E-CCIS trunk
identification number.
OPR  Note
Assign Outgoing Route
Selection pattern number.RA Note
Assign the order of
route advancing.
TK
Fixed “0”.
CALLED
CALLED NUMBER
(CALLED)
1-24ISDN_RT
1-255VRY
0/1OPR...
