Panasonic Digital Copier Dp 2500/3000 Internet Fax Operating Instructions

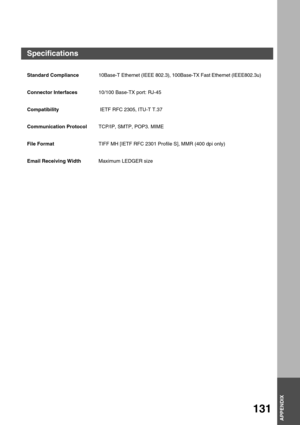

APPENDIX
131
Appendix
Specifications
Standard Compliance10Base-T Ethernet (IEEE 802.3), 100Base-TX Fast Ethernet (IEEE802.3u)
Connector Interfaces10/100 Base-TX port: RJ-45
Compatibility IETF RFC 2305, ITU-T T.37
Communication ProtocolTCP/IP, SMTP, POP3. MIME
File FormatTIFF MH [IETF RFC 2301 Profile S], MMR (400 dpi only)
Email Receiving WidthMaximum LEDGER size

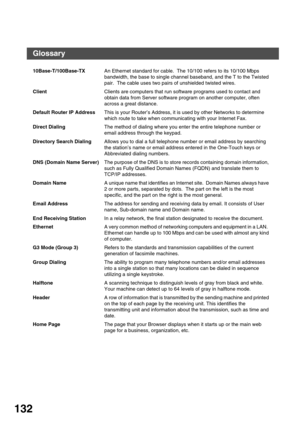

APPENDIX
132
Glossary
10Base-T/100Base-TXAn Ethernet standard for cable.  The 10/100 refers to its 10/100 Mbps
bandwidth, the base to single channel baseband, and the T to the Twisted
pair.  The cable uses two pairs of unshielded twisted wires.
ClientClients are computers that run software programs used to contact and
obtain data from Server software program on another computer, often
across a great distance.
Default Router IP AddressThis is your Router’s Address, it is used by other Networks to...

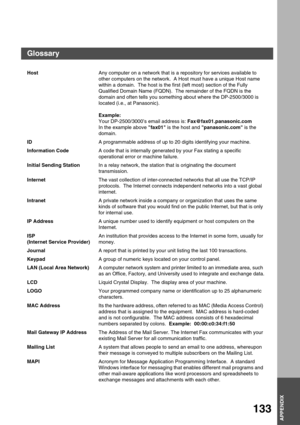

APPENDIX
APPENDIX
133
HostAny computer on a network that is a repository for services available to
other computers on the network.  A Host must have a unique Host name
within a domain.  The host is the first (left most) section of the Fully
Qualified Domain Name (FQDN).  The remainder of the FQDN is the
domain and often tells you something about where the DP-2500/3000 is
located (i.e., at Panasonic).
Example:
Your DP-2500/3000’s email address is: [email protected]
In the example above fax01 is...

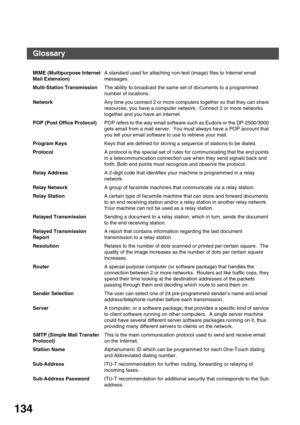

APPENDIX
134
MIME (Multipurpose Internet
Mail Extension)A standard used for attaching non-text (image) files to Internet email
messages.
Multi-Station TransmissionThe ability to broadcast the same set of documents to a programmed
number of locations.
NetworkAny time you connect 2 or more computers together so that they can share
resources, you have a computer network.  Connect 2 or more networks
together and you have an internet.
POP (Post Office Protocol)POP refers to the way email software such as...

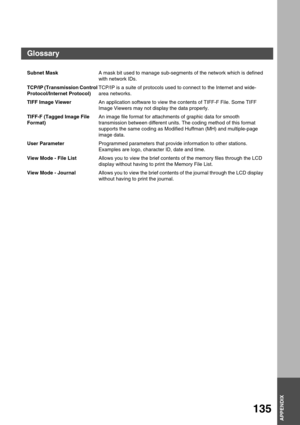

APPENDIX
APPENDIX
135
Subnet MaskA mask bit used to manage sub-segments of the network which is defined
with network IDs.
TCP/IP (Transmission Control
Protocol/Internet Protocol)TCP/IP is a suite of protocols used to connect to the Internet and wide-
area networks.
TIFF Image ViewerAn application software to view the contents of TIFF-F File. Some TIFF
Image Viewers may not display the data properly.
TIFF-F (Tagged Image File
Format)An image file format for attachments of graphic data for smooth...

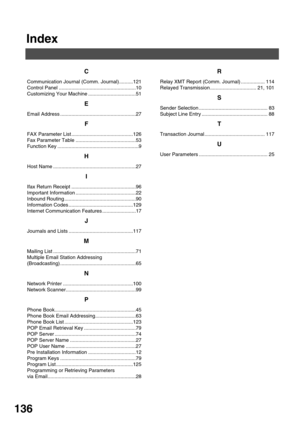

136
Index
C
Communication Journal (Comm. Journal)..........121
Control Panel .......................................................10
Customizing Your Machine ..................................51
E
Email Address ......................................................27
F
FAX Parameter List ............................................126
Fax Parameter Table ...........................................53
Function Key ..........................................................9
H
Host Name...

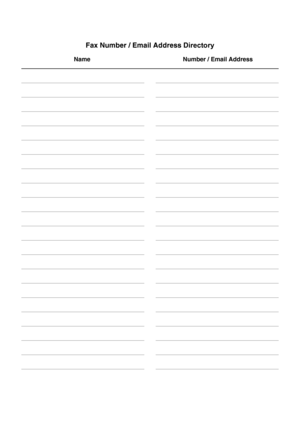

Fax Number / Email Address Directory
Name Number / Email Address

English
Operating Instructions (For Internet Fax)Digital Copier
Before operating this equipment, please read
these instructions completely and keep these
operating instructions for future reference.

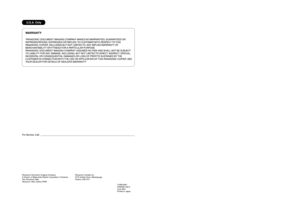

WARRANTY“PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS
PANASONIC COPIER, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
PANASONIC DOCUMENT IMAGING...
