Panasonic Digital Copier Dp 2500/3000 Internet Fax Operating Instructions

ADVANCED FEATURES
ADVANCED
FEATURES
91

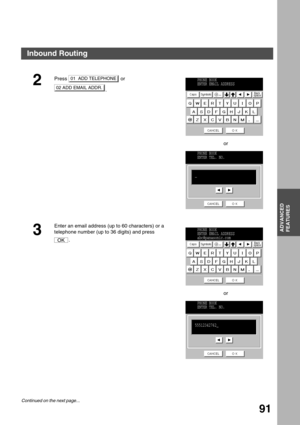

2Press  or
.
or
3
Enter an email address (up to 60 characters) or a
telephone number (up to 36 digits) and press
.
or
01 ADD TELEPHONE
02 ADD EMAIL ADDR.
PHONE BOOK
ENTER EMAIL ADDRESS
PHONE BOOK
ENTER TEL. NO.
OK
PHONE BOOK
ENTER EMAIL ADDRESS
[email protected]
PHONE BOOK
ENTER TEL. NO.
55512342762_
Inbound Routing
Continued on the next page...

ADVANCED FEATURES
92

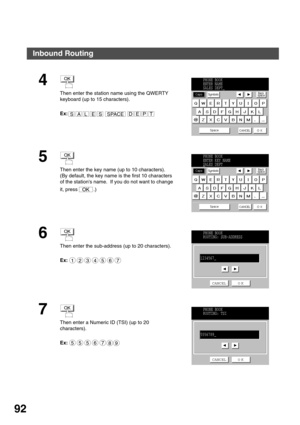

4
Then enter the station name using the QWERTY
keyboard (up to 15 characters).
Ex:
5
Then enter the key name (up to 10 characters).
(By default, the key name is the first 10 characters
of the stations name.  If you do not want to change
it, press  .)
6
Then enter the sub-address (up to 20 characters).
Ex:
7
Then enter a Numeric ID (TSI) (up to 20
characters).
Ex:
OK
SALESSPACEEPTD
PHONE BOOK
ENTER NAME
SALES DEPT_
OK
OK
PHONE BOOK
ENTER KEY NAME
SALES DEPT
_
OK
1234567
PHONE...

ADVANCED FEATURES
ADVANCED
FEATURES
93
 (see Note 1)

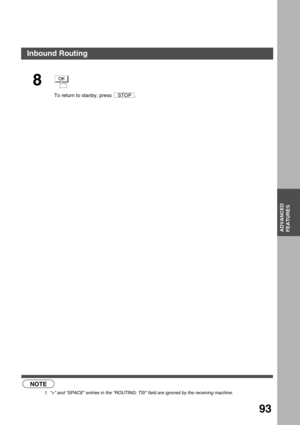

8
To return to stanby, press  .
NOTE
1. + and SPACE entries in the ROUTING: TSI field are ignored by the receiving machine.
OK
STOP
Inbound Routing

ADVANCED FEATURES
94

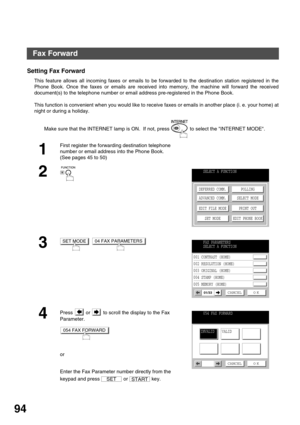

Fax Forward
Setting Fax Forward
This feature allows all incoming faxes or emails to be forwarded to the destination station registered in the
Phone Book. Once the faxes or emails are received into memory, the machine will forward the received
document(s) to the telephone number or email address pre-registered in the Phone Book.
This function is convenient when you would like to receive faxes or emails in another place (i. e. your home) at
night or during a holiday.
Make sure that the...

ADVANCED FEATURES
ADVANCED
FEATURES
95
 (see Note 1) (see Note 2) (see Note 3)

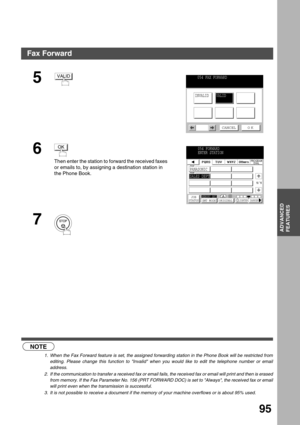

5
6
Then enter the station to forward the received faxes
or emails to, by assigning a destination station in
the Phone Book.
7
NOTE
1. When the Fax Forward feature is set, the assigned forwarding station in the Phone Book will be restricted from
editing. Please change this function to Invalid when you would like to edit the telephone number or email
address.
2. If the communication to transfer a received fax or email fails,...

ADVANCED FEATURES
96
Ifax Return Receipt
The DP-2500/3000 automatically sends an Ifax Return Receipt to the sender confirming email reception from
another Panasonic Internet Fax.
To disable this feature, follow the steps below.
yyy
Make sure that the INTERNET lamp is ON.  If not, press   to select the INTERNET MODE.
1
2

3Press   or   to scroll the display to the
desired Fax Parameter.
or
Enter the Fax Parameter number directly from the
keypad and press   or   key.
SELECT A FUNCTION
DEFERRED COMM....

ADVANCED FEATURES
ADVANCED
FEATURES
97
 (see Note 1)

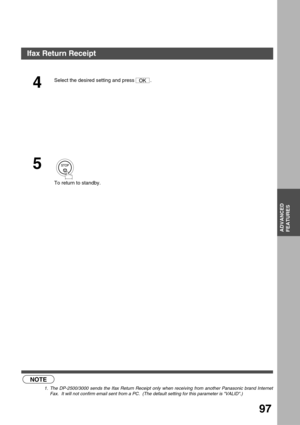

4
Select the desired setting and press  .
5

To return to standby.
NOTE
1. The DP-2500/3000 sends the Ifax Return Receipt only when receiving from another Panasonic brand Internet
Fax.  It will not confirm email sent from a PC.  (The default setting for this parameter is VALID.)
OK
Ifax Return Receipt

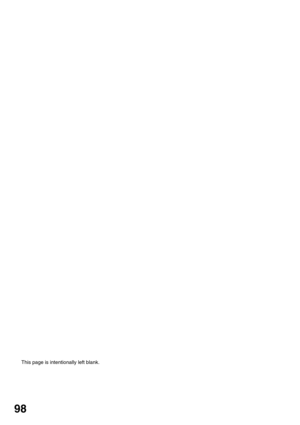

This page is intentionally left blank.
ADVANCED FEATURES
98

NETWORK
FEATURE
99
Network Features

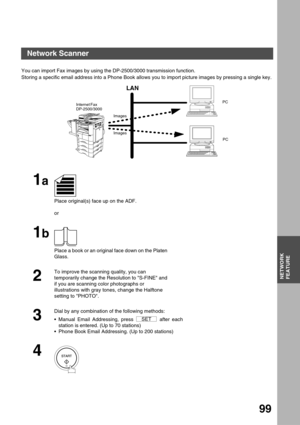

Network Scanner
You can import Fax images by using the DP-2500/3000 transmission function.
Storing a specific email address into a Phone Book allows you to import picture images by pressing a single key.

1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2
To improve the scanning quality, you can
temporarily change the Resolution to S-FINE and
if you are scanning color photographs or
illustrations with...

NETWORK FEATURE
100

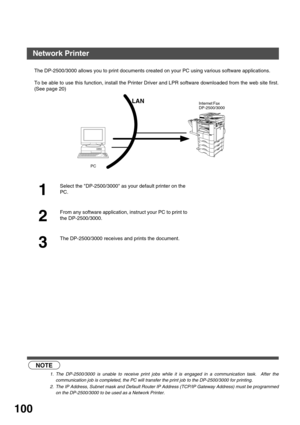

Network Printer
The DP-2500/3000 allows you to print documents created on your PC using various software applications.
To be able to use this function, install the Printer Driver and LPR software downloaded from the web site first.
(See page 20)
 (see Note 1)   (see Note 2)
1
Select the DP-2500/3000 as your default printer on the
PC.
2
From any software application, instruct your PC to print to
the DP-2500/3000.
3
The DP-2500/3000 receives and prints the document.
NOTE
1. The...
