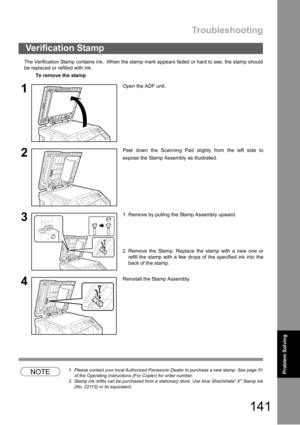

Troubleshooting
141
Problem Solving
The Verification Stamp contains ink.  When the stamp mark appears faded or hard to see, the stamp should
be replaced or refilled with ink.
NOTE1. Please contact your local Authorized Panasonic Dealer to purchase a new stamp. See page 51
of the Operating Instructions (For Copier) for order number.
2. Stamp ink refills can be purchased from a stationary store. Use blue Shachihata X Stamp ink
(No. 22113) or its equivalent.
Verification Stamp
To remove the stamp
1Open the...

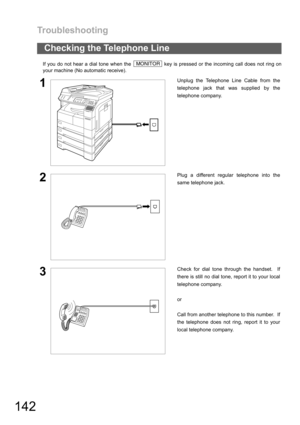

Troubleshooting
142
If you do not hear a dial tone when the   key is pressed or the incoming call does not ring on
your machine (No automatic receive).
Checking the Telephone Line
1Unplug the Telephone Line Cable from the
telephone jack that was supplied by the
telephone company.
2Plug a different regular telephone into the
same telephone jack.
3Check for dial tone through the handset.  If
there is still no dial tone, report it to your local
telephone company.
or
Call from another telephone to this...

143Appendix
Appendix

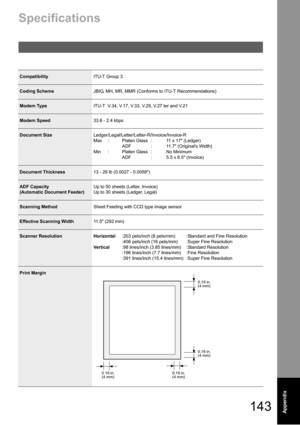

Specifications
CompatibilityITU-T Group 3
Coding SchemeJBIG, MH, MR, MMR (Conforms to ITU-T Recommendations)
Modem TypeITU-T  V.34, V.17, V.33, V.29, V.27 ter and V.21
Modem Speed33.6 - 2.4 kbps
Document SizeLedger/Legal/Letter/Letter-R/Invoice/Invoice-R
Max :  Platen Glass :   11 x 17 (Ledger)
ADF :   11.7 (Originals Width)
Min : Platen Glass :  No Minimum
ADF :   5.5 x 8.5 (Invoice)
Document Thickness13 - 29 lb (0.0027 - 0.0059)
ADF Capacity
(Automatic Document Feeder)Up to 50...

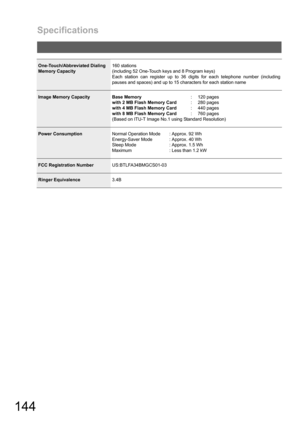

Specifications
144
One-Touch/Abbreviated Dialing
Memory Capacity160 stations
(including 52 One-Touch keys and 8 Program keys)
Each station can register up to 36 digits for each telephone number (including
pauses and spaces) and up to 15 characters for each station name
Image Memory Capacity Base Memory: 120 pages
with 2 MB Flash Memory Card: 280 pages
with 4 MB Flash Memory Card: 440 pages
with 8 MB Flash Memory Card: 760 pages
(Based on ITU-T Image No.1 using Standard Resolution)
Power...

145Appendix

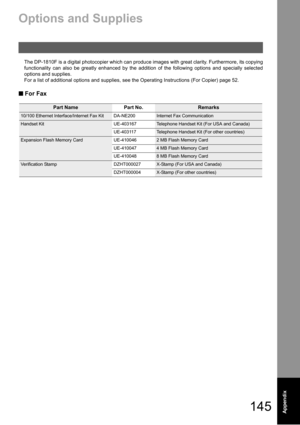

Options and Supplies
The DP-1810F is a digital photocopier which can produce images with great clarity. Furthermore, its copying
functionality can also be greatly enhanced by the addition of the following options and specially selected
options and supplies.
For a list of additional options and supplies, see the Operating Instructions (For Copier) page 52.





 For Fax
Part Name Part No.Remarks
10/100 Ethernet Interface/Internet Fax Kit DA-NE200Internet Fax Communication
Handset Kit...

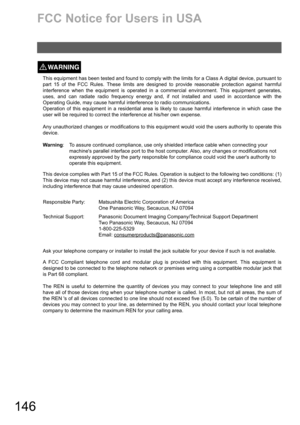

146
FCC Notice for Users in USA
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
Operating Guide, may cause harmful interference to radio...

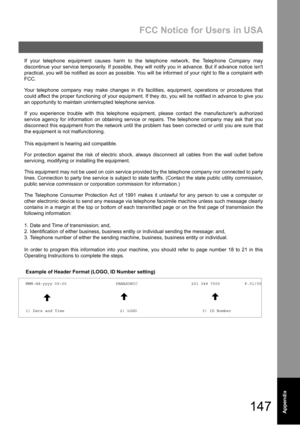

FCC Notice for Users in USA
147Appendix
If your telephone equipment causes harm to the telephone network, the Telephone Company may
discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice isnt
practical, you will be notified as soon as possible. You will be informed of your right to file a complaint with
FCC.
Your telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the proper functioning of your...

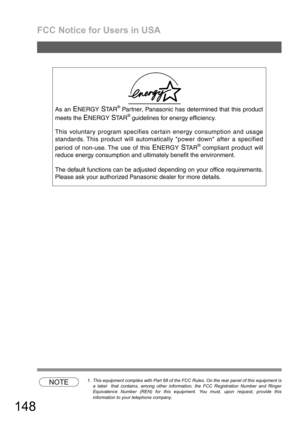

FCC Notice for Users in USA
148
NOTE1. This equipment complies with Part 68 of the FCC Rules. On the rear panel of this equipment is
a label  that contains, among other information, the FCC Registration Number and Ringer
Equivalence Number (REN) for this equipment. You must, upon request, provide this
information to your telephone company.
As an ENERGY STA R® Partner, Panasonic has determined that this product
meets the
ENERGY STA R® guidelines for energy efficiency.
This voluntary program specifies...

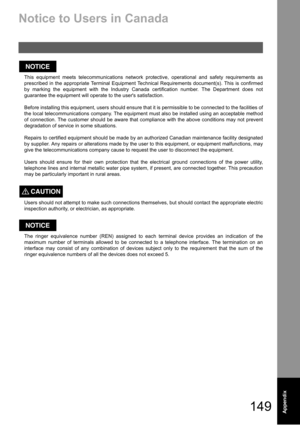

149Appendix
Notice to Users in Canada
This equipment meets telecommunications network protective, operational and safety requirements as
prescribed in the appropriate Terminal Equipment Technical Requirements document(s). This is confirmed
by marking the equipment with the Industry Canada certification number. The Department does not
guarantee the equipment will operate to the users satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the...

Notice to Users in Canada

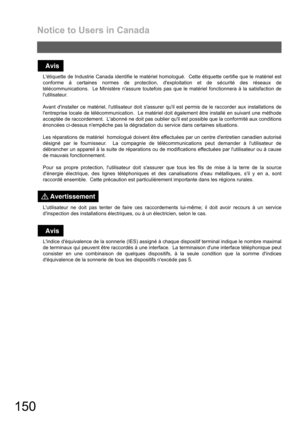

150
Létiquette de Industrie Canada identifie le matériel homologué.  Cette étiquette certifie que le matériel est
conforme à certaines normes de protection, dexploitation et de sécurité des réseaux de
télécommunications.  Le Ministère nassure toutefois pas que le matériel fonctionnera à la satisfaction de
lutilisateur.
Avant dinstaller ce matériel, lutilisateur doit sassurer quil est permis de le raccorder aux installations de
lentreprise locale de télécommunication.  Le...
