Sub-Addressing
121

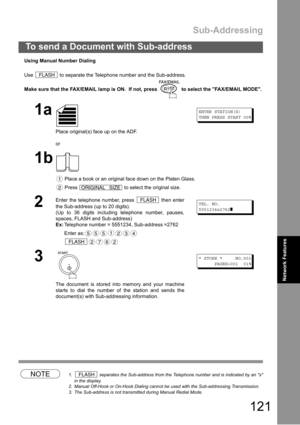

To send a Document with Sub-address
Network Features
Using Manual Number Dialing
Use   to separate the Telephone number and the Sub-address.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
NOTE1.  separates the Sub-address from the Telephone number and is indicated by an s
in the display.
2. Manual Off-Hook or On-Hook Dialing cannot be used with the Sub-addressing Transmission.
3. The Sub-address is not transmitted during Manual Redial Mode.
1a...

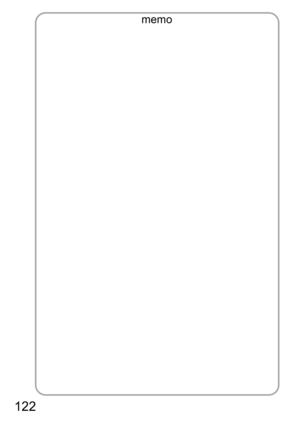

memo
122

123
Printout Journals
and Lists
Printout Journals and Lists

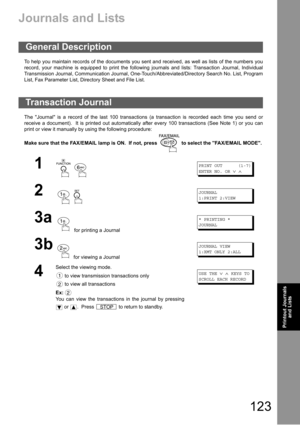

Journals and Lists
To help you maintain records of the documents you sent and received, as well as lists of the numbers you
record, your machine is equipped to print the following journals and lists: Transaction Journal, Individual
Transmission Journal, Communication Journal, One-Touch/Abbreviated/Directory Search No. List, Program
List, Fax Parameter List, Directory Sheet and File List.
The Journal is a record of the last 100 transactions (a...

Journals and Lists
124
Transaction Journal

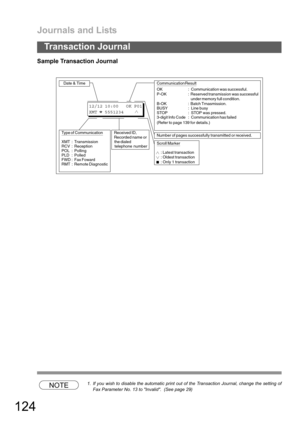

Sample Transaction Journal
NOTE1. If you wish to disable the automatic print out of the Transaction Journal, change the setting of
Fax Parameter No. 13 to Invalid.  (See page 29)
Type of Communication
XMT : Transmission
RCV : Reception
POL : Polling
PLD : Polled
FWD : Fax Foward
RMT  :  Remote Diagnostic
Date & Time
Received ID,
Recorded name or
    the dialed
    telephone  numberNumber of pages successfully transmitted or received.
12/12 10:00   OK P01
XMT
...

Journals and Lists
125
Printout Journals
and Lists

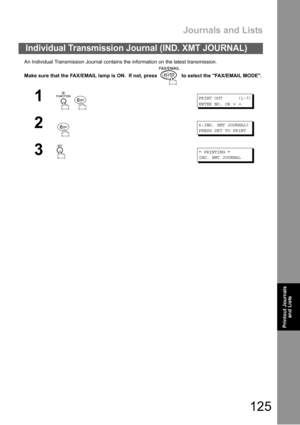

An Individual Transmission Journal contains the information on the latest transmission.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Individual Transmission Journal (IND. XMT JOURNAL)
1

PRINT OUT (1-7)
ENTER NO. OR
∨∧
26:IND. XMT JOURNAL?
PRESS SET TO PRINT
3* PRINTING *
IND. XMT JOURNAL

Journals and Lists
126
Individual Transmission Journal (IND. XMT JOURNAL)

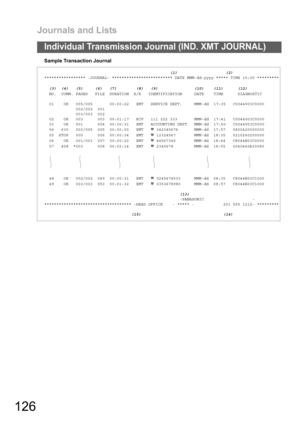

Sample Transaction Journal
(1) (2)
***************** -JOURNAL- ************************* DATE MMM-dd-yyyy ***** TIME 15:00 *********
(3) (4) (5) (6) (7) (8) (9) (10) (11) (12)
NO. COMM. PAGES FILE DURATION X/R IDENTIFICATION DATE TIME DIAGNOSTIC
01 OK 005/005 00:00:22 XMT SERVICE DEPT. MMM-dd 17:35 C0044903C0000
002/002 001
003/003 002
02 OK 003 003 00:01:17 RCV 111 222 333 MMM-dd 17:41 C0044903C0000
03 OK 001 004 00:00:31 XMT...

Journals and Lists
127
Individual Transmission Journal (IND. XMT JOURNAL)
Printout Journals
and Lists

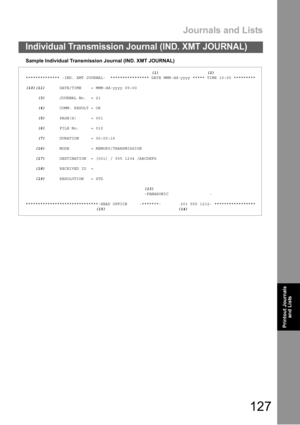

Sample Individual Transmission Journal (IND. XMT JOURNAL)
(1) (2)
************** -IND. XMT JOURNAL- **************** DATE MMM-dd-yyyy ***** TIME 15:00 *********
(10)(11)DATE/TIME = MMM-dd-yyyy 09:00
(3)JOURNAL No. = 21
(4)COMM. RESULT = OK
(5)PAGE(S) = 001
(6)FILE No. = 010
(7)DURATION = 00:00:16
(16)MODE = MEMORY/TRANSMISSION
(17)DESTINATION = [001] / 555 1234 /ABCDEFG
(18)RECEIVED ID =
(19)RESOLUTION =...

Journals and Lists
128
Individual Transmission Journal (IND. XMT JOURNAL)

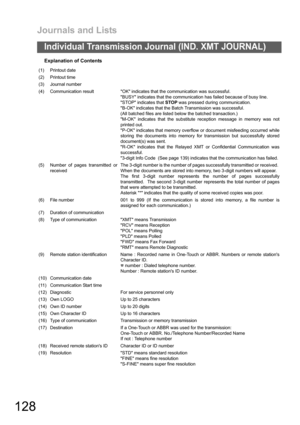

Explanation of Contents
(1) Printout date
(2) Printout time
(3) Journal number
(4) Communication result OK indicates that the communication was successful.
BUSY indicates that the communication has failed because of busy line.
STOP indicates that STOP was pressed during communication.
B-OK indicates that the Batch Transmission was successful.
(All batched files are listed below the batched transaction.)
M-OK indicates that the...

Journals and Lists
129
Printout Journals
and Lists
The Communication Journal (COMM. JOURNAL) lets you verify whether the transmission or polling was
successful.  You may select the printout condition (Off/Always/Inc. only) in Function 8-1 or Fax Parameter
No. 12.

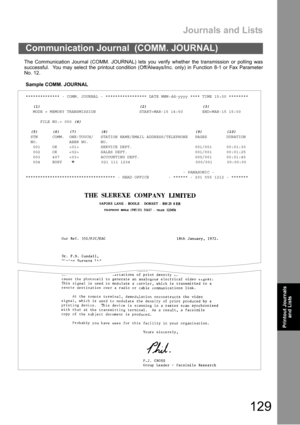

Sample COMM. JOURNAL
Communication Journal  (COMM. JOURNAL)
************** - COMM. JOURNAL - ***************** DATE MMM-dd-yyyy **** TIME 15:00 ********
(1) (2) (3)
MODE = MEMORY TRANSMISSION START=MAR-15 14:50 END=MAR-15 15:00
FILE NO.= 050(4)...

Journals and Lists
130
Communication Journal (COMM. JOURNAL)
Explanation of Contents
(1) Indication of communication mode
(2) Start time of communication
(3) End time of communication
(4) File number 001 to 999 (When the communication is stored into memory, a file number
is assigned for each communication.)
(5) Station number Sequential number of the Stations.
(6) Communication result OK indicates that the communication was successful.
BUSY indicates that the communication has failed because of busy...
