151Appendix

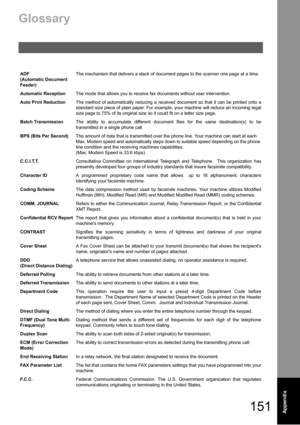

Glossary
ADF
(Automatic Document
Feeder)The mechanism that delivers a stack of document pages to the scanner one page at a time.
Automatic ReceptionThe mode that allows you to receive fax documents without user intervention.
Auto Print ReductionThe method of automatically reducing a received document so that it can be printed onto a
standard size piece of plain paper. For example, your machine will reduce an incoming legal
size page to 75% of its original size so it could fit on a letter...

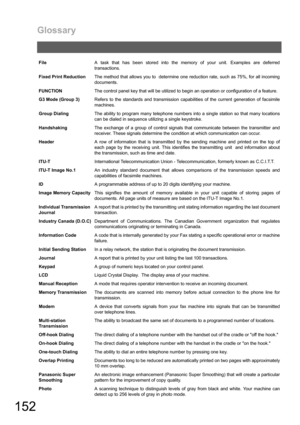

Glossary
152
FileA task that has been stored into the memory of your unit. Examples are deferred
transactions.
Fixed Print ReductionThe method that allows you to  determine one reduction rate, such as 75%, for all incoming
documents.
FUNCTIONThe control panel key that will be utilized to begin an operation or configuration of a feature.
G3 Mode (Group 3)Refers to the standards and transmission capabilities of the current generation of facsimile
machines.
Group DialingThe ability to program many telephone...

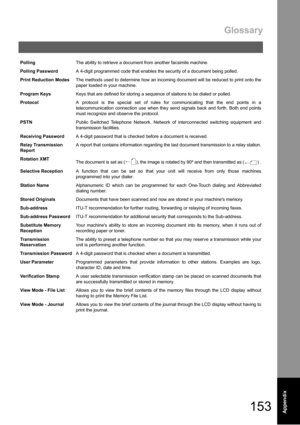

Glossary
153Appendix
PollingThe ability to retrieve a document from another facsimile machine.
Polling PasswordA 4-digit programmed code that enables the security of a document being polled.
Print Reduction ModesThe methods used to determine how an incoming document will be reduced to print onto the
paper loaded in your machine.
Program KeysKeys that are defined for storing a sequence of stations to be dialed or polled.
ProtocolA protocol is the special set of rules for communicating that the end points...

154

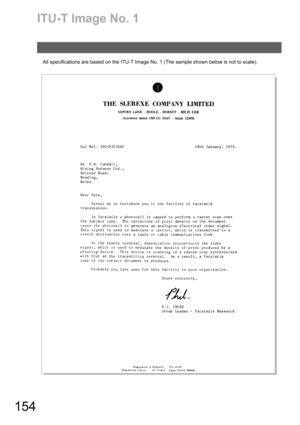

ITU-T Image No. 1
All specifications are based on the ITU-T Image No. 1 (The sample shown below is not to scale).

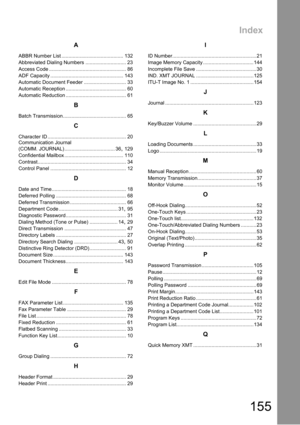

Index
155
A
ABBR Number List ............................................ 132
Abbreviated Dialing Numbers ............................. 23
Access Code ....................................................... 86
ADF Capacity .................................................... 143
Automatic Document Feeder .............................. 33
Automatic Reception ........................................... 60
Automatic Reduction ........................................... 61
B
Batch...

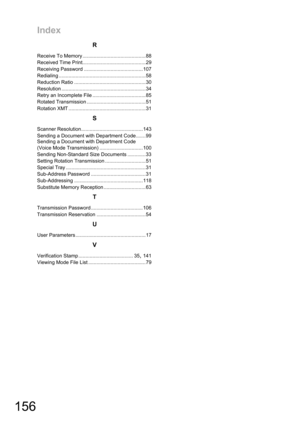

Index
156
R
Receive To Memory .............................................88
Received Time Print.............................................29
Receiving Password ..........................................107
Redialing ..............................................................58
Reduction Ratio ...................................................30
Resolution ............................................................34
Retry an Incomplete File ......................................85
Rotated...

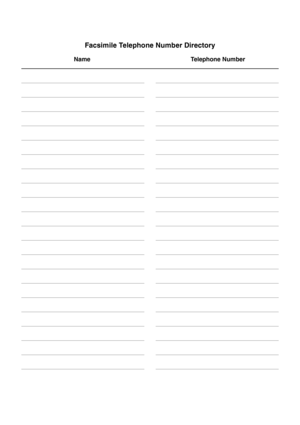

Facsimile Telephone Number Directory
Name Telephone Number

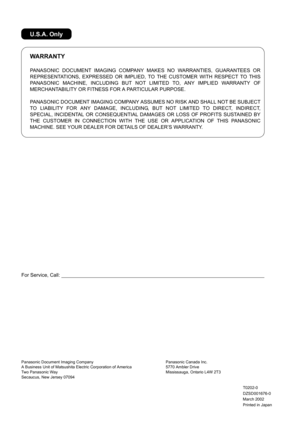

For Service, Call:
