Journals and Lists
131
Printout Journals
and Lists
To print a One-Touch/Abbreviated Number and Directory Search List of the telephone numbers you have
stored.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
One-Touch/Abbreviated and Directory Search List
1

PRINT OUT (1-7)
ENTER NO. OR
∨∧
22:ONE-TCH/ABBR LIST?
PRESS SET TO PRINT
31:ONE-TOUCH/ABBR NO.
2:DIR. SEARCH
4
 for One-Touch/ABBR. Number List
 for Directory Search List
* PRINTING *
ONE-TOUCH/ABBR LIST
*...

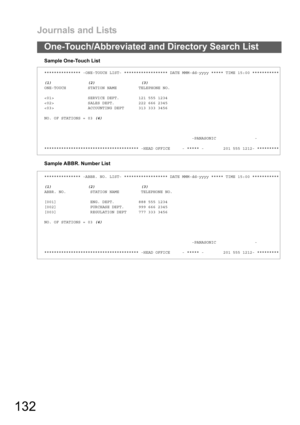

Journals and Lists
132
One-Touch/Abbreviated and Directory Search List
Sample One-Touch List
Sample ABBR. Number List
*************** -ONE-TOUCH LIST- ****************** DATE MMM-dd-yyyy ***** TIME 15:00 ***********
(1) (2) (3)
ONE-TOUCH STATION NAME TELEPHONE NO.
 SERVICE DEPT. 121 555 1234
 SALES DEPT. 222 666 2345
 ACCOUNTING DEPT 313 333 3456
NO. OF STATIONS = 03(4)
-PANASONIC -
*************************************** -HEAD OFFICE - ***** - 201 555 1212- *********
*************** -ABBR. NO. LIST-...

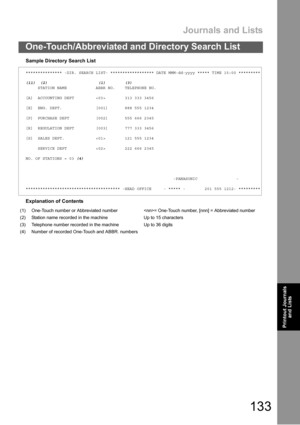

Journals and Lists
133
One-Touch/Abbreviated and Directory Search List
Printout Journals
and Lists
Sample Directory Search List
Explanation of Contents
*************** -DIR. SEARCH LIST- ****************** DATE MMM-dd-yyyy ***** TIME 15:00 *********
(11) (2) (1) (3)
STATION NAME ABBR NO. TELEPHONE NO.
[A] ACCOUNTING DEPT  313 333 3456
[E] ENG. DEPT. [001] 888 555 1234
[P] PURCHASE DEPT [002] 555 666 2345
[R] REGULATION DEPT [003] 777 333 3456
[S] SALES DEPT.  121 555 1234
SERVICE DEPT  222 666 2345
NO....

Journals and Lists
134

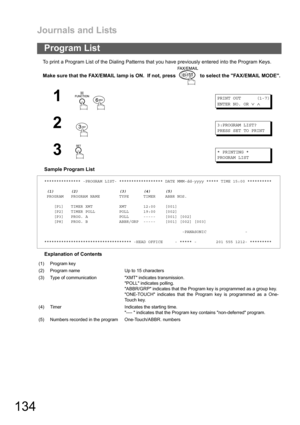

To print a Program List of the Dialing Patterns that you have previously entered into the Program Keys.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Sample Program List
Explanation of Contents
Program List
1

PRINT OUT (1-7)
ENTER NO. OR
∨∧
23:PROGRAM LIST?
PRESS SET TO PRINT
3* PRINTING *
PROGRAM LIST
*************** -PROGRAM LIST- ****************** DATE MMM-dd-yyyy ***** TIME 15:00 **********
(1) (2) (3) (4) (5)
PROGRAM PROGRAM NAME...

Journals and Lists
135
Printout Journals
and Lists

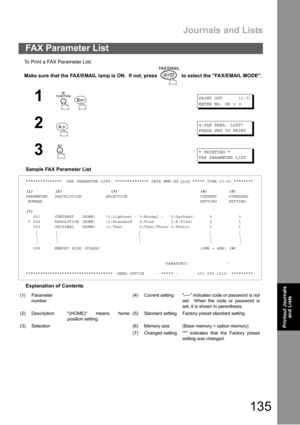

To Print a FAX Parameter List:
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL MODE.
Sample FAX Parameter List
Explanation of Contents
FAX Parameter List
1

PRINT OUT (1-7)
ENTER NO. OR
∨∧
24:FAX PARA. LIST?
PRESS SET TO PRINT
3* PRINTING *
FAX PARAMETER LIST
*************** -FAX PARAMETER LIST- ************** DATE MMM-dd-yyyy ***** TIME 15:00 ********
(1) (2) (3) (4) (5)
PARAMETER DESCRIPTION SELECTION CURRENT...

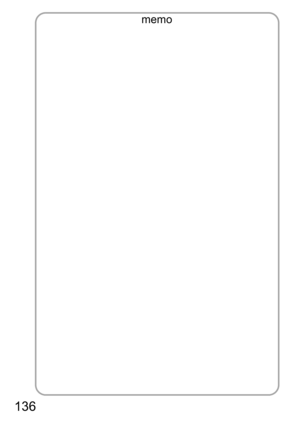

memo
136

137

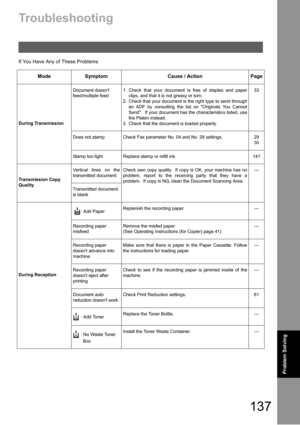

Problem Solving
Problem Solving
Troubleshooting
If You Have Any of These Problems
Mode Symptom Cause / Action Page
During TransmissionDocument doesnt
feed/multiple feed1. Check that your document is free of staples and paper
clips, and that it is not greasy or torn.
2. Check that your document is the right type to send through
an ADF by consulting the list on Originals You Cannot
Send.  If your document has the characteristics listed, use
the Platen instead.
3. Check that the document is loaded...

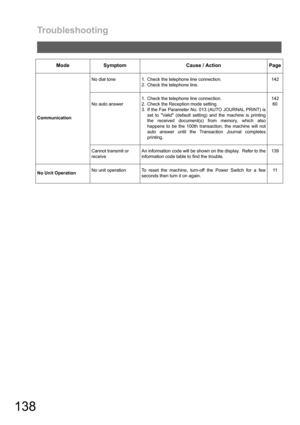

Troubleshooting
138
CommunicationNo dial tone 1. Check the telephone line connection.
2. Check the telephone line.142
No auto answer1. Check the telephone line connection.
2. Check the Reception mode setting.
3. If the Fax Parameter No. 013 (AUTO JOURNAL PRINT) is
set to Valid (default setting) and the machine is printing
the received document(s) from memory, which also
happens to be the 100th transaction, the machine will not
auto answer until the Transaction Journal completes
printing.142
60
Cannot...

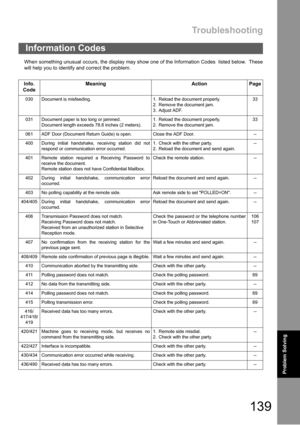

Troubleshooting
139
Problem Solving
When something unusual occurs, the display may show one of the Information Codes  listed below.  These
will help you to identify and correct the problem.
Information Codes
Info.
CodeMeaning Action Page
030 Document is misfeeding. 1. Reload the document properly.
2. Remove the document jam.
3. Adjust ADF.33
031 Document paper is too long or jammed.
Document length exceeds 78.8 inches (2 meters).1. Reload the document properly.
2. Remove the document jam.33
061 ADF...

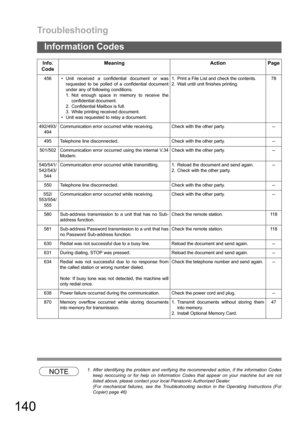

Troubleshooting
140
Information Codes
NOTE1. After identifying the problem and verifying the recommended action, if the information Codes
keep reoccuring or for help on Information Codes that appear on your machine but are not
listed above, please contact your local Panasonic Authorized Dealer.
(For mechanical failures, see the Troubleshooting section in the Operating Instructions (For
Copier) page 46)  456   Unit received a confidential document or was
requested to be polled of a confidential document...
