Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

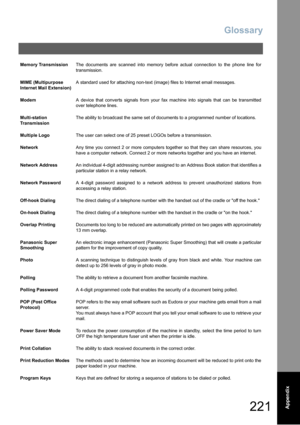

Glossary
221  Appendix
Memory TransmissionThe documents are scanned into memory before actual connection to the phone line for
transmission.
MIME (Multipurpose
Internet Mail Extension)A standard used for attaching non-text (image) files to Internet email messages.
ModemA device that converts signals from your fax machine into signals that can be transmitted
over telephone lines.
Multi-station
TransmissionThe ability to broadcast the same set of documents to a programmed number of locations.
Multiple...

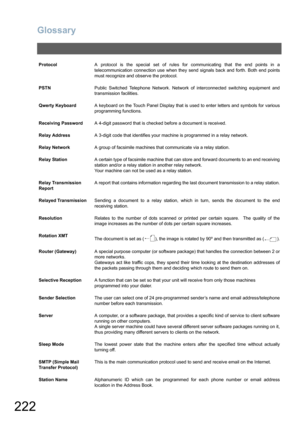

Glossary
222
ProtocolA protocol is the special set of rules for communicating that the end points in a
telecommunication connection use when they send signals back and forth. Both end points
must recognize and observe the protocol.
PSTNPublic Switched Telephone Network. Network of interconnected switching equipment and
transmission facilities.
Qwerty KeyboardA keyboard on the Touch Panel Display that is used to enter letters and symbols for various
programming functions.
Receiving PasswordA 4-digit...

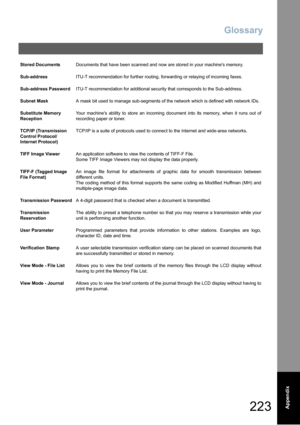

Glossary
223  Appendix
Stored DocumentsDocuments that have been scanned and now are stored in your machines memory.
Sub-addressITU-T recommendation for further routing, forwarding or relaying of incoming faxes.
Sub-address PasswordITU-T recommendation for additional security that corresponds to the Sub-address.
Subnet MaskA mask bit used to manage sub-segments of the network which is defined with network IDs.
Substitute Memory
ReceptionYour machines ability to store an incoming document into its memory,...

224

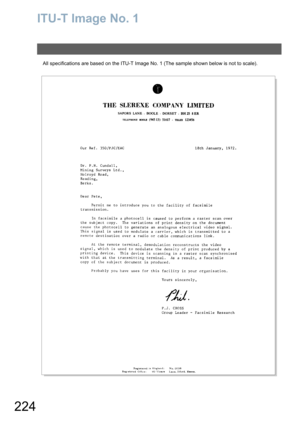

ITU-T Image No. 1
All specifications are based on the ITU-T Image No. 1 (The sample shown below is not to scale).

Index
225
A
Activating the Department Code Feature ............ 93
Adding Telephone Numbers ............................. 178
Address Book .................................................... 178
Address Book Email Addressing ....................... 126
Address Book List ............................................. 200
ADF Capacity .................................................... 211
APOP ................................................................ 192
Automatic Document Feeder...

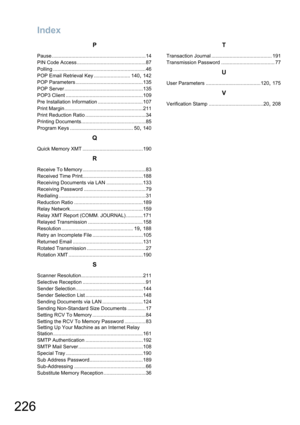

Index
226
P
Pause ...................................................................14
PIN Code Access .................................................87
Polling ..................................................................46
POP Email Retrieval Key .......................... 140
, 142
POP Parameters ................................................135
POP Server ........................................................135
POP3 Client .......................................................109
Pre...

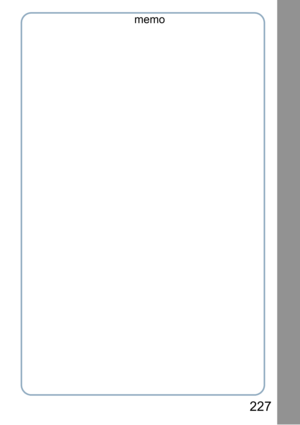

227
memo

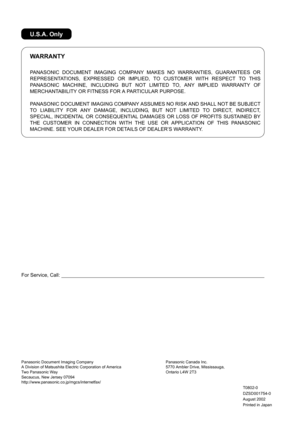

Panasonic Document Imaging Company
A Division of Matsushita Electric Corporation of America
Two Panasonic Way
Secaucus, New Jersey 07094
http://www.panasonic.co.jp/mgcs/internetfax/
Printed in Japan Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
August 2002 DZSD001754-0 T0802-0
For Service, Call:
PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS
PANASONIC MACHINE, INCLUDING BUT NOT LIMITED...
