Panasonic Digital Imaging Systems DP-3510/4510/6010 Facsimile And Internet Fax Operating Instructions

Journals and Lists
201
Printout Journals
and Lists

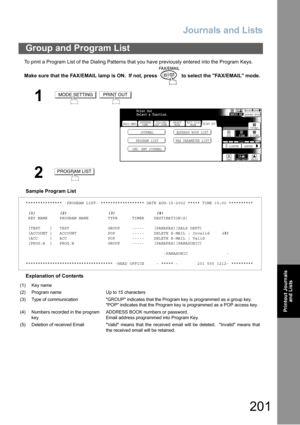

To print a Program List of the Dialing Patterns that you have previously entered into the Program Keys.
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Sample Program List
Explanation of Contents
Group and Program List
1
2
*************** -PROGRAM LIST- ****************** DATE AUG-15-2002 ***** TIME 15:00 **********
(1) (2) (3) (4)
KEY NAME PROGRAM NAME TYPE TIMER DESTINATION(S)
[TEST ] TEST GROUP -----...

Journals and Lists
202
To Print a Fax Parameter List:
Make sure that the FAX/EMAIL lamp is ON.  If not, press   to select the FAX/EMAIL mode.
Sample Fax Parameter List
Explanation of Contents
Fax Parameter List
1
2
************* -FAX PARAMETER LIST- ************** DATE AUG-15-2002 ***** TIME 15:00 ***** p.01
(1) (2) (3) (4) (5)
No. DESCRIPTION SELECTION CURRENT STANDARD
SETTING SETTING
000 Print Fax Parameter List
(6)001 Contrast(HOME) (1234567) 4 4
* 002 Resolution(HOME) (STD Fine S-Fine) STD Fine
174...

203
Problem Solving
Problem Solving
Troubleshooting

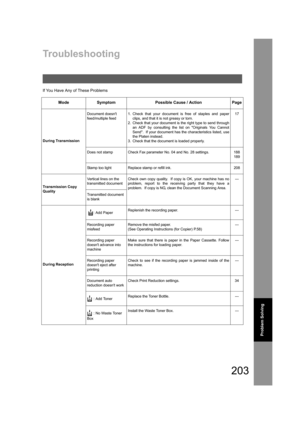

If You Have Any of These Problems
Mode Symptom Possible Cause / Action Page
During TransmissionDocument doesnt
feed/multiple feed1. Check that your document is free of staples and paper
clips, and that it is not greasy or torn.
2. Check that your document is the right type to send through
an ADF by consulting the list on Originals You Cannot
Send.  If your document has the characteristics listed, use
the Platen instead.
3. Check that the document is...

Troubleshooting
204

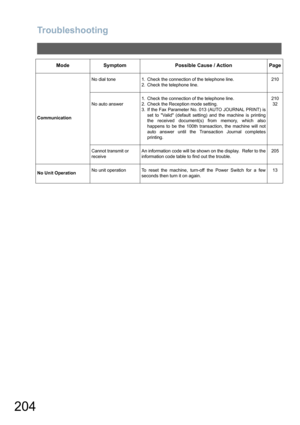

CommunicationNo dial tone 1. Check the connection of the telephone line.
2. Check the telephone line.210
No auto answer1. Check the connection of the telephone line.
2. Check the Reception mode setting.
3. If the Fax Parameter No. 013 (AUTO JOURNAL PRINT) is
set to Valid (default setting) and the machine is printing
the received document(s) from memory, which also
happens to be the 100th transaction, the machine will not
auto answer until the Transaction Journal completes...

Troubleshooting
205
Problem Solving

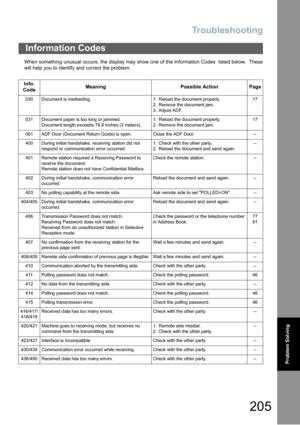

When something unusual occurs, the display may show one of the Information Codes  listed below.  These
will help you to identify and correct the problem.
Information Codes
Info.
CodeMeaning Possible Action Page
030 Document is misfeeding. 1. Reload the document properly.
2. Remove the document jam.
3. Adjust ADF.17
031 Document paper is too long or jammed.
Document length exceeds 78.8 inches (2 meters).1. Reload the document properly.
2. Remove the document jam.17...

Troubleshooting
206
Information Codes
456  Unit received a confidential document or was
requested to be polled of a confidential document
under any of following conditions.
1. Not enough space in memory to receive the
confidential document.
2. Confidential Mailbox is full.
3. While printing received document.
 Unit was requested to relay a document.1. Print a File List and check the contents.
2. Wait until unit finishes printing.98
492/493/
494Communication error occurred while receiving. Check...

Troubleshooting
207
Information Codes
Problem Solving
NOTE1. After identifying the problem and verifying the recommended action, if the information Codes
keep reoccuring or for help on Information Codes that appear on your machine but are not
listed above, please contact your local Panasonic Authorized Dealer.
(For mechanical failures, see the Troubleshooting section in the Operating Instructions (For
Copier) page 113)  718 Page Memory Overflow occurred while receiving
printing data.  The paper size...

Troubleshooting
208

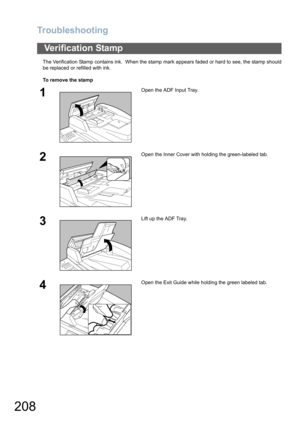

The Verification Stamp contains ink.  When the stamp mark appears faded or hard to see, the stamp should
be replaced or refilled with ink.
To remove the stamp
Verification Stamp
1Open the ADF Input Tray.
2Open the Inner Cover with holding the green-labeled tab.
3Lift up the ADF Tray.
4Open the Exit Guide while holding the green labeled tab.
P9250577

Troubleshooting
209
Verification Stamp
Problem Solving
NOTE1. Please contact your local Authorized Panasonic Dealer to purchase a new stamp.
2. Stamp ink refills can be purchased from a stationary store. Use blue Shachihata X Stamp ink
(No. 22113) or its equivalent.

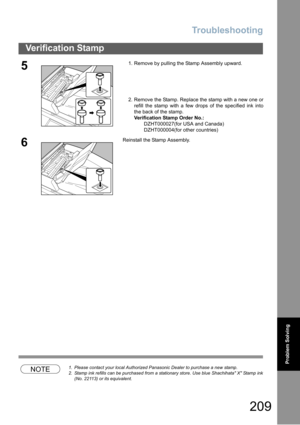

51. Remove by pulling the Stamp Assembly upward.
2. Remove the Stamp. Replace the stamp with a new one or
refill the stamp with a few drops of the specified ink into
the back of the stamp.
Verification Stamp Order No.:
       DZHT000027(for...

Troubleshooting
210

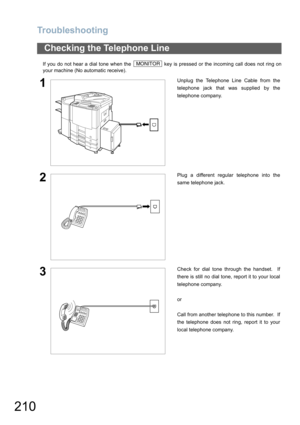

If you do not hear a dial tone when the   key is pressed or the incoming call does not ring on
your machine (No automatic receive).
Checking the Telephone Line
1Unplug the Telephone Line Cable from the
telephone jack that was supplied by the
telephone company.
2Plug a different regular telephone into the
same telephone jack.
3Check for dial tone through the handset.  If
there is still no dial tone, report it to your local
telephone company.
or
Call from another telephone to this...
