211  Appendix
Appendix

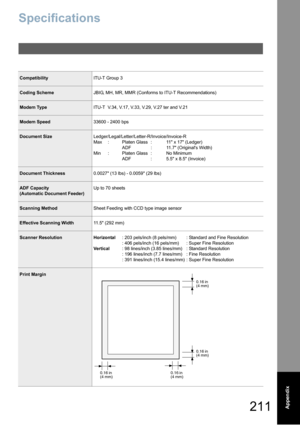

Specifications
CompatibilityITU-T Group 3
Coding SchemeJBIG, MH, MR, MMR (Conforms to ITU-T Recommendations)
Modem TypeITU-T  V.34, V.17, V.33, V.29, V.27 ter and V.21
Modem Speed33600 - 2400 bps
Document SizeLedger/Legal/Letter/Letter-R/Invoice/Invoice-R
Max :  Platen Glass :   11 x 17 (Ledger)
ADF :   11.7 (Originals Width)
Min : Platen Glass :  No Minimum
ADF :   5.5 x 8.5 (Invoice)
Document Thickness0.0027 (13 lbs) - 0.0059 (29 lbs)
ADF Capacity
(Automatic Document Feeder)Up...

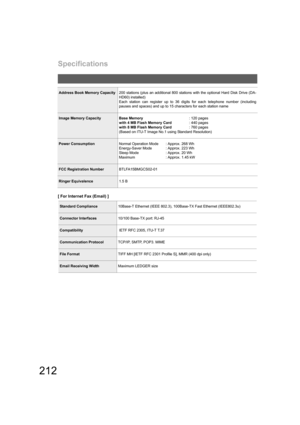

Specifications
212
[ For Internet Fax (Email) ]
Address Book Memory Capacity200 stations (plus an additional 800 stations with the optional Hard Disk Drive (DA-
HD60) installed)
Each station can register up to 36 digits for each telephone number (including
pauses and spaces) and up to 15 characters for each station name
Image Memory Capacity Base Memory: 120 pages
with 4 MB Flash Memory Card: 440 pages
with 8 MB Flash Memory Card: 760 pages
(Based on ITU-T Image No.1 using Standard Resolution)
Power...

213  Appendix

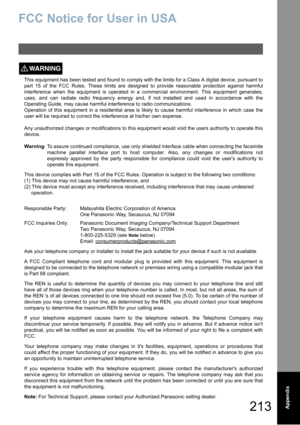

FCC Notice for User in USA
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
Operating Guide, may cause harmful interference to radio...

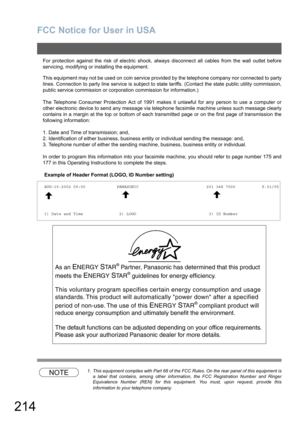

FCC Notice for User in USA
214
For protection against the risk of electric shock, always disconnect all cables from the wall outlet before
servicing, modifying or installing the equipment.
This equipment may not be used on coin service provided by the telephone company nor connected to party
lines. Connection to party line service is subject to state tariffs. (Contact the state public utility commission,
public service commission or corporation commission for information.)
The Telephone Consumer...

215  Appendix

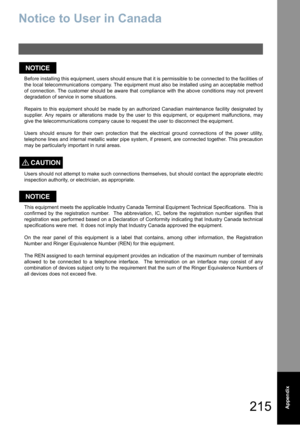

Notice to User in Canada
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of
the local telecommunications company. The equipment must also be installed using an acceptable method
of connection. The customer should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.
Repairs to this equipment should be made by an authorized Canadian maintenance facility designated by...

Notice to User in Canada
216
Avant dinstaller ce matériel, lutilisateur doit sassurer quil est permis de le raccorder aux installations de
lentreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode
acceptée de raccordement.  Labonné ne doit pas oublier quil est possible que la conformité aux conditions
énoncées ci-dessus nempêche pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être effectuées par un...

217  Appendix

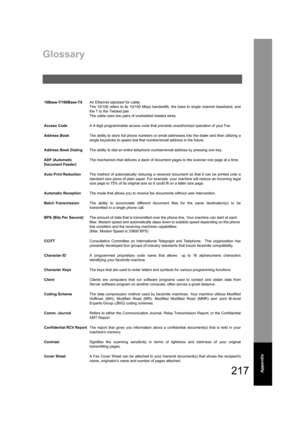

Glossary
10Base-T/100Base-TXAn Ethernet standard for cable.
The 10/100 refers to its 10/100 Mbps bandwidth, the base to single channel baseband, and
the T to the Twisted pair.
The cable uses two pairs of unshielded twisted wires.
Access CodeA 4-digit programmable access code that prevents unauthorized operation of your Fax.
Address BookThe ability to store full phone numbers or email addresses into the dialer and then utilizing a
single keystroke to speed dial that number/email address in...

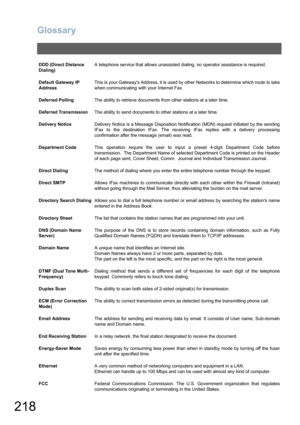

Glossary
218
DDD (Direct Distance
Dialing)A telephone service that allows unassisted dialing, no operator assistance is required.
Default Gateway IP
AddressThis is your Gateways Address, it is used by other Networks to determine which route to take
when communicating with your Internet Fax.
Deferred PollingThe ability to retrieve documents from other stations at a later time.
Deferred TransmissionThe ability to send documents to other stations at a later time.
Delivery NoticeDelivery Notice is a...

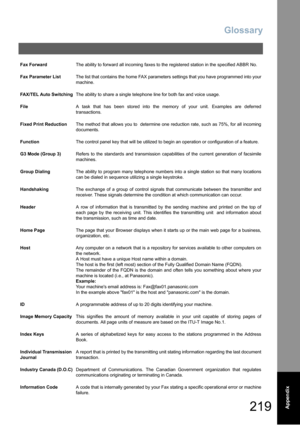

Glossary
219  Appendix
Fax ForwardThe ability to forward all incoming faxes to the registered station in the specified ABBR No.
Fax Parameter ListThe list that contains the home FAX parameters settings that you have programmed into your
machine.
FAX/TEL Auto SwitchingThe ability to share a single telephone line for both fax and voice usage.
FileA task that has been stored into the memory of your unit. Examples are deferred
transactions.
Fixed Print ReductionThe method that allows you to  determine one...

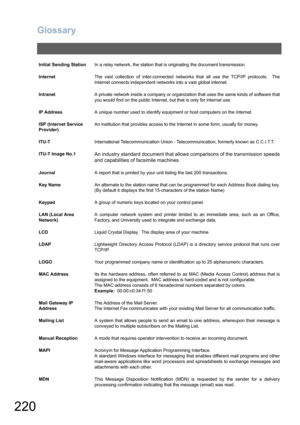

Glossary
220
Initial Sending StationIn a relay network, the station that is originating the document transmission.
InternetThe vast collection of inter-connected networks that all use the TCP/IP protocols.  The
Internet connects independent networks into a vast global internet.
IntranetA private network inside a company or organization that uses the same kinds of software that
you would find on the public Internet, but that is only for internal use.
IP AddressA unique number used to identify equipment or...
