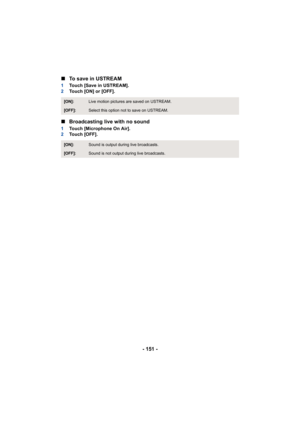

- 151 -
∫
To save in USTREAM
1 Touch [Save in USTREAM].
2 Touch [ON] or [OFF].
∫Broadcasting live with no sound
1 Touch [Microphone On Air].
2 Touch [OFF].
[ON]:Live motion pictures are saved on USTREAM.
[OFF]:Select this option not to save on USTREAM.
[ON]:Sound is output during live broadcasts.
[OFF]:Sound is not output during live broadcasts.

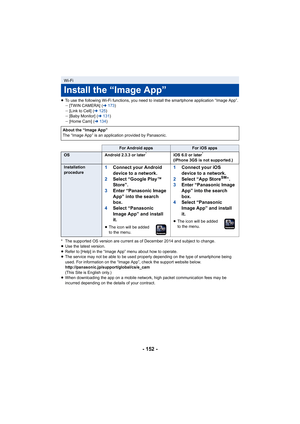

- 152 -
≥To use the following Wi-Fi func tions, you need to install the smartphone application “Image App”.
j [TWIN CAMERA] ( l173 )
j [Link to Cell] ( l125 )
j [Baby Monitor] ( l131 )
j [Home Cam] ( l134 )
* The supported OS version are current as of December 2014 and s ubject to change.
≥ Use the latest version.
≥ Refer to [Help] in the “Image App” menu about how to operate.
≥ The service may not be able to be used properly depending on th e type of smartphone being
used. For information on the “Image...

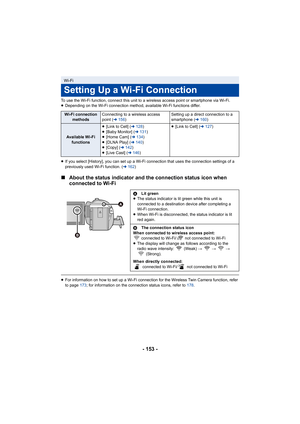

- 153 -
To use the Wi-Fi function, connect this unit to a wireless access point or smartphone via Wi-Fi.
≥ Depending on the Wi-Fi connection method, available Wi-Fi funct ions differ.
≥ If you select [History], you can set up a Wi-Fi connection that  uses the connection settings of a
previously used Wi-Fi function. ( l162)
∫ About the status indicator and the connection status icon when
connected to Wi-Fi
≥For information on how to set up a Wi-Fi connection for the Wir eless Twin Camera function, refer...

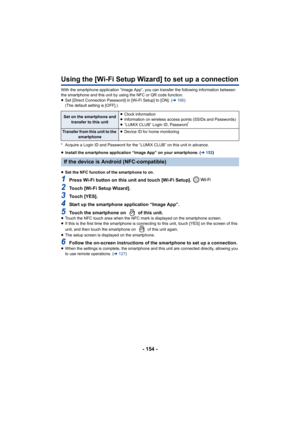

- 154 -
Using the [Wi-Fi Setup Wizard] to set up a connection
With the smartphone application “Image App”, you can transfer t he following information between
the smartphone and this unit by using the NFC or QR code functi on.
≥ Set [Direct Connection Password] in [Wi-Fi Setup] to [ON]. ( l166 )
(The default setting is [OFF].)
* Acquire a Login ID and Password for the “LUMIX CLUB” on this u nit in advance.
≥ Install the smartphone application “Image App” on your smartpho ne. (l152)
≥ Set the NFC...

- 155 -

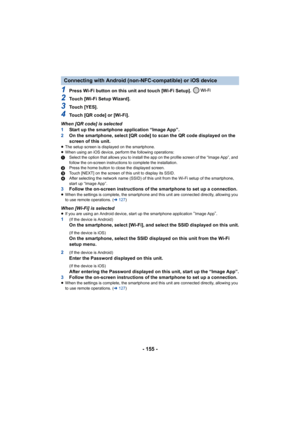

1Press Wi-Fi button on this unit and touch [Wi-Fi Setup].
2Touch [Wi-Fi Setup Wizard].
3Touch [YES].
4Touch [QR code] or [Wi-Fi].
When [QR code] is selected
1 Start up the smartphone application “Image App”.
2 On the smartphone, select [QR code] to scan the QR code display ed on the
screen of this unit.
≥ The setup screen is displayed on the smartphone.
≥ When using an iOS device, perform the following operations:
1 Select the option that allows you to install the app on the pro file screen of...

- 156 -

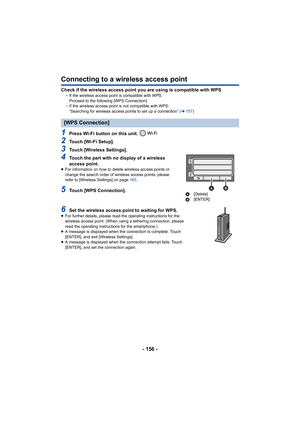

Connecting to a wireless access point
Check if the wireless access point you are using is compatible with WPSjIf the wireless access poin t is compatible with WPS:
Proceed to the following [WPS Connection]
j If the wireless access point is not compatible with WPS:
“Searching for wireless access points to set up a connection” ( l157 )
1Press Wi-Fi button on this unit.
2Touch [Wi-Fi Setup].
3Touch [Wireless Settings].
4Touch the part with no display of a wireless
access point.
≥For information on...

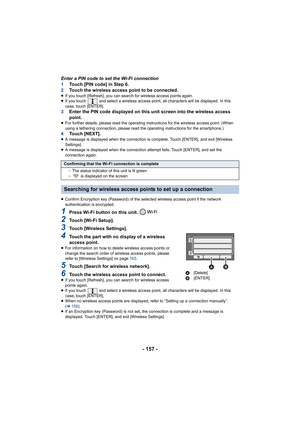

- 157 -
Enter a PIN code to set the Wi-Fi connection
1Touch [PIN code] in Step 6.
2 Touch the wireless access point to be connected.
≥If you touch [Refresh], you can search for wireless access poin ts again.
≥ If you touch   and select a wireless access point, all character s will be displayed. In this
case, touch [ENTER].
3 Enter the PIN code displayed on this unit screen into the wirel ess access
point.
≥ For further details, please read the operating instructions for  the wireless access point....

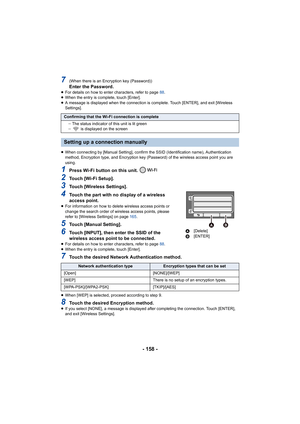

- 158 -
7(When there is an Encryption key (Password))Enter the Password.≥For details on how to enter characters, refer to page  88.
≥ When the entry is complete, touch [Enter].
≥ A message is displayed when the connection is complete. Touch [ ENTER], and exit [Wireless
Settings].
≥ When connecting by [Manual Setting], confirm the SSID (Identifi cation name), Authentication
method, Encryption type, and Encryption key (Password) of the w ireless access point you are
using.
1Press Wi-Fi button on this...

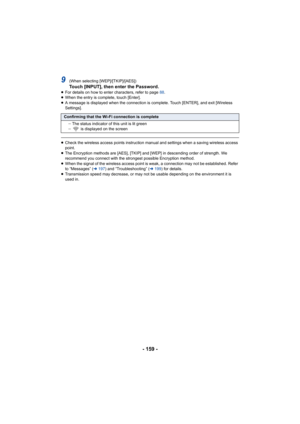

- 159 -
9(When selecting [WEP]/[TKIP]/[AES])Touch [INPUT], then enter the Password.≥For details on how to enter characters, refer to page  88.
≥ When the entry is complete, touch [Enter].
≥ A message is displayed when the connection is complete. Touch [ ENTER], and exit [Wireless
Settings].
≥ Check the wireless access points instruction manual and setting s when a saving wireless access
point.
≥ The Encryption methods are [AES], [TKIP] and [WEP] in descendin g order of strength. We
recommend you...

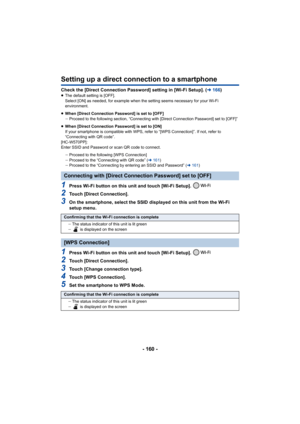

- 160 -
Setting up a direct connection to a smartphone
Check the [Direct Connection Password] setting in [Wi-Fi Setup]. (l 166 )≥The default setting is [OFF].
Select [ON] as needed, for example when the setting seems neces sary for your Wi-Fi
environment.
≥ When [Direct Connection Password] is set to [OFF]
jProceed to the following section, “Connecting with [Direct Conn ection Password] set to [OFF]”
≥ When [Direct Connection Password] is set to [ON]
If your smartphone is compatible with WPS, refer to...
