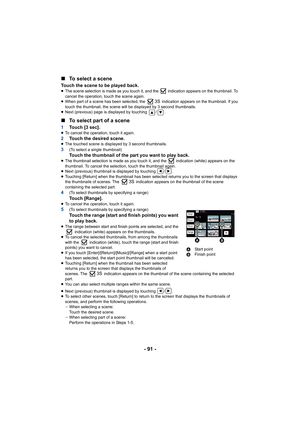

- 91 -
∫
To select a scene
Touch the scene to be played back.≥The scene selection is made as you touch it, and the   indicatio n appears on the thumbnail. To
cancel the operation, touch the scene again.
≥ When part of a scene has been selected, the   indication appears  on the thumbnail. If you
touch the thumbnail, the scene will be displayed by 3 second th umbnails.
≥ Next (previous) page is displayed by touching  / .
∫ To select part of a scene
1 Touch [3 sec].≥To cancel the operation, touch it...

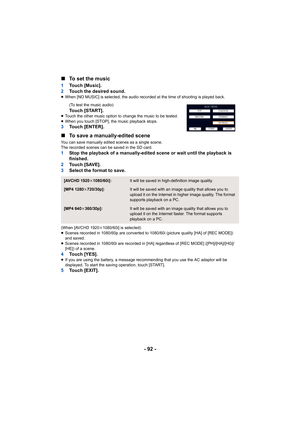

- 92 -
∫
To set the music
1 Touch [Music].
2 Touch the desired sound.
≥When [NO MUSIC] is selected, the audio recorded at the time of  shooting is played back.
(To test the music audio)
Touch [START].≥ Touch the other music option to  change the music to be tested.
≥ When you touch [STOP], the music playback stops.
3 Touch [ENTER].
∫To save a manually-edited scene
You can save manually edited scenes as a single scene.
The recorded scenes can be saved in the SD card.
1 Stop the playback of a...

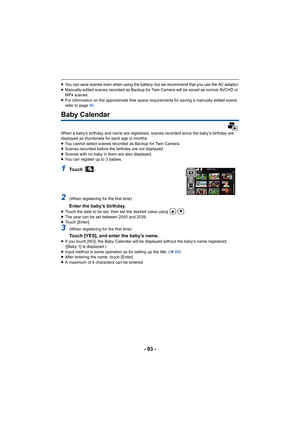

- 93 -
≥You can save scenes even when using the battery, but we recommend that you use the AC adaptor.≥Manually-edited scenes recorded as Backup for Twin Camera will  be saved as normal AVCHD or
MP4 scenes.
≥ For information on the approximate free space requirements for  saving a manually edited scene,
refer to page  90.
Baby Calendar
When a baby’s birthday and name are registered, scenes recorded  since the baby’s birthday are
displayed as thumbnails for each age in months.
≥ You cannot select...

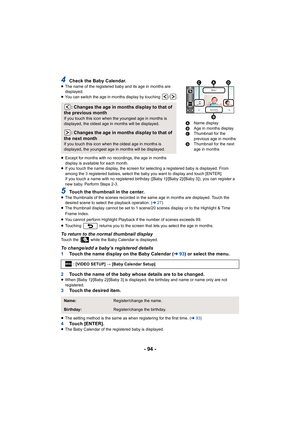

- 94 -
4Check the Baby Calendar.≥The name of the registered baby  and its age in months are
displayed.
≥ You can switch the age in months display by touching  / .
≥ Except for months with no recordings, the age in months
display is available for each month.
≥ If you touch the name display, the screen for selecting a regis tered baby is displayed. From
among the 3 registered babies, select the baby you want to disp lay and touch [ENTER].
If you touch a name with no registered birthday ([Baby 1]/[Baby...

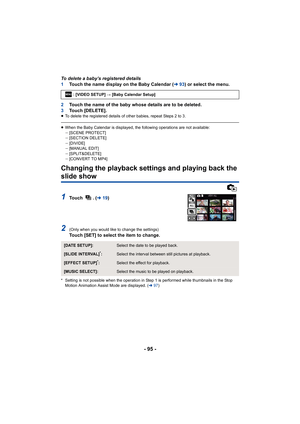

- 95 -
To delete a baby’s registered details
1Touch the name display on the Baby Calendar ( l93) or select the menu.
2 Touch the name of the baby whose details are to be deleted.
3 Touch [DELETE].
≥To delete the registered details of other babies, repeat Steps  2 to 3.
≥When the Baby Calendar is displayed, the following operations are not available:
j[SCENE PROTECT]
j [SECTION DELETE]
j [DIVIDE]
j [MANUAL EDIT]
j [SPLIT&DELETE]
j [CONVERT TO MP4]
Changing the playback settings and playing back the
slide...

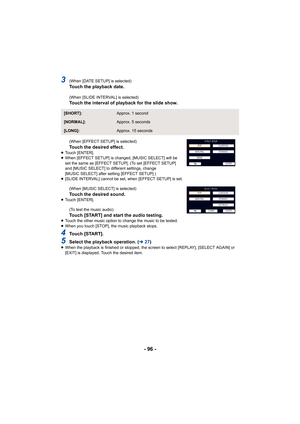

- 96 -
3(When [DATE SETUP] is selected)Touch the playback date.
(When [SLIDE INTERVAL] is selected)Touch the interval of playback for the slide show.
(When [EFFECT SETUP] is selected)
Touch the desired effect.≥Touch [ENTER].
≥ When [EFFECT SETUP] is changed, [MUSIC SELECT] will be
set the same as [EFFECT SETUP]. (To set [EFFECT SETUP]
and [MUSIC SELECT] to different settings, change
[MUSIC SELECT] after setting [EFFECT SETUP].)
≥ [SLIDE INTERVAL] cannot be set, when [EFFECT SETUP] is set.
(When [MUSIC...

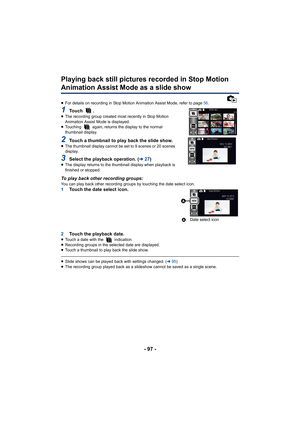

- 97 -
Playing back still pictures recorded in Stop Motion
Animation Assist Mode as a slide show
≥For details on recording in Stop Motion Animation Assist Mode,  refer to page 56.
1To u c h   .≥The recording group created most recently in Stop Motion
Animation Assist Mode is displayed.
≥ Touching   again, returns the display to the normal
thumbnail display.
2Touch a thumbnail to play back the slide show.≥The thumbnail display cannot be set to 9 scenes or 20 scenes
display.
3Select the playback...

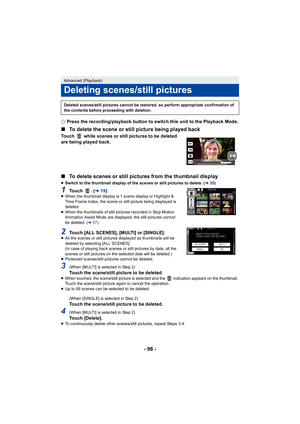

- 98 -
¬Press the recording/playback button to switch this unit to the  Playback Mode.
∫To delete the scene or still picture being played back
Touch   while scenes or still pictures to be deleted
are being played back.
∫To delete scenes or still pictures from the thumbnail display
≥Switch to the thumbnail display of the scenes or still pictures  to delete. (l26)
1To u c h   .   ( l19)≥When the thumbnail display is 1 scene display or Highlight &
Time Frame Index, the scene or still picture being...

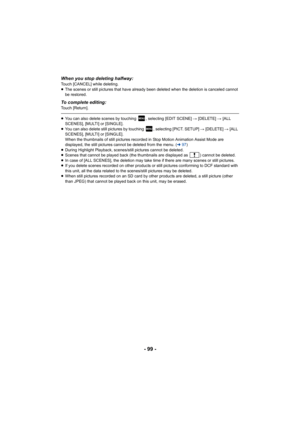

- 99 -
When you stop deleting halfway:Touch [CANCEL] while deleting.
≥The scenes or still pictures that have already been deleted whe n the deletion is canceled cannot
be restored.
To complete editing:Touch [Return].
≥ You can also delete scenes by touching  , selecting [EDIT SCENE]  # [DELETE]  # [ALL
SCENES], [MULTI] or [SINGLE].
≥ You can also delete still pictures by touching  , selecting [PIC T.   S E T U P ]  # [DELETE] # [ALL
SCENES], [MULTI] or [SINGLE].
When the thumbnails of still pictures...

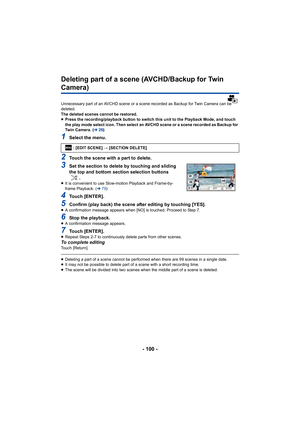

- 100 -
Deleting part of a scene (AVCHD/Backup for Twin
Camera)
Unnecessary part of an AVCHD scene or a scene recorded as Backup for Twin Camera can be
deleted.
The deleted scenes cannot be restored.
≥Press the recording/playback button to switch this unit to the Playback Mode, and touch
the play mode select icon. Then select an AVCHD scene or a scen e recorded as Backup for
Twin Camera. ( l26)
1Select the menu.
2Touch the scene with a part to delete.
3Set the section to delete by touching and...
