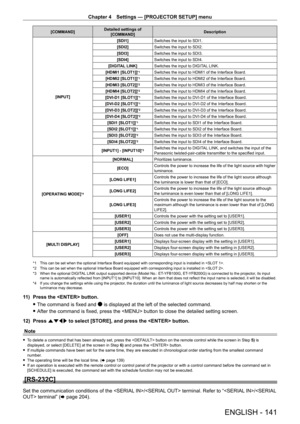

Panasonic Projector PT-RQ13K User Manual

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 141
[COMMAND]Detailed settings of
[COMMAND] Description
[INPUT] [SDI1]
Switches the input to SDI1.
[SDI2] Switches the input to SDI2.
[SDI3] Switches the input to SDI3.
[SDI4] Switches the input to SDI4.
[DIGITAL LINK] Switches the input to DIGITAL LINK.
[HDMI1 [SLOT1]]
*1Switches the input to HDMI1 of the Interface Board.
[HDMI2 [SLOT1]]
*1Switches the input to HDMI2 of the Interface Board.
[HDMI3 [SLOT2]]
*2Switches the input to HDMI3 of the...

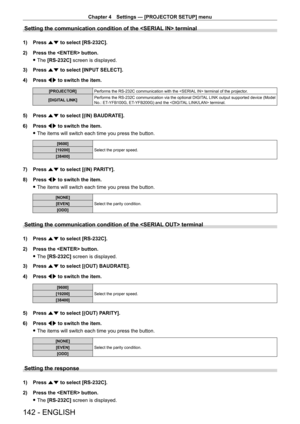

Chapter 4 Settings — [PROJECTOR SETUP] menu
142 - ENGLISH
Setting the communication condition of the  terminal
1) Press as to select [RS-232C].
2)
Press the  button.
 fThe

[RS-232C] screen is displayed.
3)

Press
 as to select [INPUT SELECT].
4)

Press
 qw to switch the item.
[PROJECTOR] Performs the RS - 232C communication with the  terminal of the projector.
[DIGITAL LINK] Performs the RS
- 232C communication via the optional DIGITAL LINK output supported device (Model
No.: ET
-

YFB100G, ET...

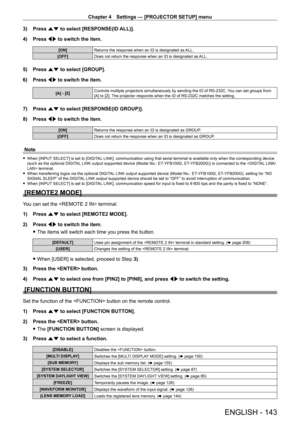

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 143
3) Press as to select [RESPONSE(ID ALL)].
4)
Press
 qw to switch the item.
[ON] Returns the response when an ID is designated as ALL.
[OFF] Does not return the response when an ID is designated as ALL.
5) Press as to select [GROUP].
6)
Press
 qw to switch the item.
[A] - [Z] Controls multiple projectors simultaneously by sending the ID of RS - 232C. You can set groups from
[A] to [Z]. The projector responds when the ID of RS - 232C matches...

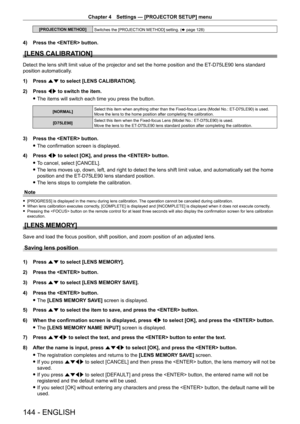

Chapter 4 Settings — [PROJECTOR SETUP] menu
144 - ENGLISH
[PROJECTION METHOD]Switches the [PROJECTION METHOD] setting. ( x
  page   128)
4) Press the  button.
[LENS CALIBRATION]
Detect the lens shift limit value of the projector and set the home position and the ET-D75LE90 lens standard
position automatically.
1)

Press
 as to select [LENS CALIBRATION].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Select this item when anything other than the...

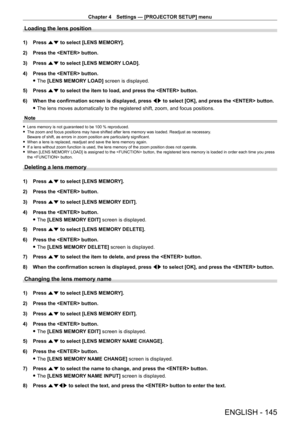

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 145
Loading the lens position
1) Press as to select [LENS MEMORY].
2)
Press the  button.
3)


Press
 as to select [LENS MEMORY LOAD].
4)

Press the  button.
 fThe

[LENS MEMORY LOAD] screen is displayed.
5)

Press
 as to select the item to load, and press the  button.
6)

When the confirmation screen is displayed, press  qw

 to select [OK], and press the  button.
 fThe lens moves automatically to the registered shift, zoom, and focus...

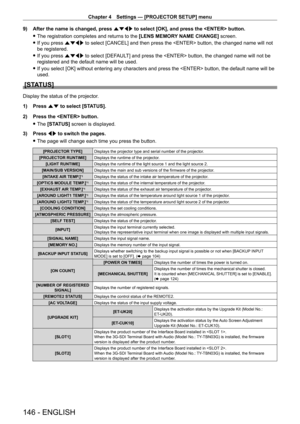

Chapter 4 Settings — [PROJECTOR SETUP] menu
146 - ENGLISH
9) After the name is changed, press asqw to select [OK], and press the  button.
 fThe registration completes and returns to the  [LENS MEMOR

Y NAME CHANGE] screen.
 fIf you press

asqw to select [CANCEL] and then press the  button, the changed name will not
be registered.
 f If you press

asqw to select [DEFAULT] and press the  button, the changed name will not be
registered and the default name will be used.
 f If you select [OK] without...

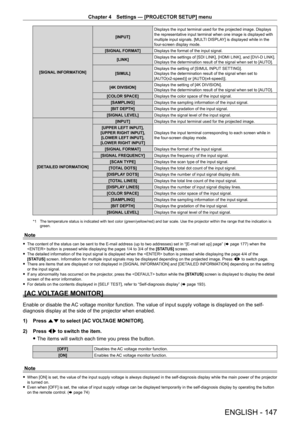

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 147
[SIGNAL INFORMATION][INPUT]
Displays the input terminal used for the projected image. Displays
the representative input terminal when one image is displayed with
multiple input signals. [MULTI DISPLAY] is displayed while in the
four-screen display mode.
[SIGNAL FORMAT] Displays the format of the input signal.
[LINK] Displays the settings of [SDI LINK], [HDMI LINK], and [DVI-D LINK].
Displays the determination result of the signal when set to...

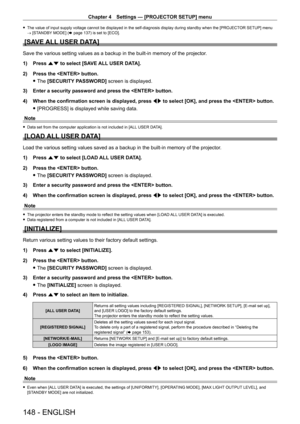

Chapter 4 Settings — [PROJECTOR SETUP] menu
148 - ENGLISH
 fThe value of input supply voltage cannot be displayed in the self-diagnosis display during standby when the [PROJECT OR SETUP] menu
→  [STANDBY MODE] (x   page   137) is set to [ECO].
[SAVE ALL USER DATA]
Save the various setting values as a backup in the built-in memory of the projector .
1)
Press
 as to select [SAVE ALL USER DATA].
2)

Press the  button.
 fThe

[SECURITY PASSWORD] screen is displayed.
3)

Enter a security password and...

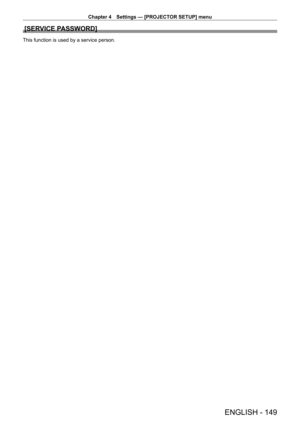

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 149
[SERVICE PASSWORD]
This function is used by a service person.

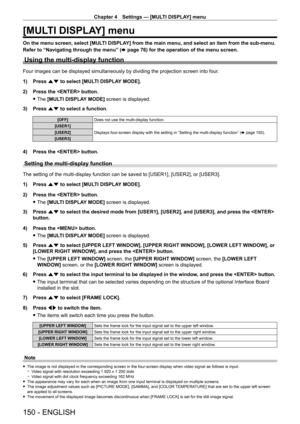

Chapter 4 Settings — [MULTI DISPLAY] menu
150 - ENGLISH
[MULTI DISPLAY] menu
On the menu screen, select [MULTI DISPLAY] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   76) for the operation of the menu screen.
Using the multi-display function
Four images can be displayed simultaneously by dividing the projection screen into four .
1)
Press
 as to select [MULTI DISPLAY MODE].
2)

Press the  button.
 fThe

[MULTI DISPLAY MODE] screen is...
